Installation Procedure

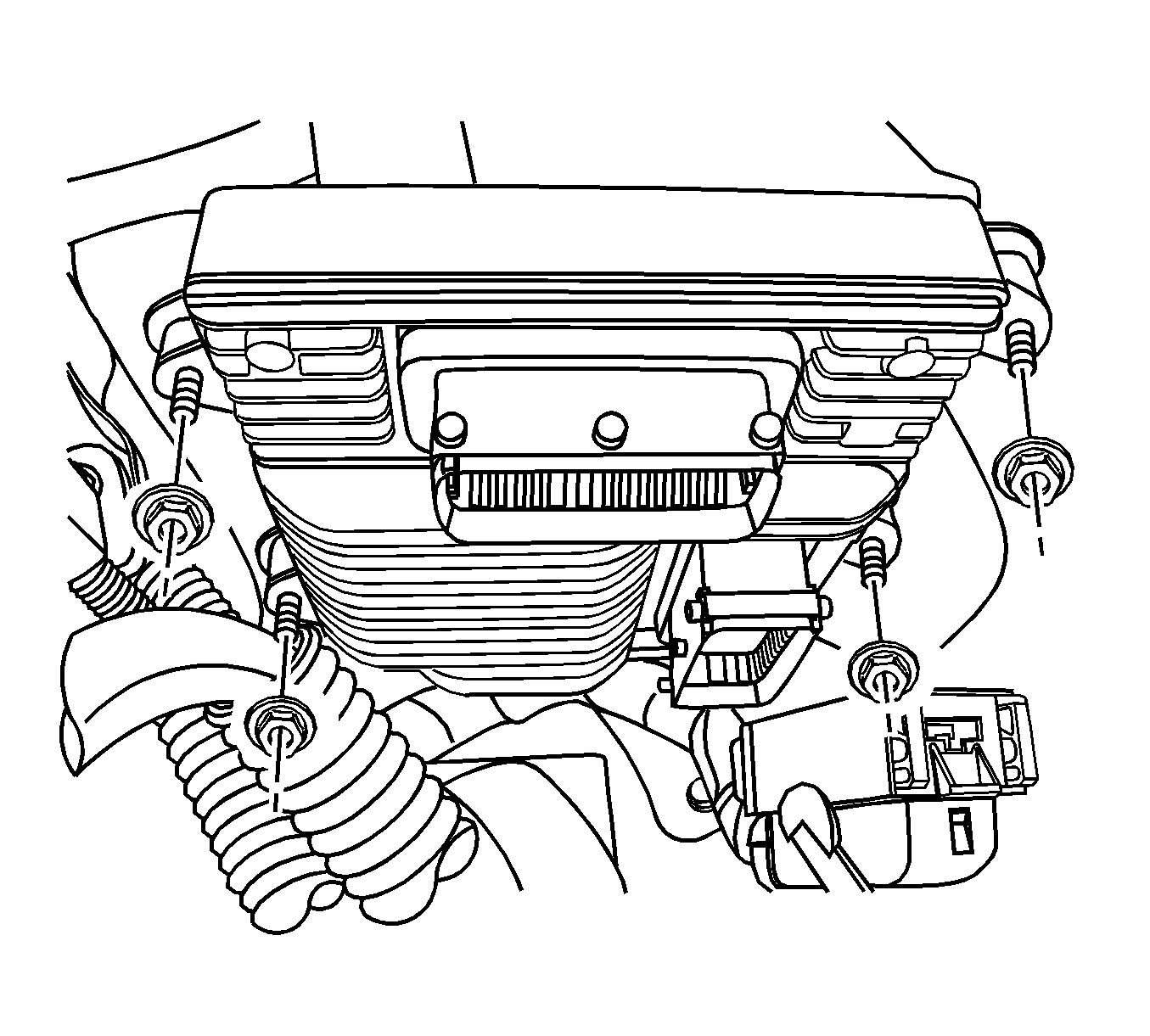

    Fig 1: View Of Engine Control Module Nuts
    GM1915858Courtesy of GENERAL MOTORS CORP.
  1. Position the ECM in place.
    2. NOTE: Refer to Fastener Notice .
  2. Install the ECM to the ECM mount and install the retaining bolts.

    Tighten:  Tighten the ECM retaining bolts to 4 N.m (35 lb in).

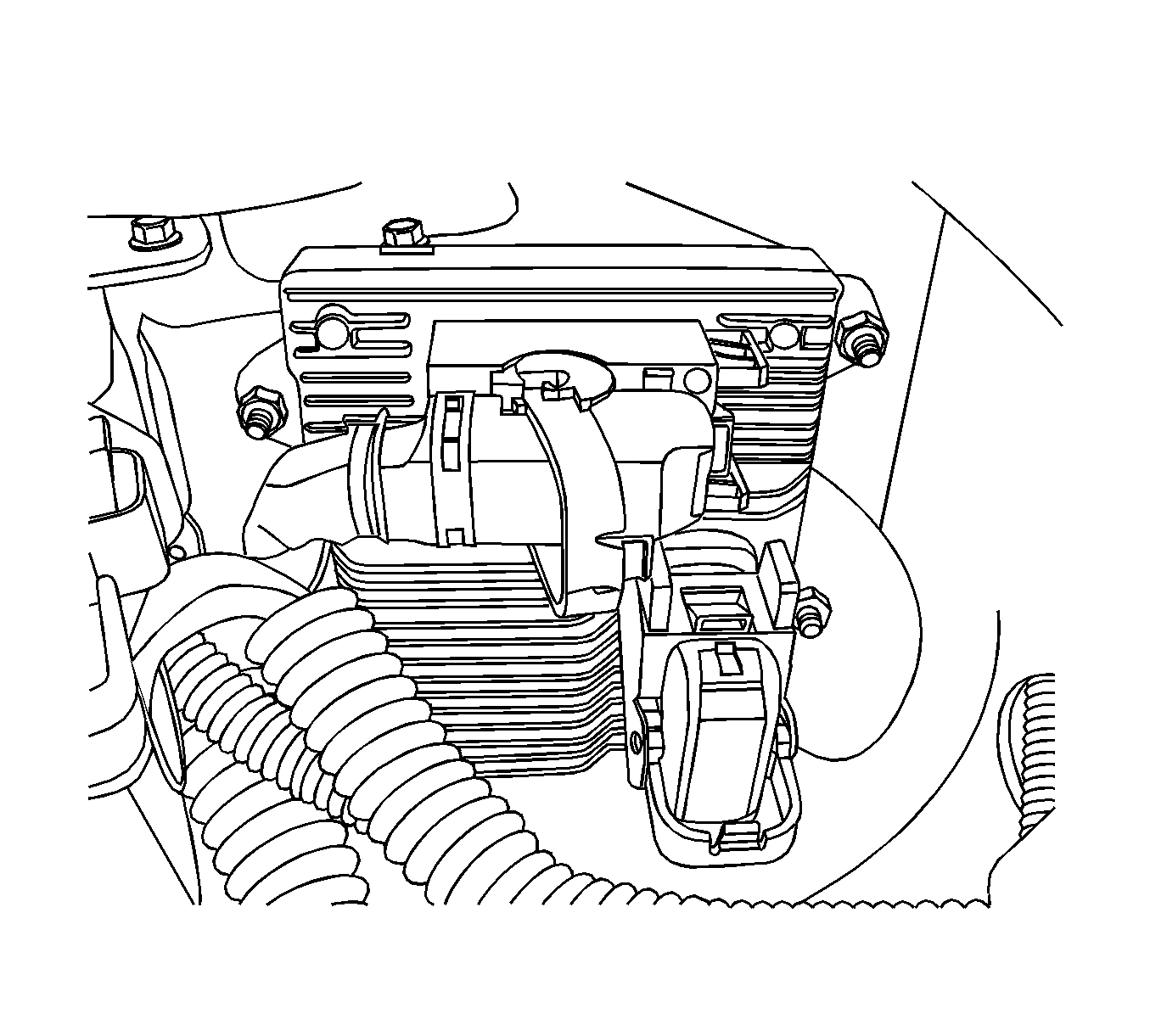

    3. Fig 2: View Of Engine Control Module
    GM1915851Courtesy of GENERAL MOTORS CORP.
  3. Connect the ECM connectors.
  4. Connect the negative battery cable.
  5. Perform the following procedures:
  6. Refer to Control Module References for programming and setup information.
