Installation Procedure

Fig 1: Identifying Battery Box Mounting Bolts

Courtesy of SUZUKI OF AMERICA CORP.

Position the battery box on the battery tray.
CAUTION: Refer to FASTENER NOTICE .
Install the battery box mounting bolts.
Tightening torque

Tighten the bolts to 20 N.m (15 lb ft).

Fig 2: Identifying Battery Vent Tube
Courtesy of SUZUKI OF AMERICA CORP.
Install the battery vent tube from the battery box.
Install the battery. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION .

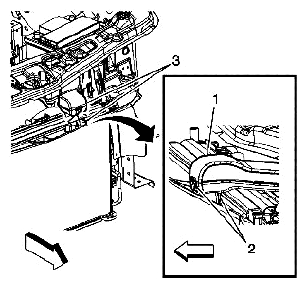

Fig 3: Installing Battery Vent Tube To Upper Radiator Air Deflector
Courtesy of SUZUKI OF AMERICA CORP.
Lock clips (2) from the battery vent tube (1).
Install the battery vent tube (1) to the upper radiator air deflector (3).
