Transmission Control Module Removal

Reference: INPUT AND OUTPUT SPEED SENSOR REMOVAL

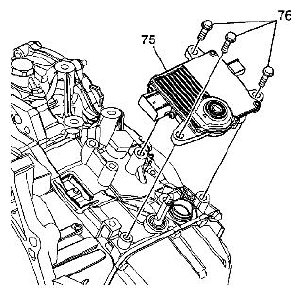

Fig 1: Identifying Transmission Control Module Bolts
G05469990Courtesy of SUZUKI OF AMERICA CORP.
  1. Remove the three TCM bolts (76).
  2. Remove the TCM (75) by sliding off of the manual shaft detent lever assembly.
