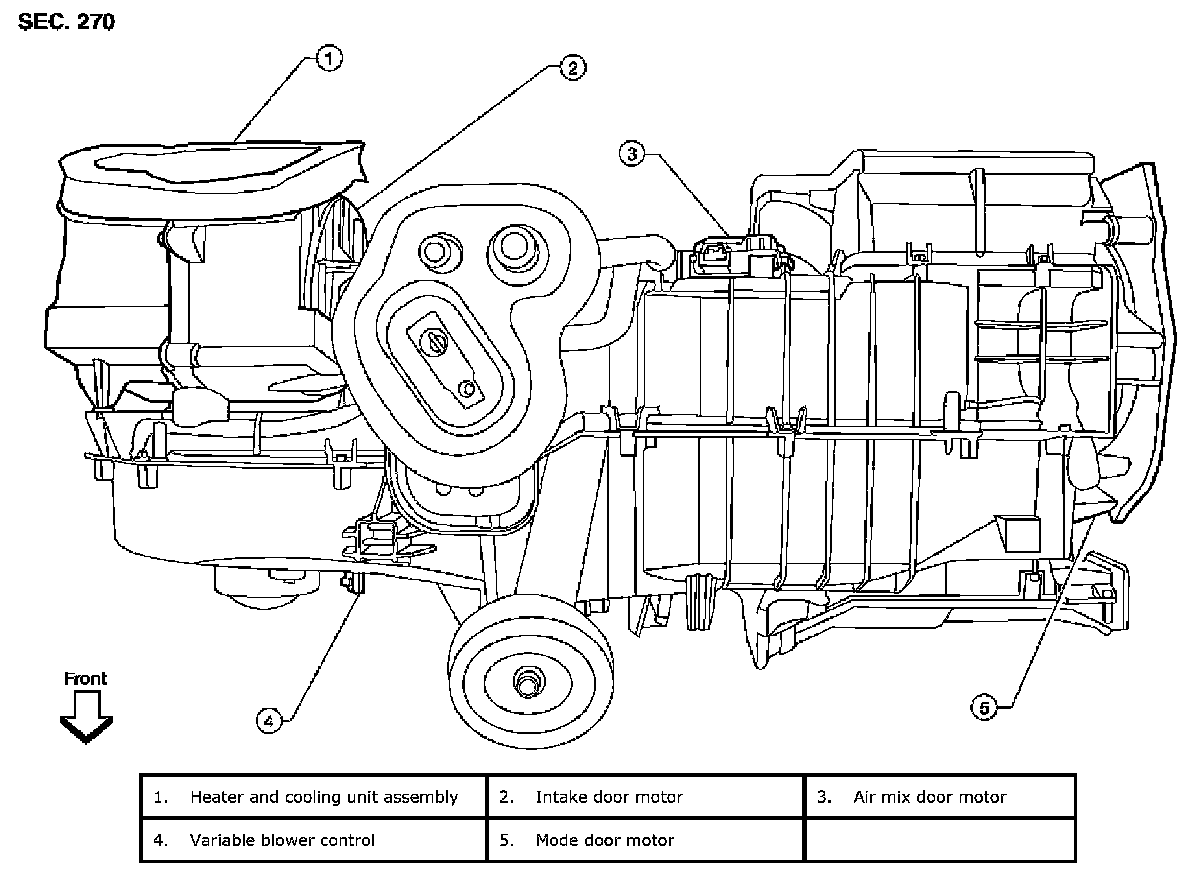

Variable Blower Control

Variable Blower Control: Removal and Installation

Variable Blower Control:






REMOVAL

1. Disconnect the variable blower control electrical connector.
2. Remove the two screws and remove the variable blower control.

INSTALLATION
Installation is in the reverse order of removal.
