IPDM E/R (Intelligent Power Distribution Module Engine Room)

ECU Diagnosis: IPDM E/R (Intelligent Power Distribution Module Engine Room)

Reference Value

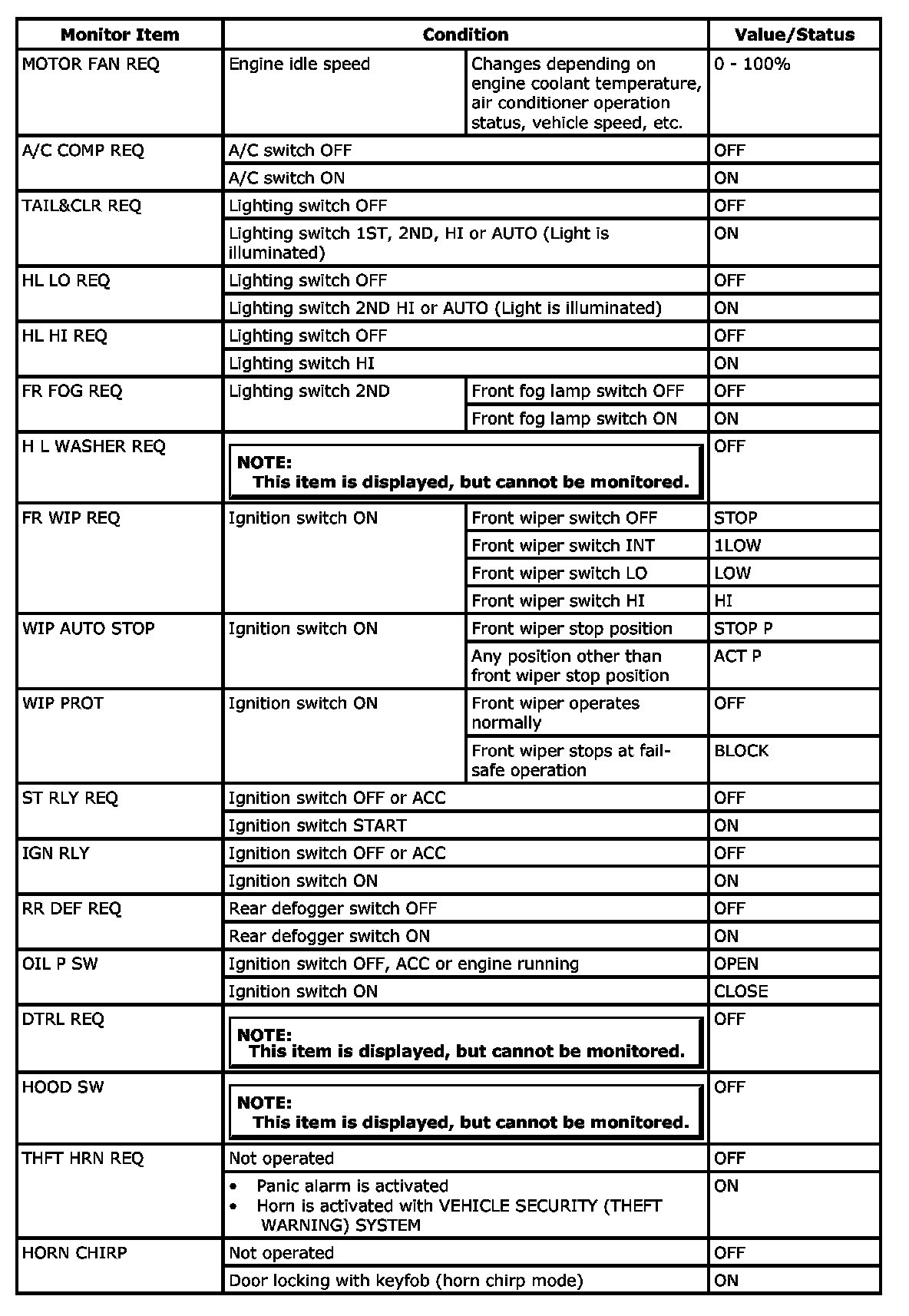

VALUES ON THE DIAGNOSIS TOOL

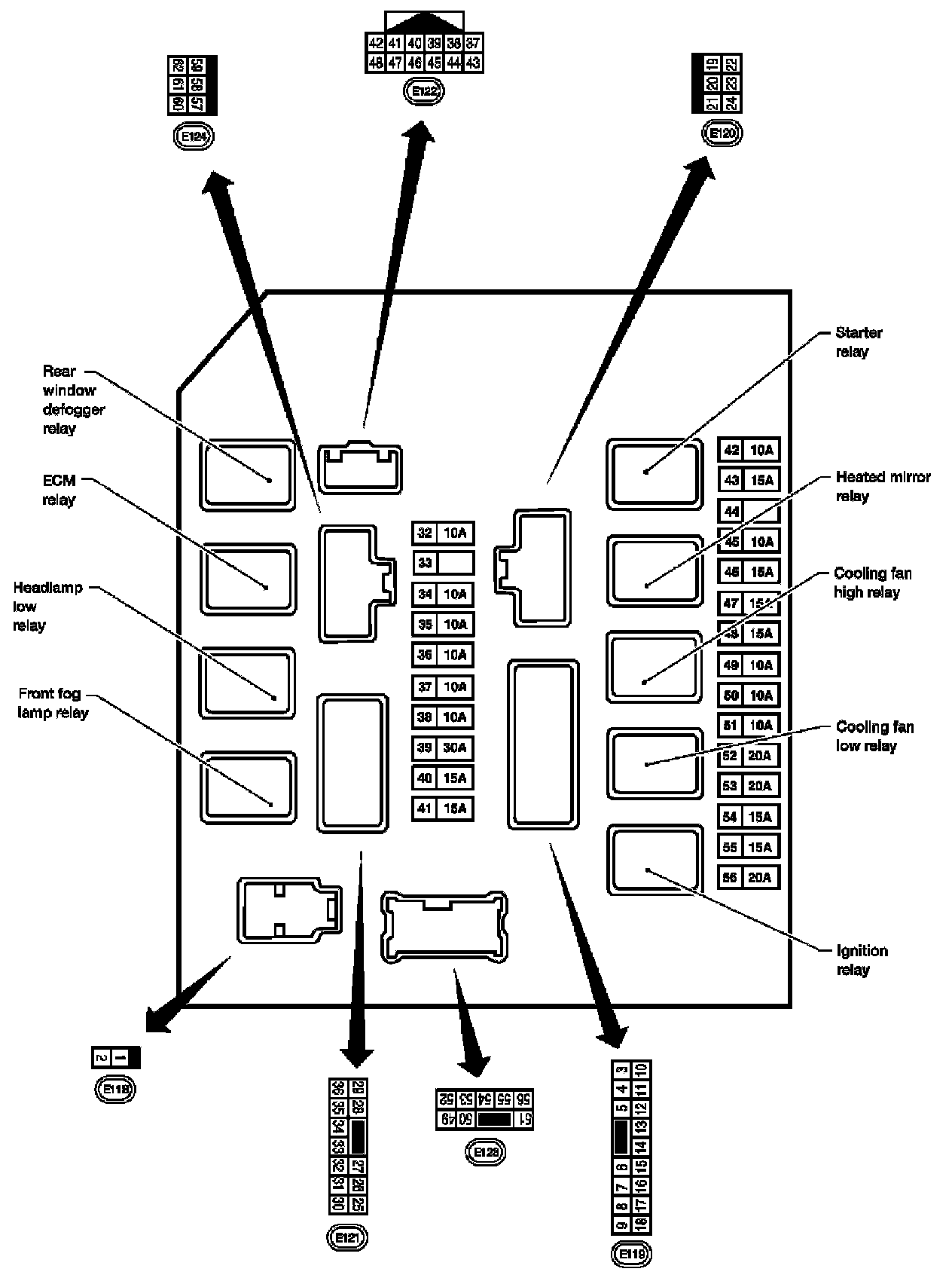

Terminal Layout

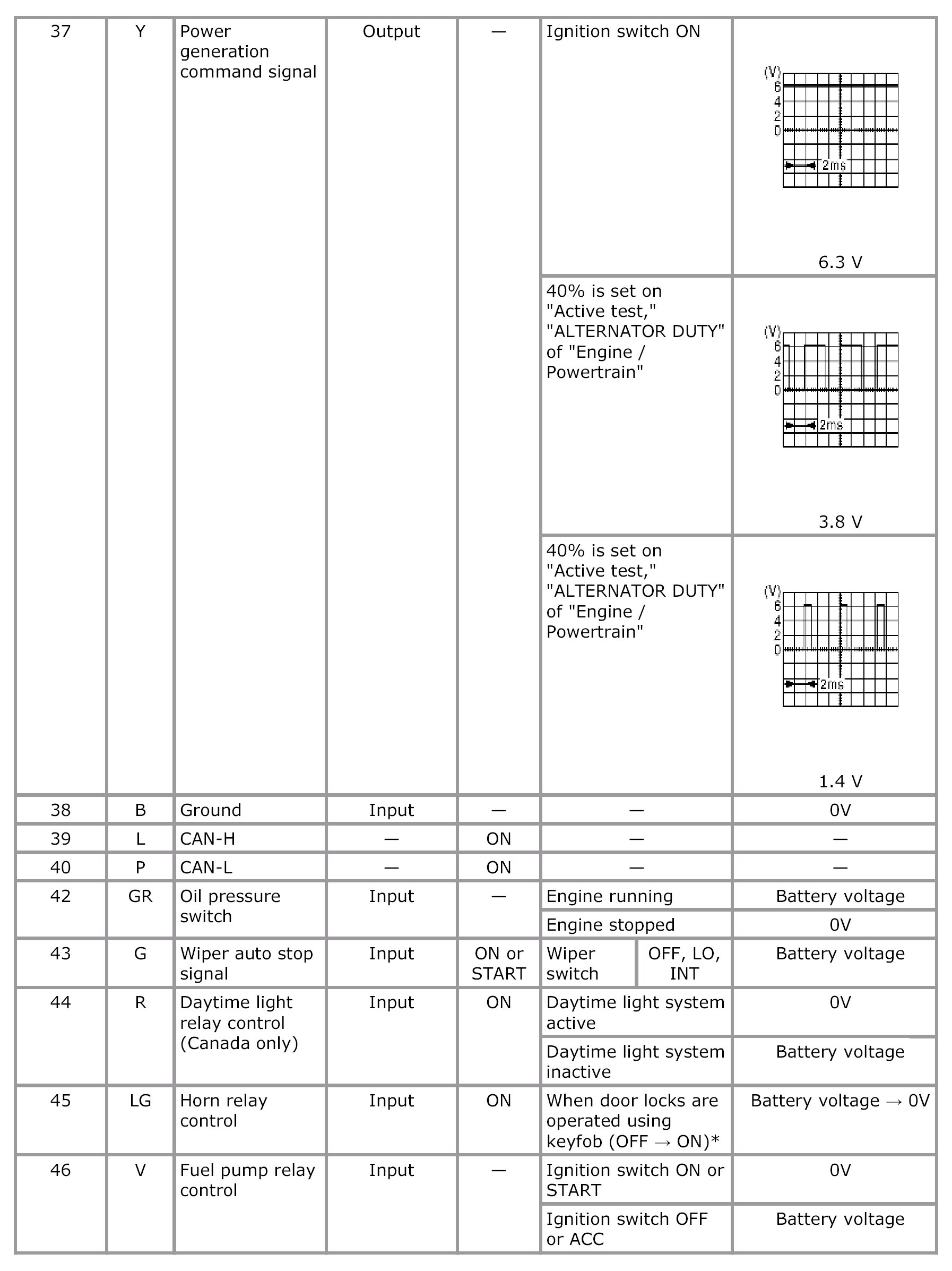

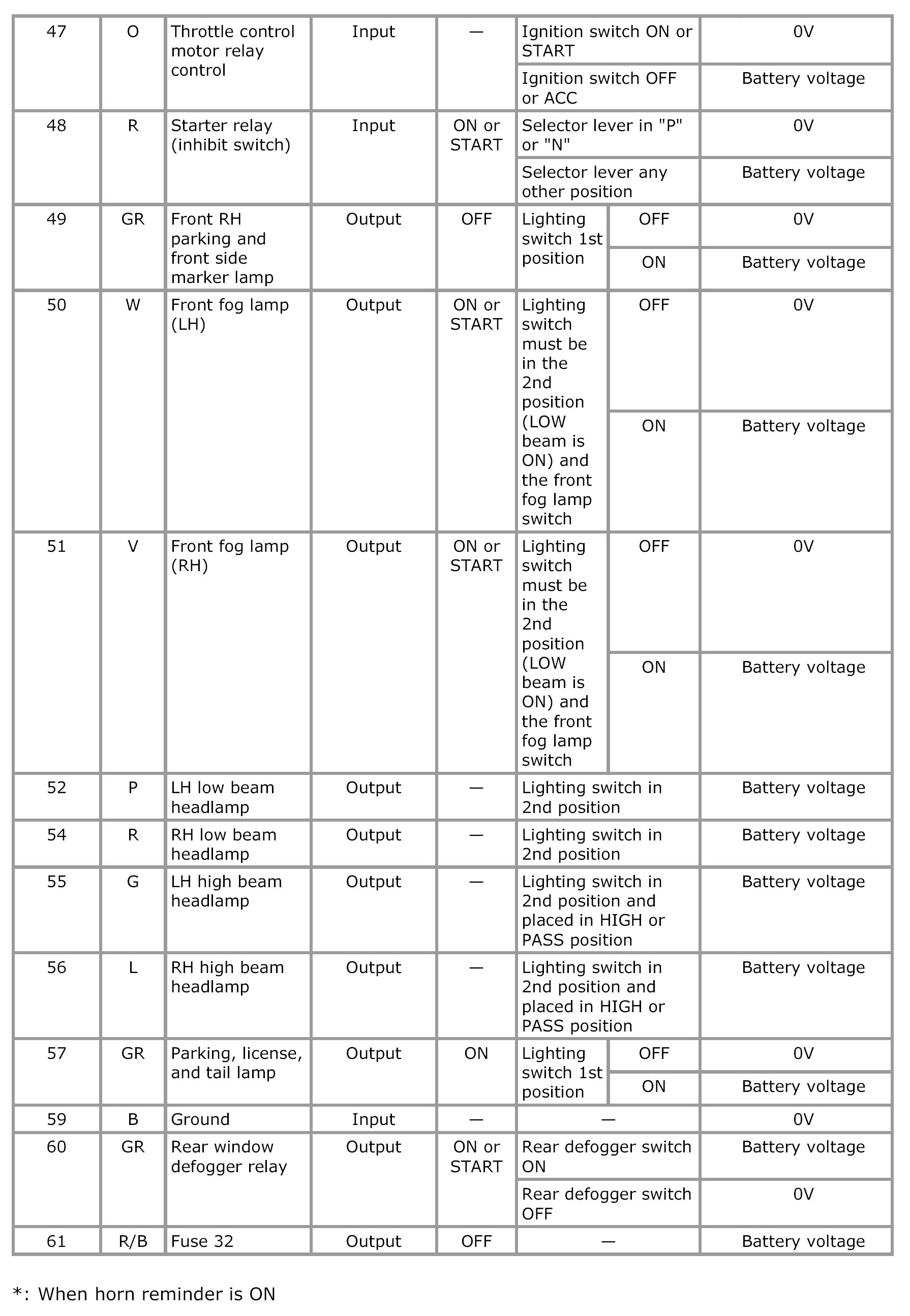

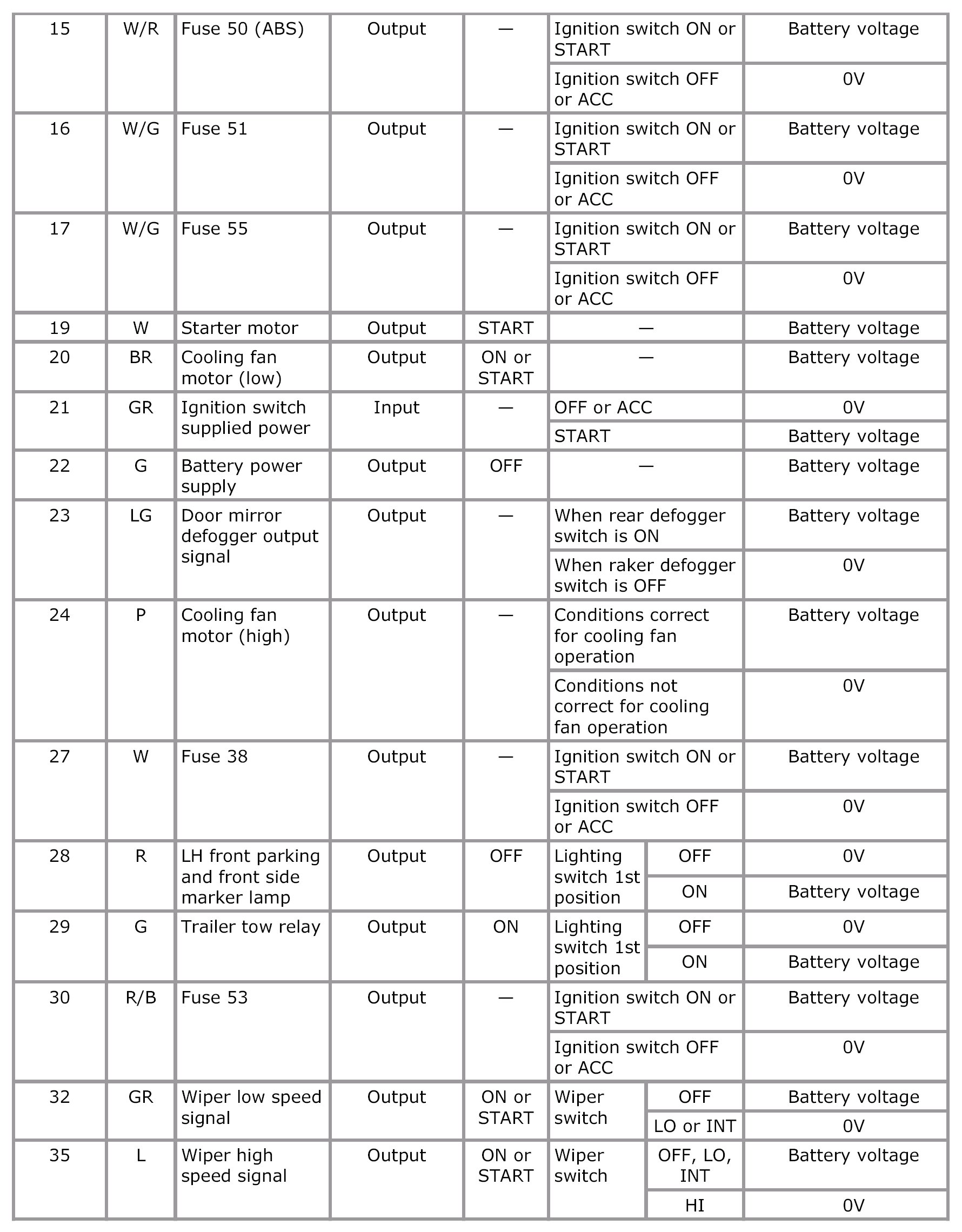

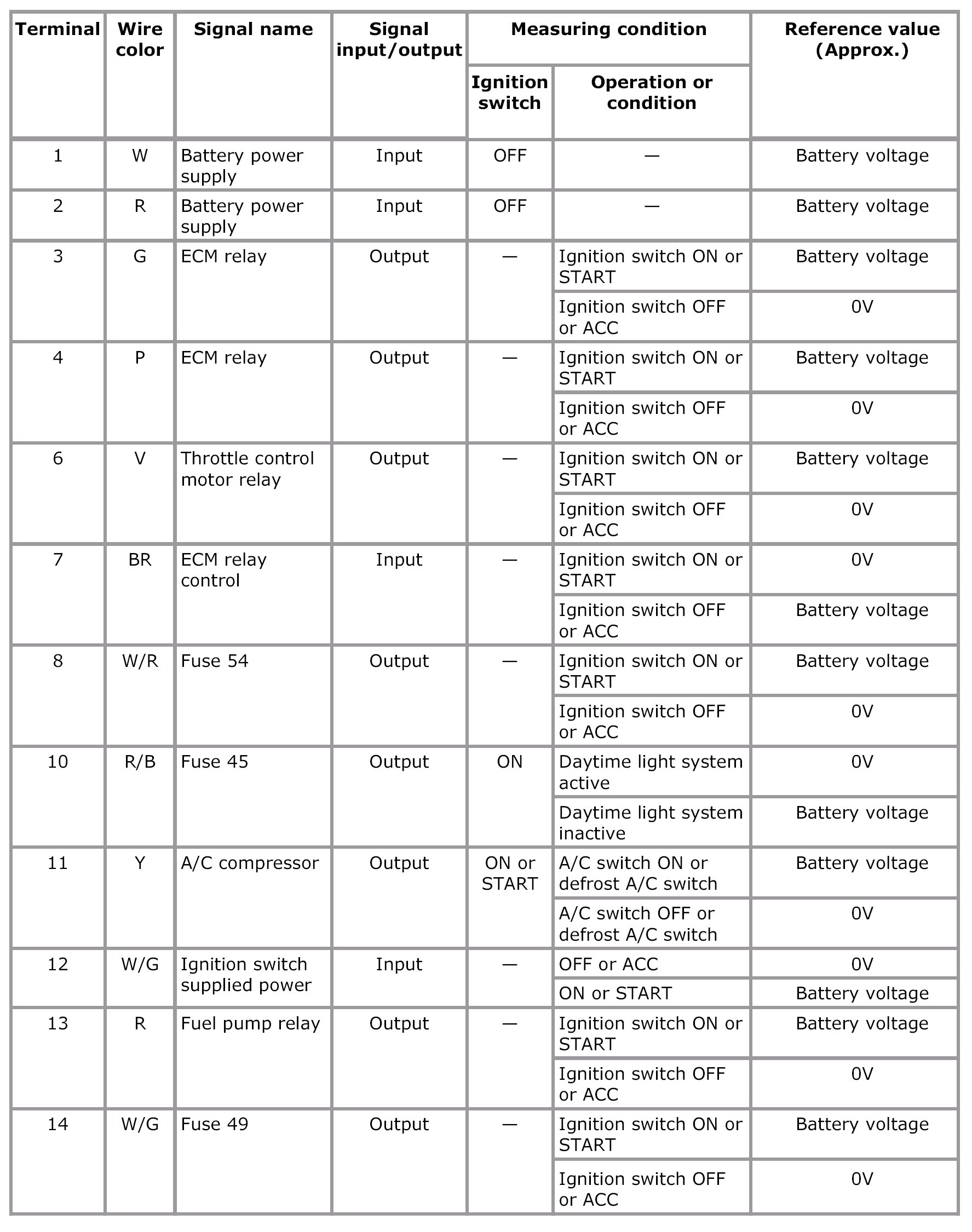

Physical Values
