Control Module, Transfer Case

Transfer Control Unit: Wiring Diagram

Part Time 4WD System

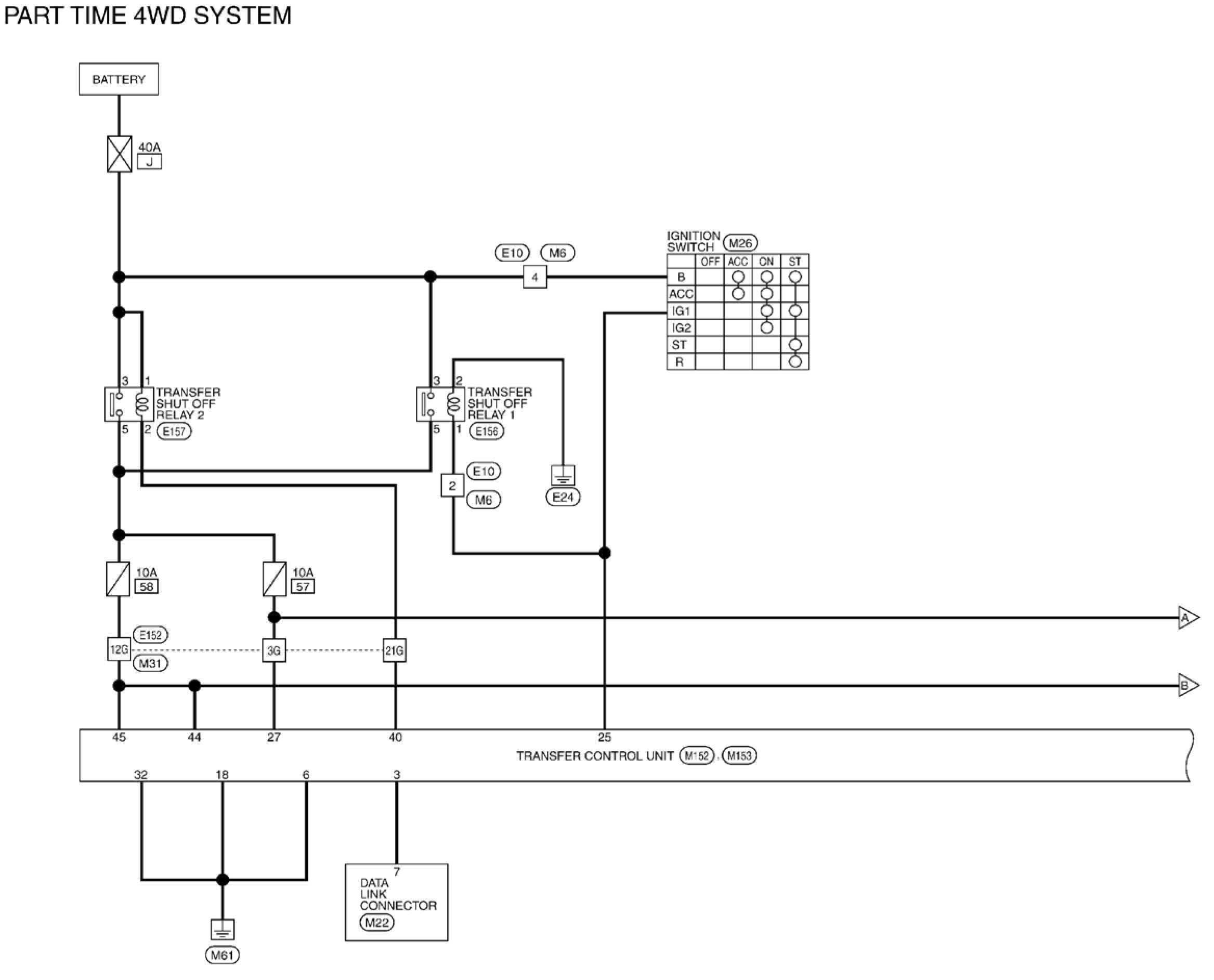

Part Time System (Part 1):

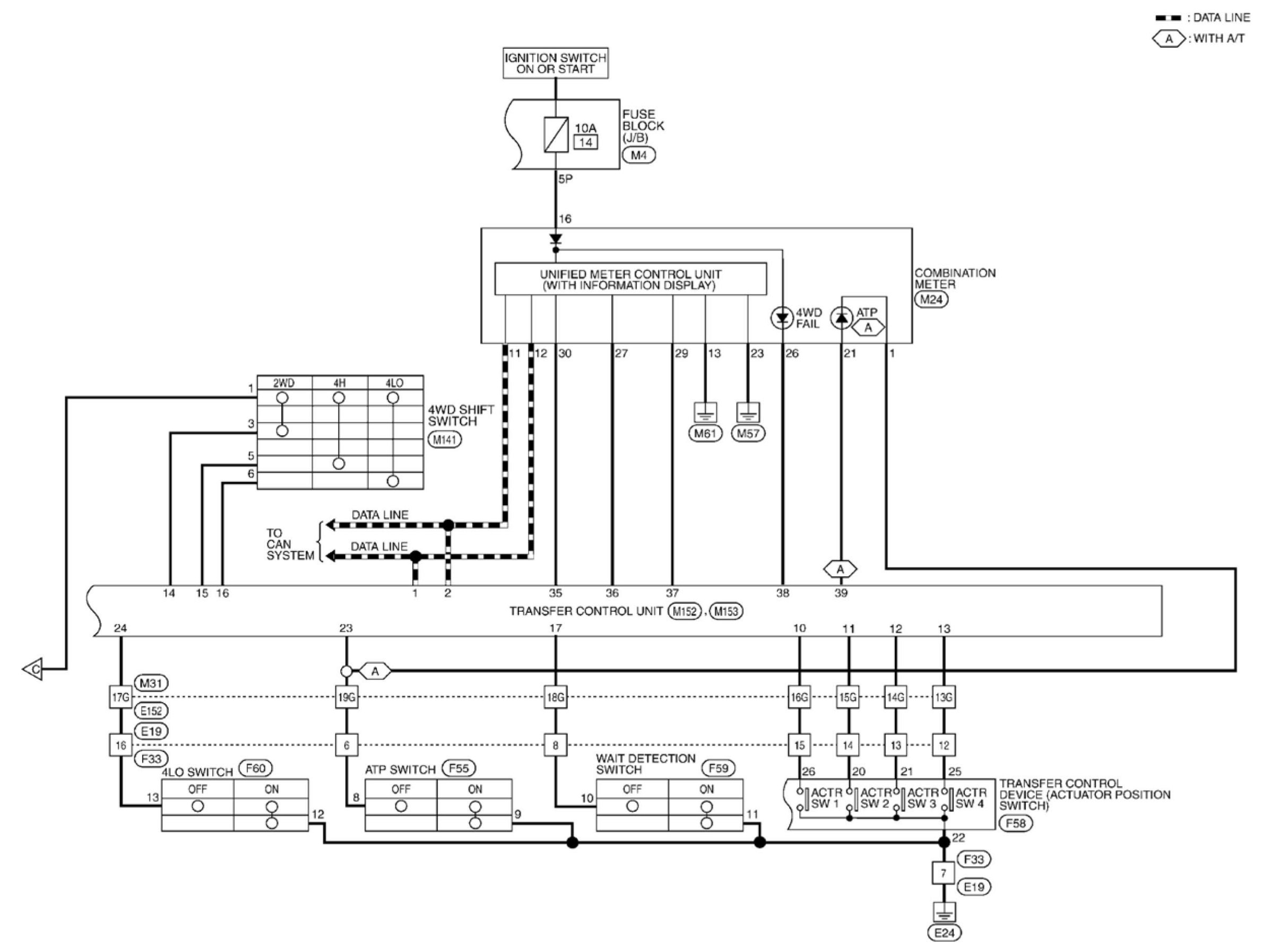

Part Time System (Part 2):

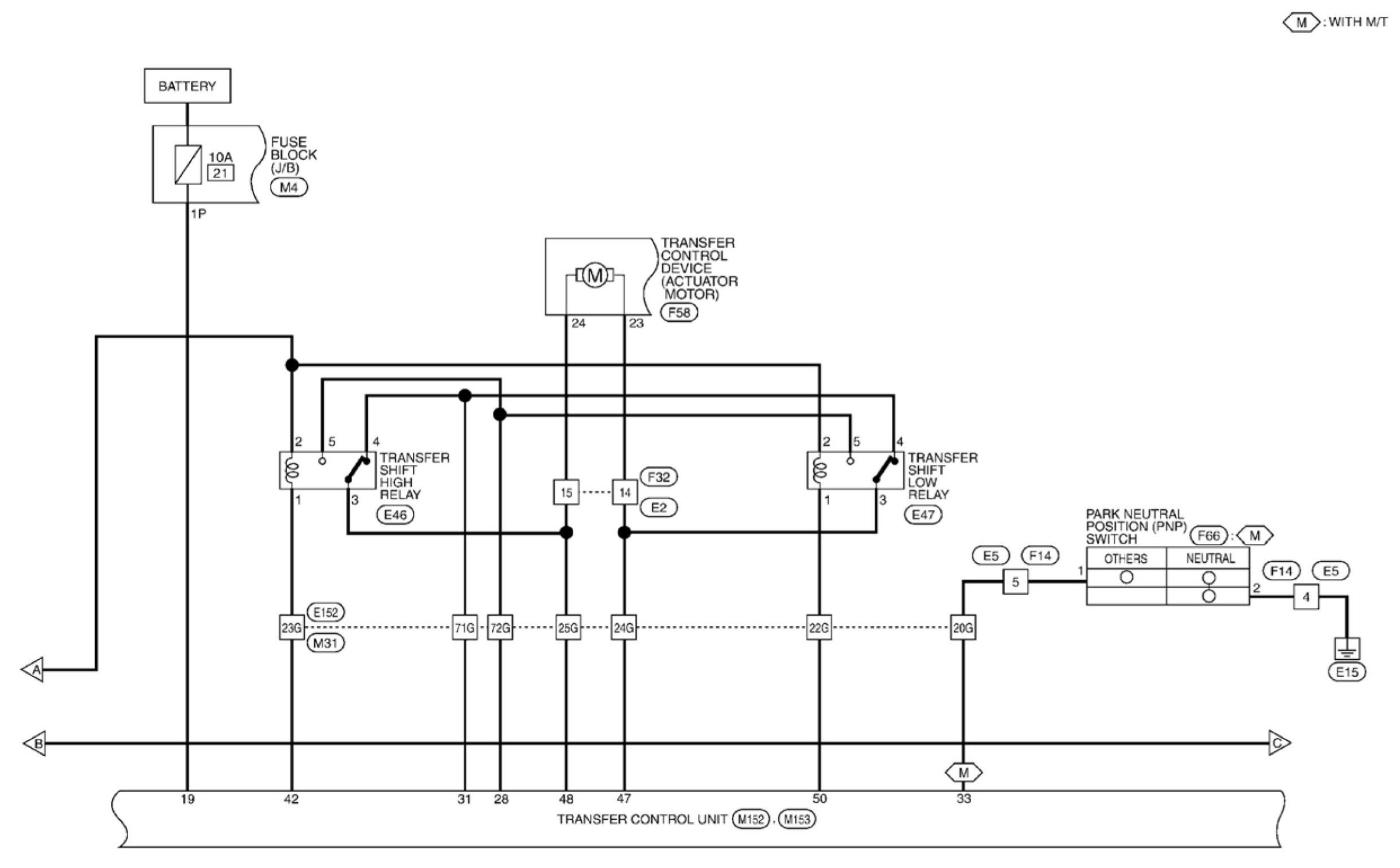

Part Time System (Part 3):






Transfer Control Unit Connectors

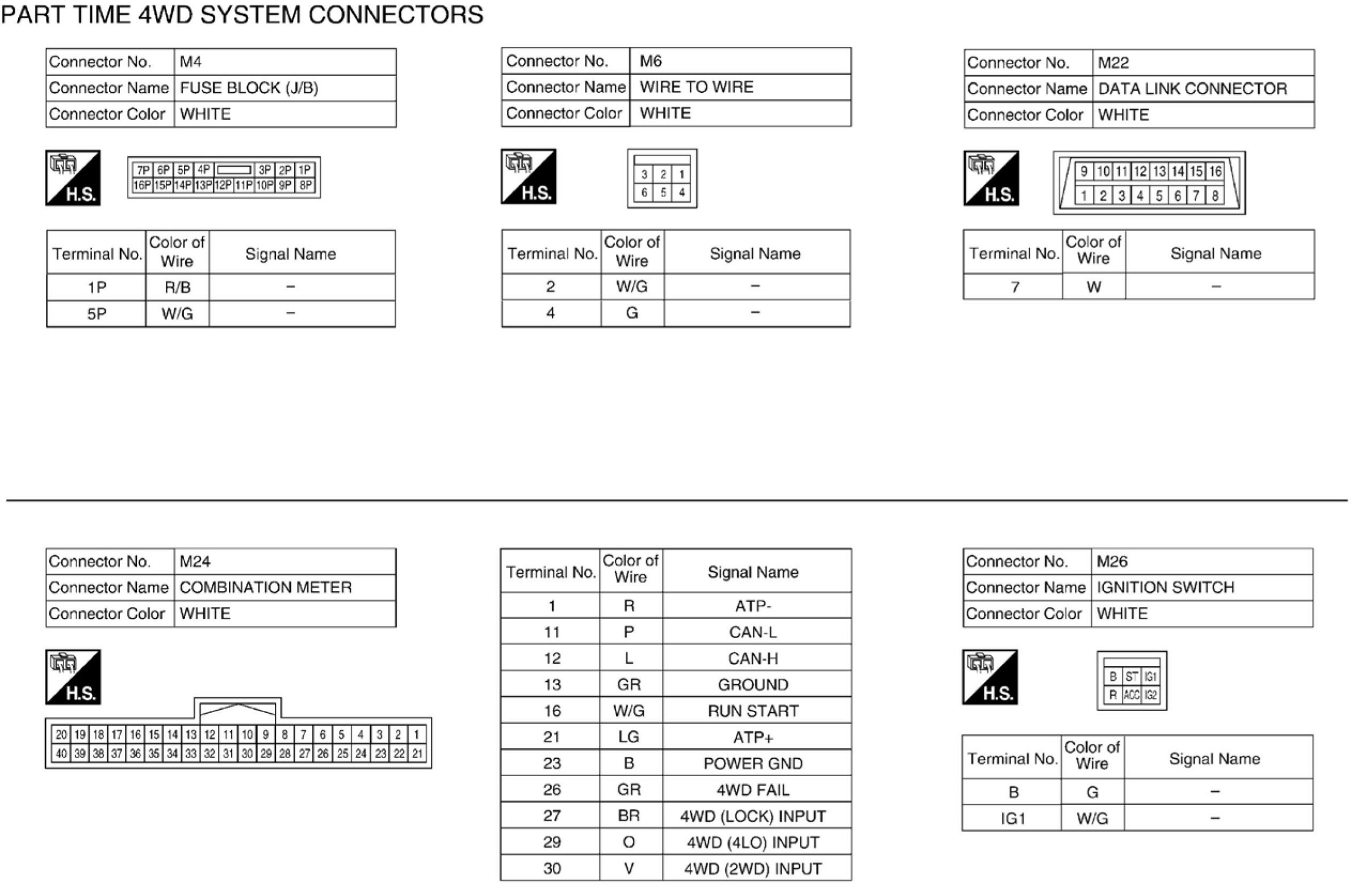

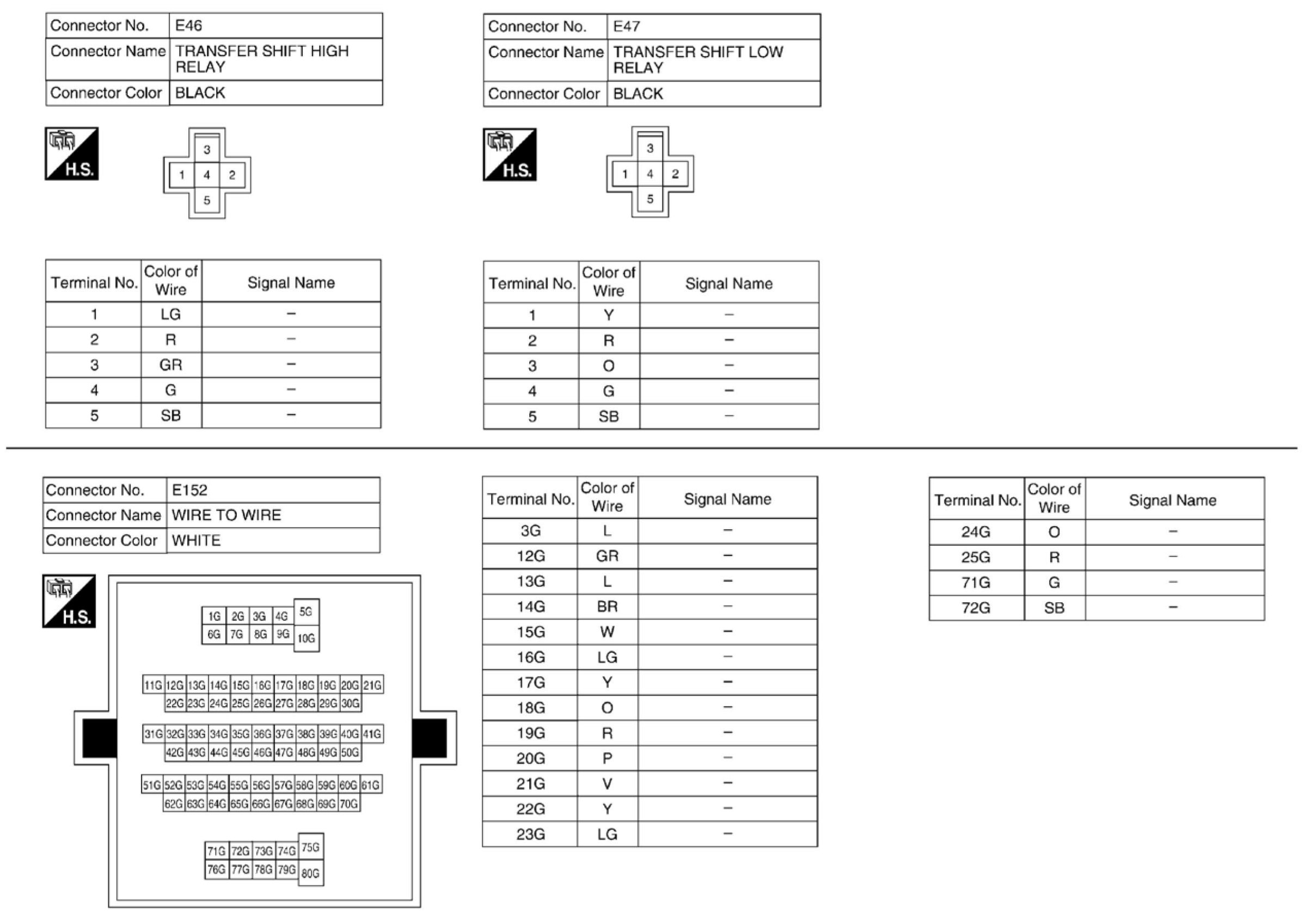

Part Time System Connectors (Part 1):

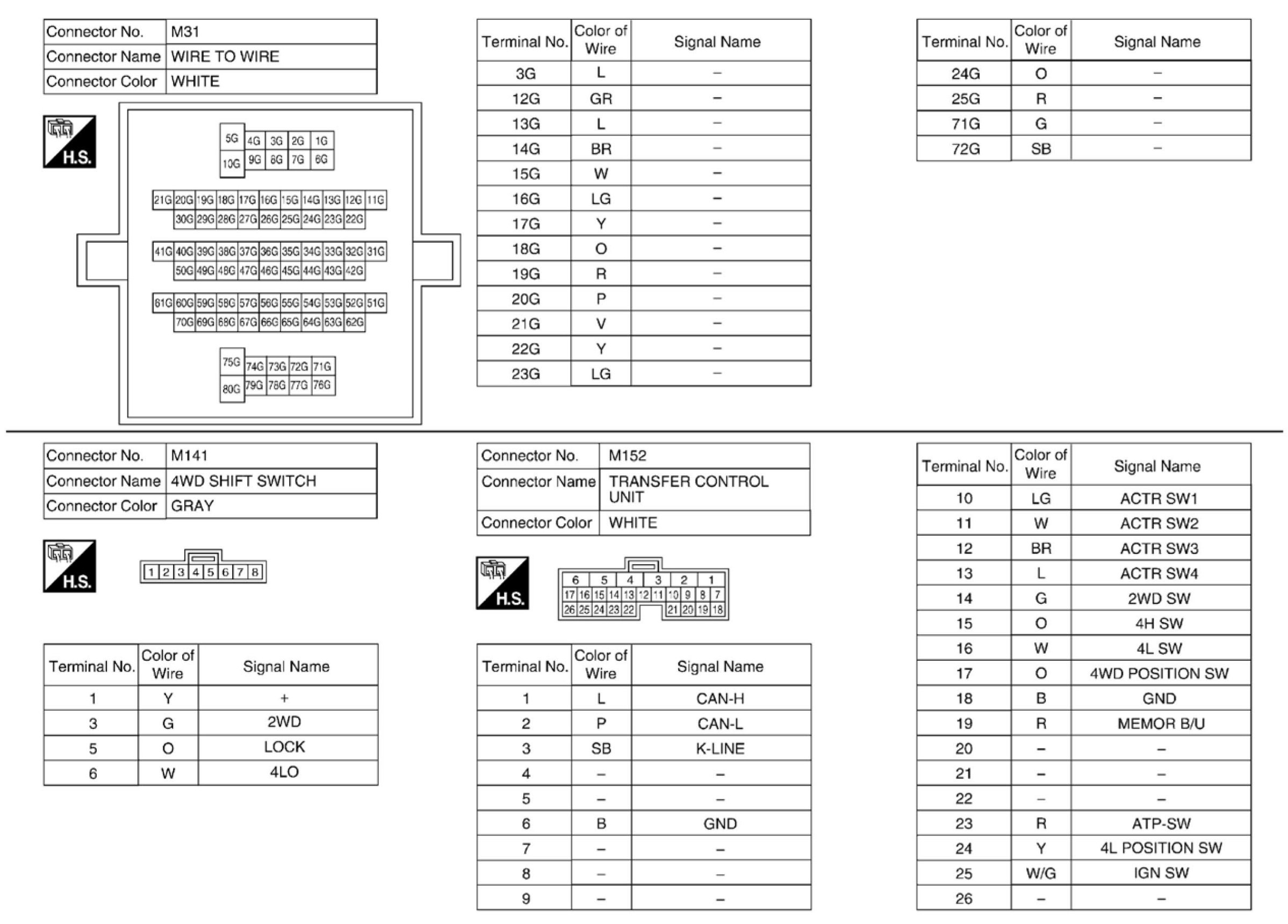

Part Time System Connectors (Part 2):

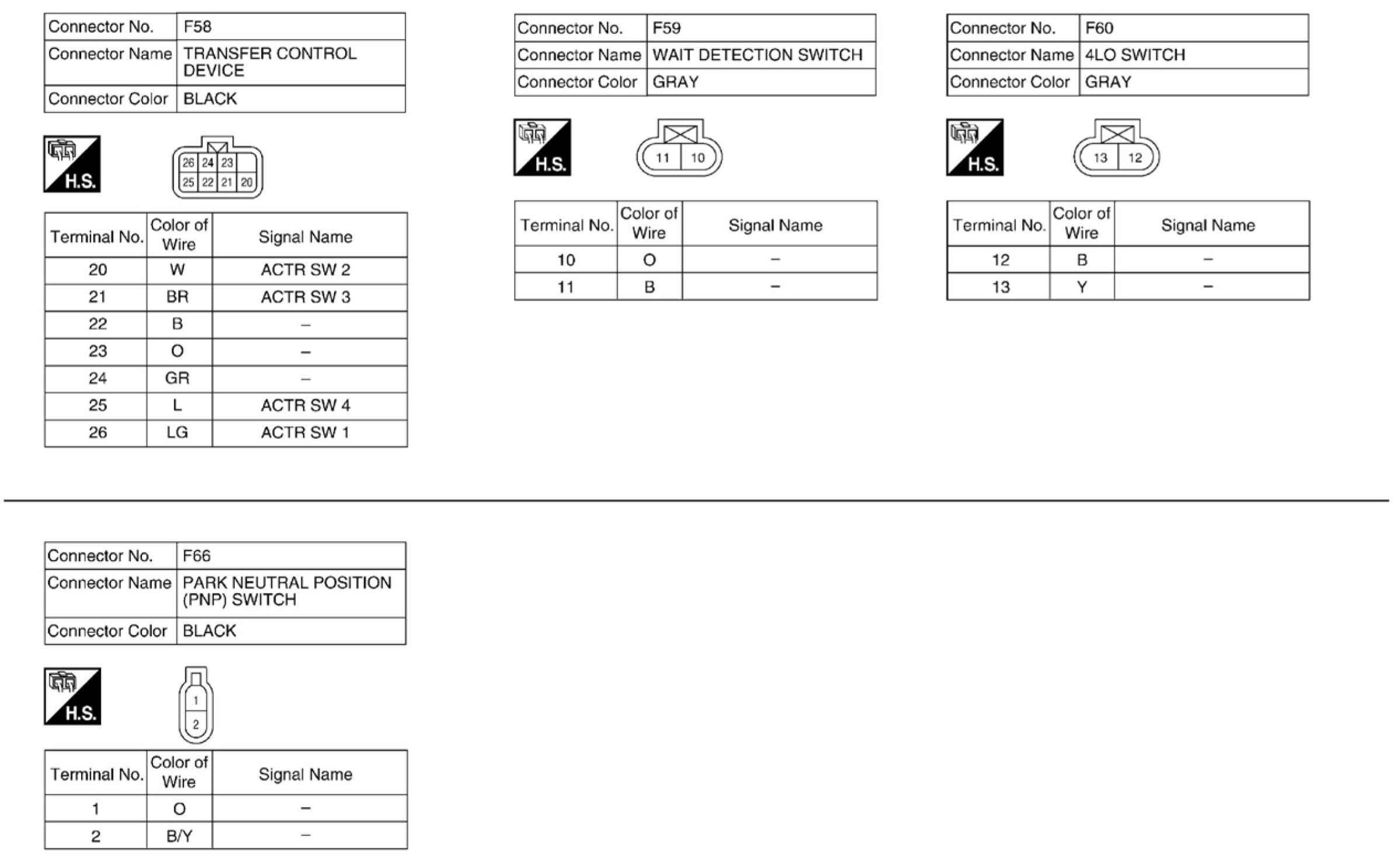

Part Time System Connectors (Part 3):

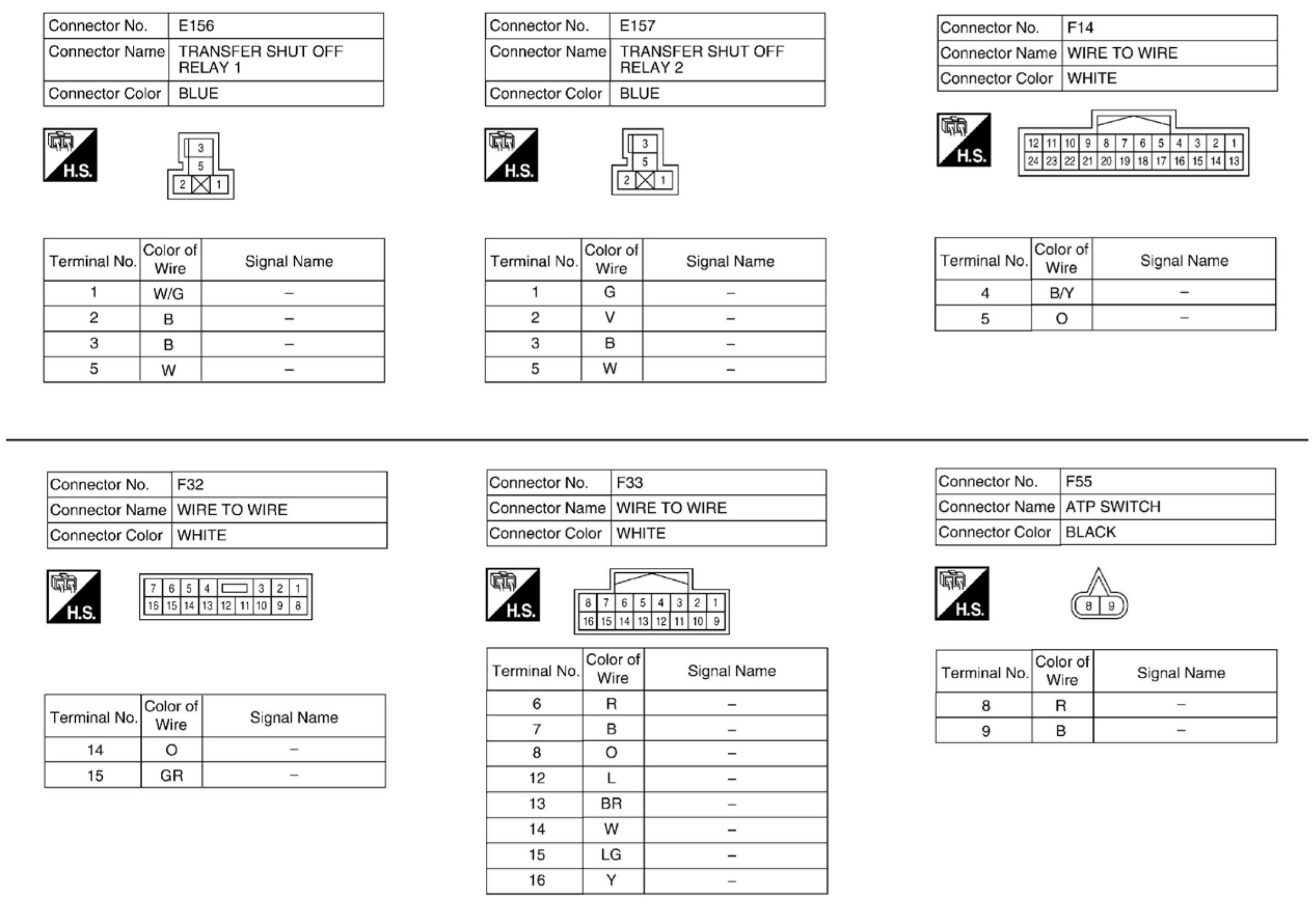

Part Time System Connectors (Part 4):

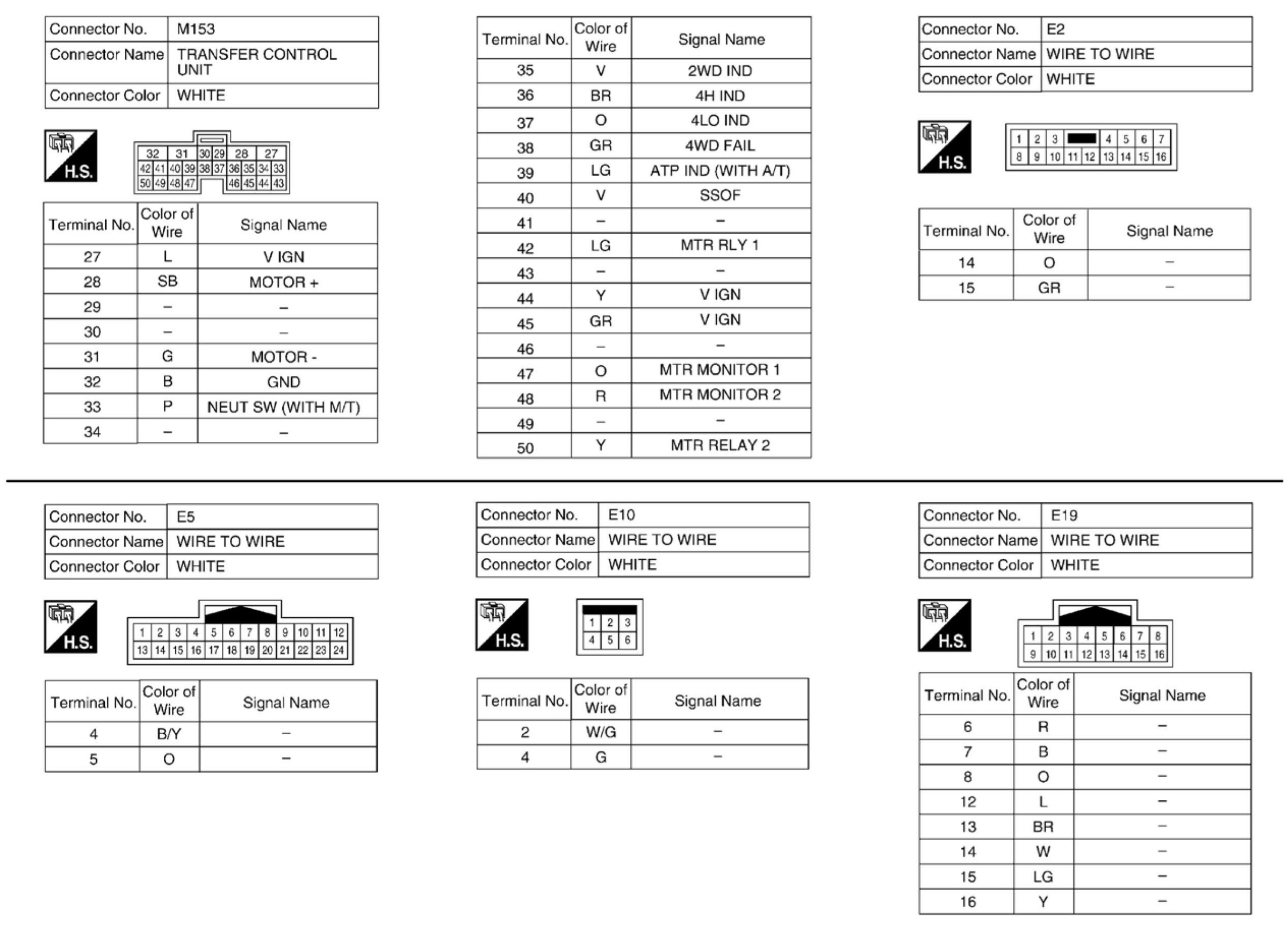

Part Time System Connectors (Part 5):




Part Time System Connectors (Part 6):
