Basic Inspection

Basic Inspection

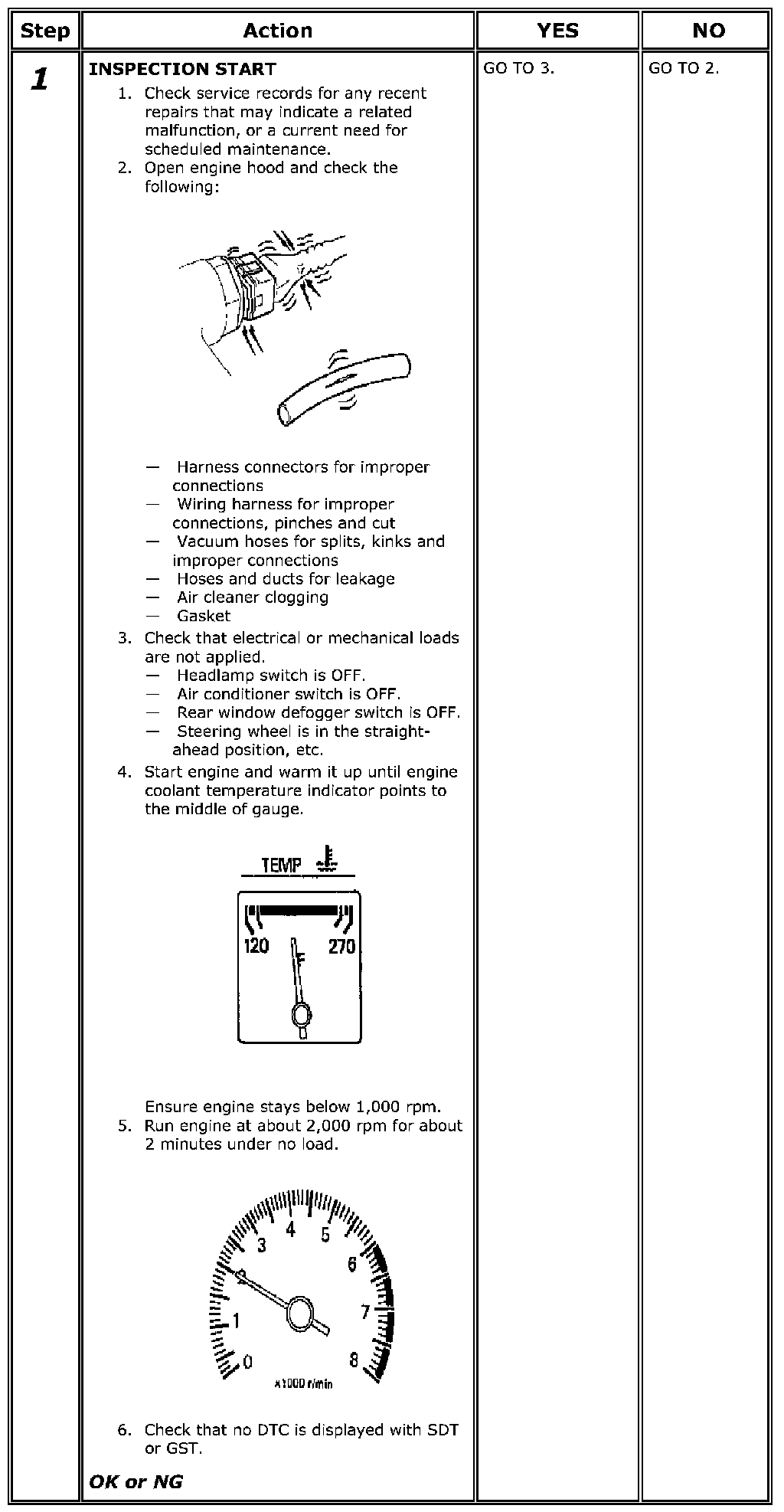

Step 1:

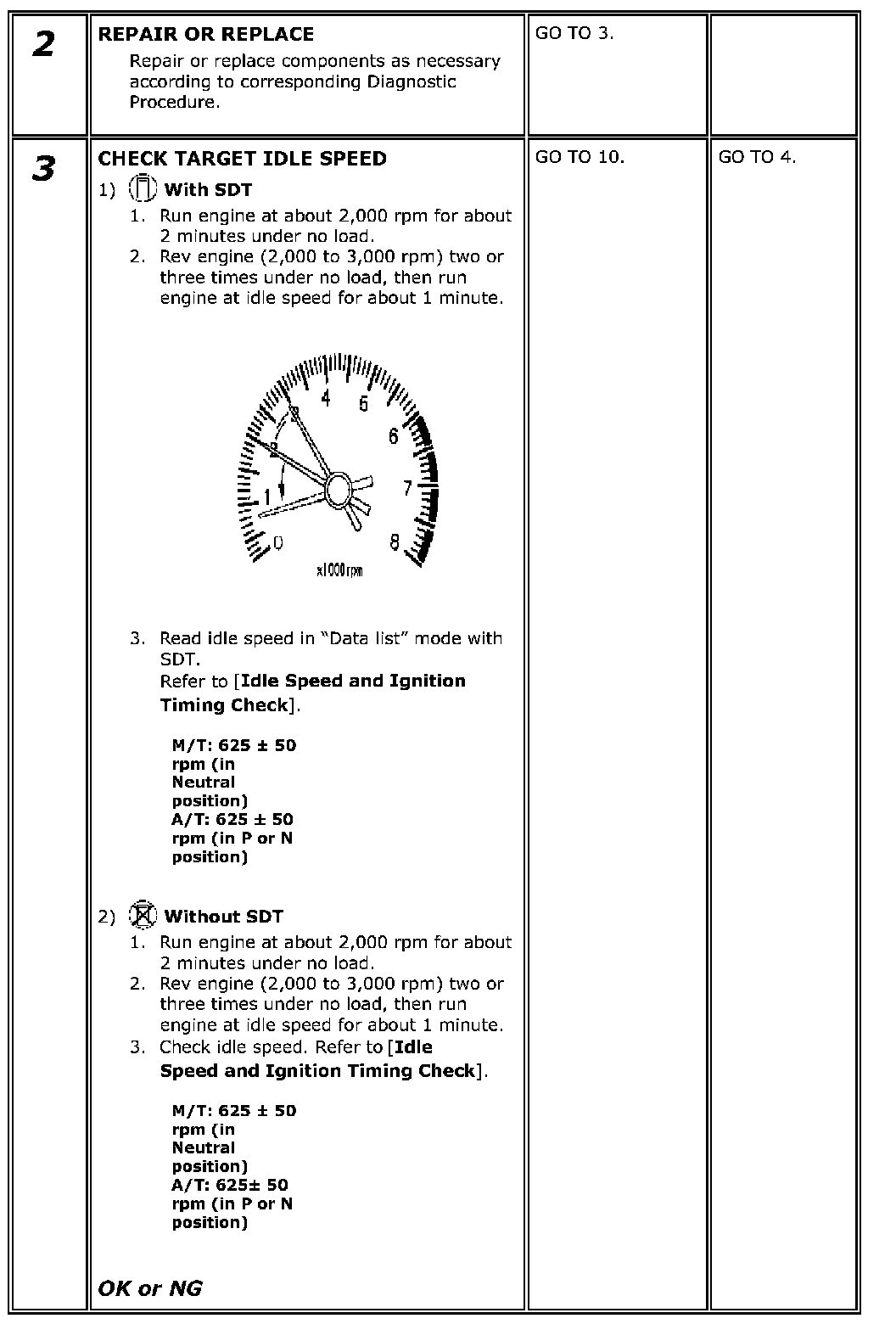

Step 2-3:

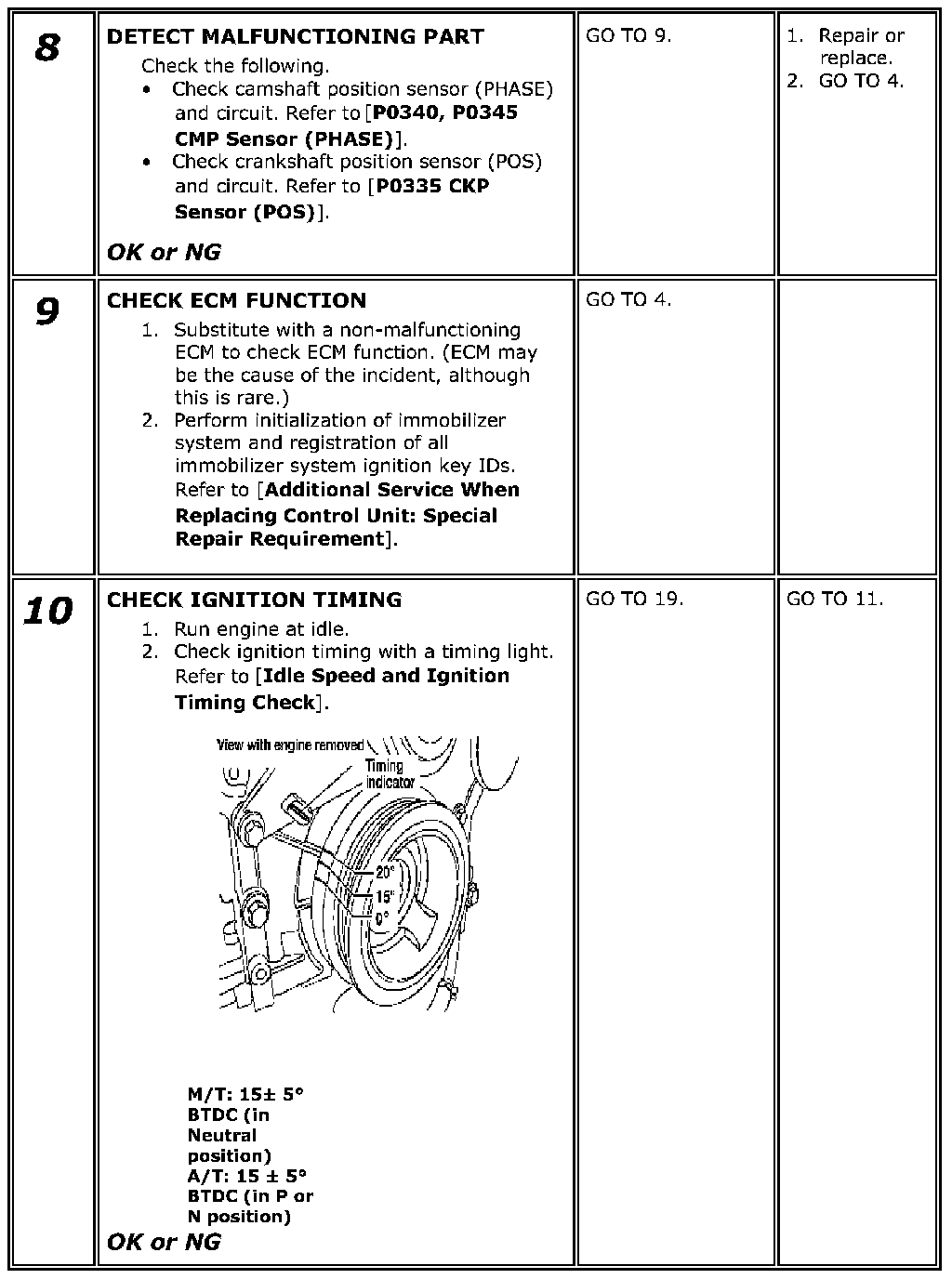

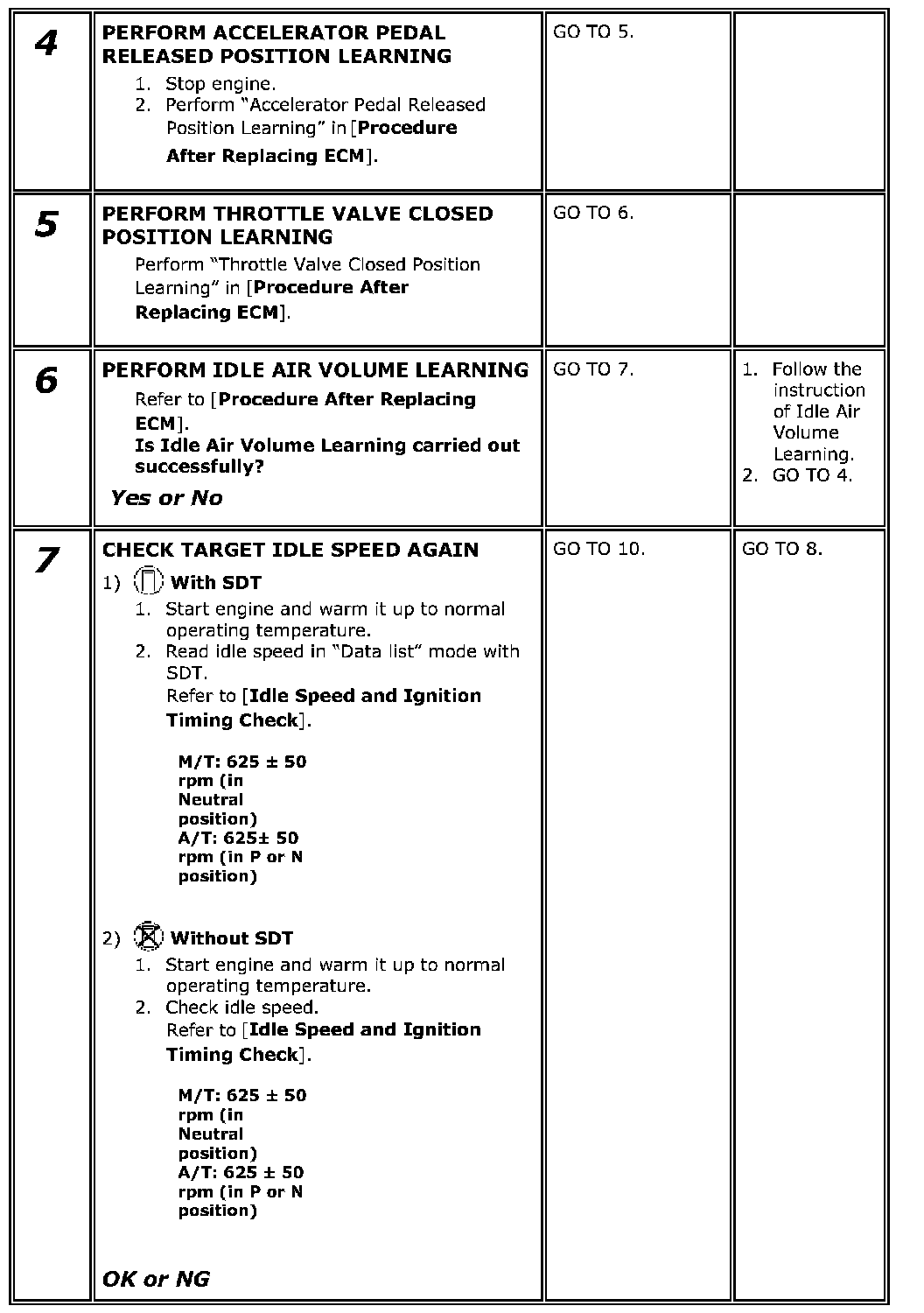

Step 4-7:




Step 8-10:

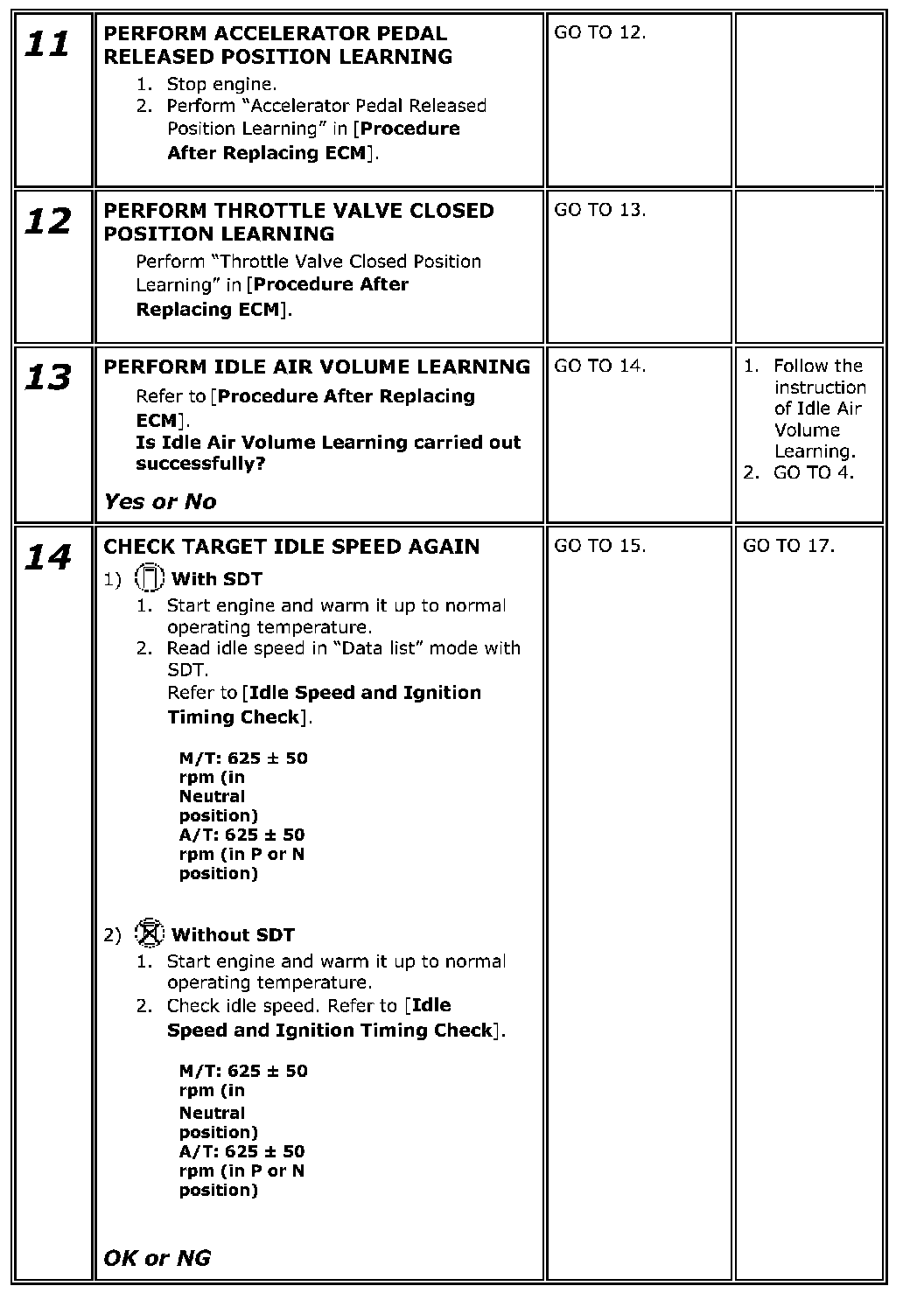

Step 11-14:

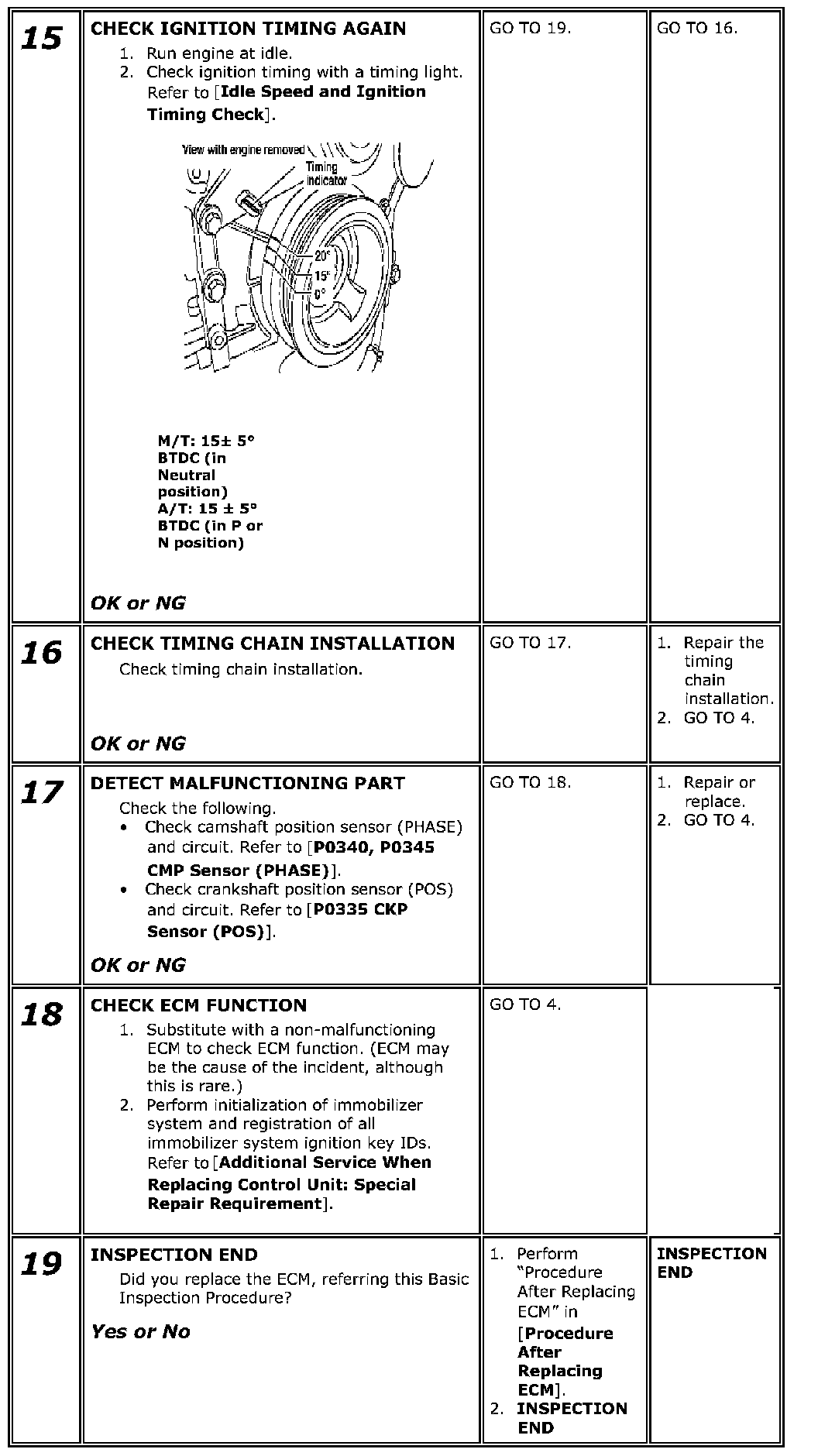

Step 15-19:
