Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Actuator And Electric Unit (Control Unit) | Right rear engine compartment. See Figure. |
| BCM (Body Control Module) (C) | Right side of steering column under dash. See Figure. |
| Electronic Control Module (ECM) | Left rear engine compartment. See Figure. |
| Intelligent Power Distribution Module (IPDM) E/R | Left rear engine compartment. See Figure. |

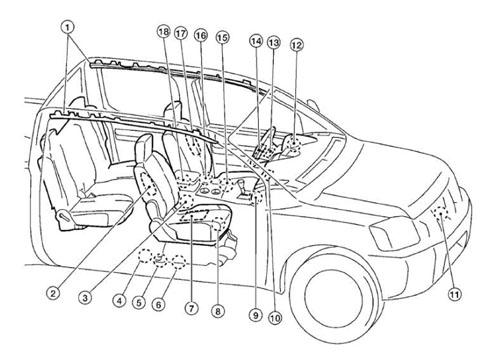

| Occupant Classification System Control Unit (8) | Under center of floor console. See Figure. |
| Transfer Control Unit (With 4WD) (E) | Left side of dash. See Figure. |
