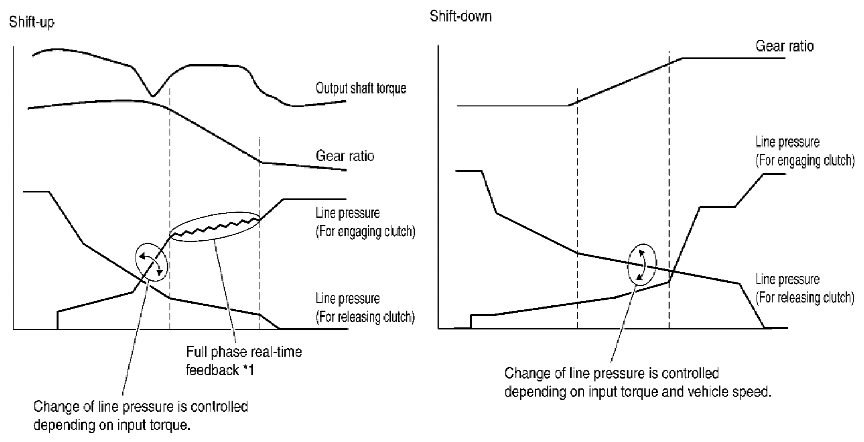

Shift Change System Diagram

Fig 1: Shift Change System Diagram

Courtesy of SUZUKI OF AMERICA CORP.

*1: Full phase real-time feedback control monitors movement of gear ratio at gear change, and controls oil pressure at real-time to achieve the best gear ratio.
