Transfer Assembly: Disassembly and Assembly: Components

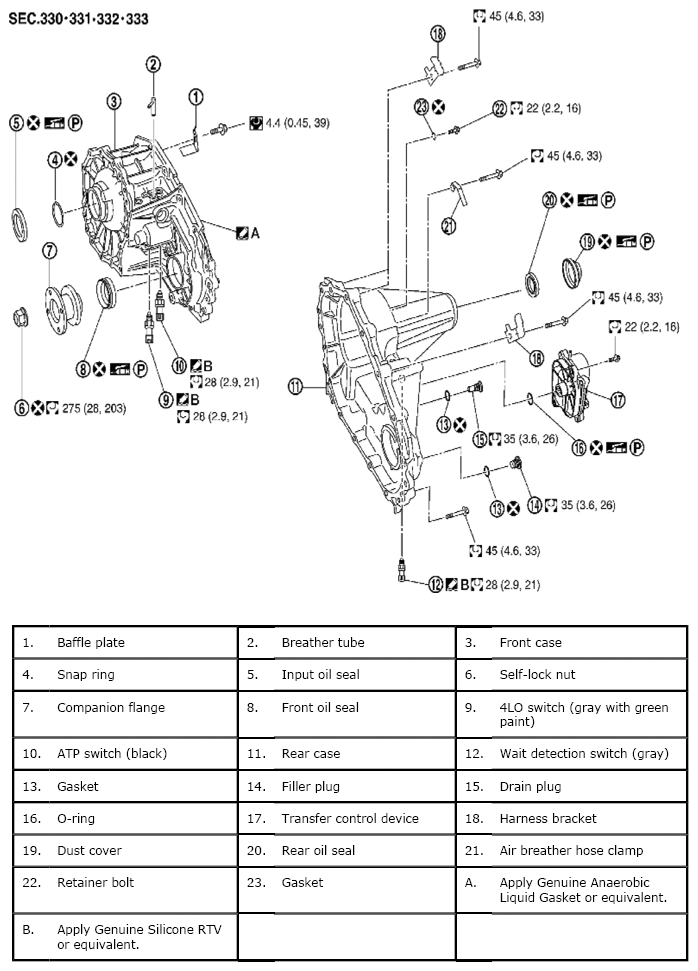

Fig 1: Identifying Transfer Assembly Components (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

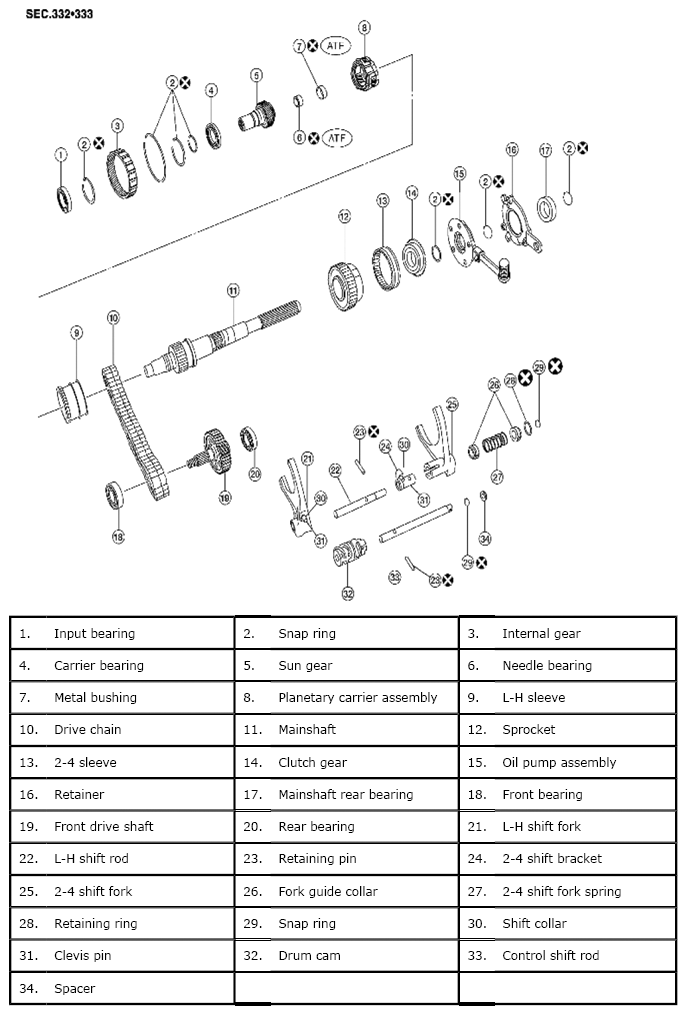

Fig 2: Identifying Transfer Assembly Components (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
