ABS (ESP®) Hydraulic Unit/Control Module Assembly Components

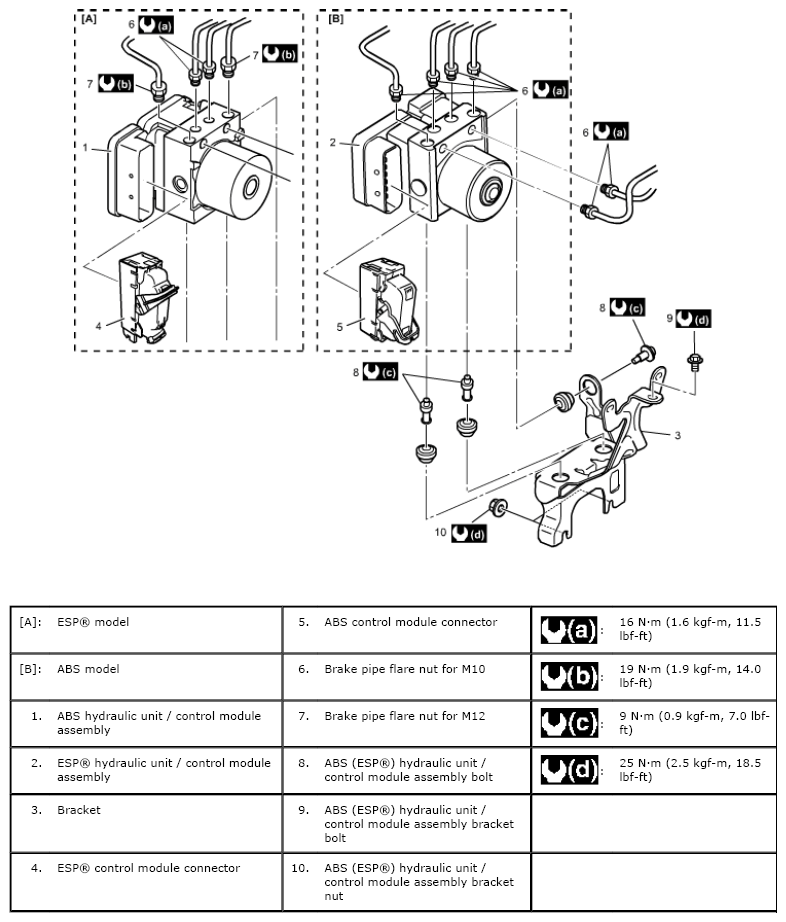

Fig 1: Identifying ABS (ESP®) Hydraulic Unit/Control Module Assembly Components
G06500023Courtesy of SUZUKI OF AMERICA CORP.
