ABS (ESP®) Hydraulic Unit/Control Module Assembly Removal and Installation: Notes

CAUTION:

Do not give an impact to hydraulic unit.
Use care not to allow dust to enter ABS (ESP®) hydraulic unit/control module assembly.
Do not place ABS (ESP®) hydraulic unit/control module assembly on its side or upside down.
Handling it in inappropriate way will affect its original performance.
Never disassemble ABS (ESP®) hydraulic unit/control module assembly, loosen blind plug or remove motor. Performing any of these prohibited services will affect original performance of ESP® hydraulic unit/control module assembly.
Do not allow brake fluid to get on painted surfaces. Painted surfaces will be damaged by brake fluid, flush it with water immediately if any fluid is spilled.
Be sure to tighten fastener to specified torque using torque wrench to avoid damage.

NOTE:

For ESP® model, be sure to perform SENSOR CALIBRATION before performing hydraulic unit operation check when ESP® hydraulic unit/control module is replaced.
When ignition switch is turned to ON position after replacing ESP® hydraulic unit/control module, DTC C1075, C1076, C1078 and C1077 are stored in ESP® control module and the indicator lights light up or flash. However, these are in normal operation. These DTCs are cleared and lights are turned off if the following operations are performed in order.
1. SENSOR CALIBRATION .
2. ABS Hydraulic Unit Operation Check .
3. Ignition switch OFF and ON.

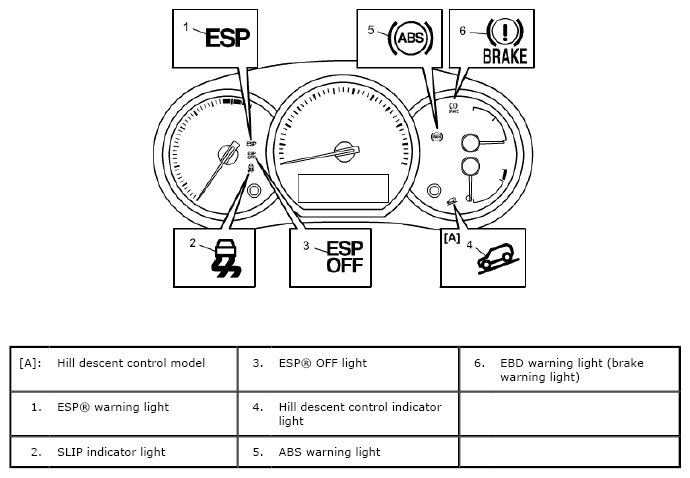

  Fig 1: Identifying Indicator Lights
  Courtesy of SUZUKI OF AMERICA CORP.
