Keyless Start Control Module Power and Ground Circuit Check: Wiring Diagram

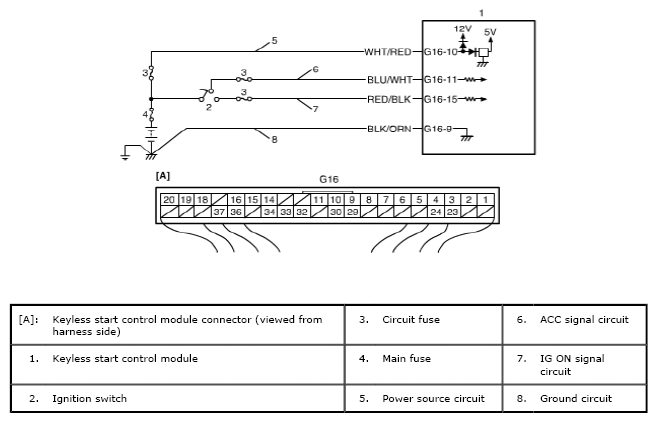

Fig 1: Keyless Start Control Module Power And Ground Circuit Check - Wiring Diagram
G05472657Courtesy of SUZUKI OF AMERICA CORP.
