ABS (ESP®) Hydraulic Unit / Control Module Assembly Components

CAUTION: Never disassemble ABS (ESP®) hydraulic unit / control module assembly, loosen blind plug or remove motor. Performing any of these prohibited services will affect original performance of ABS (ESP®) hydraulic unit / control module assembly.

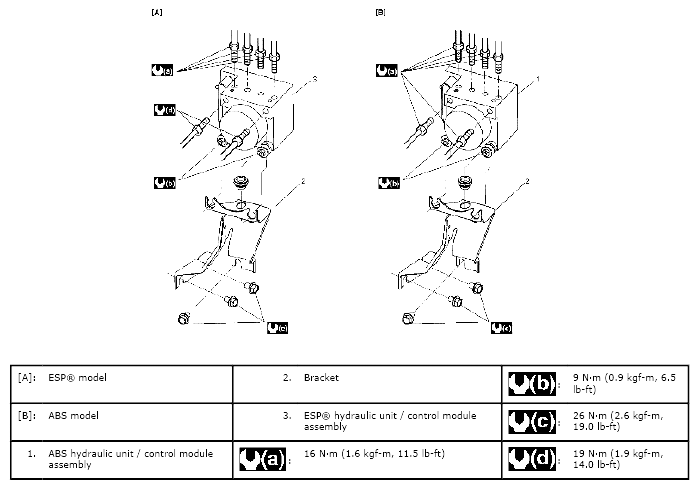

Fig 1: Identifying ABS (ESP®) Hydraulic Unit / Control Module Assembly Components With Tightening Torque

Courtesy of SUZUKI OF AMERICA CORP.
