Standardized Relay: Description

Standardized Relay: Description

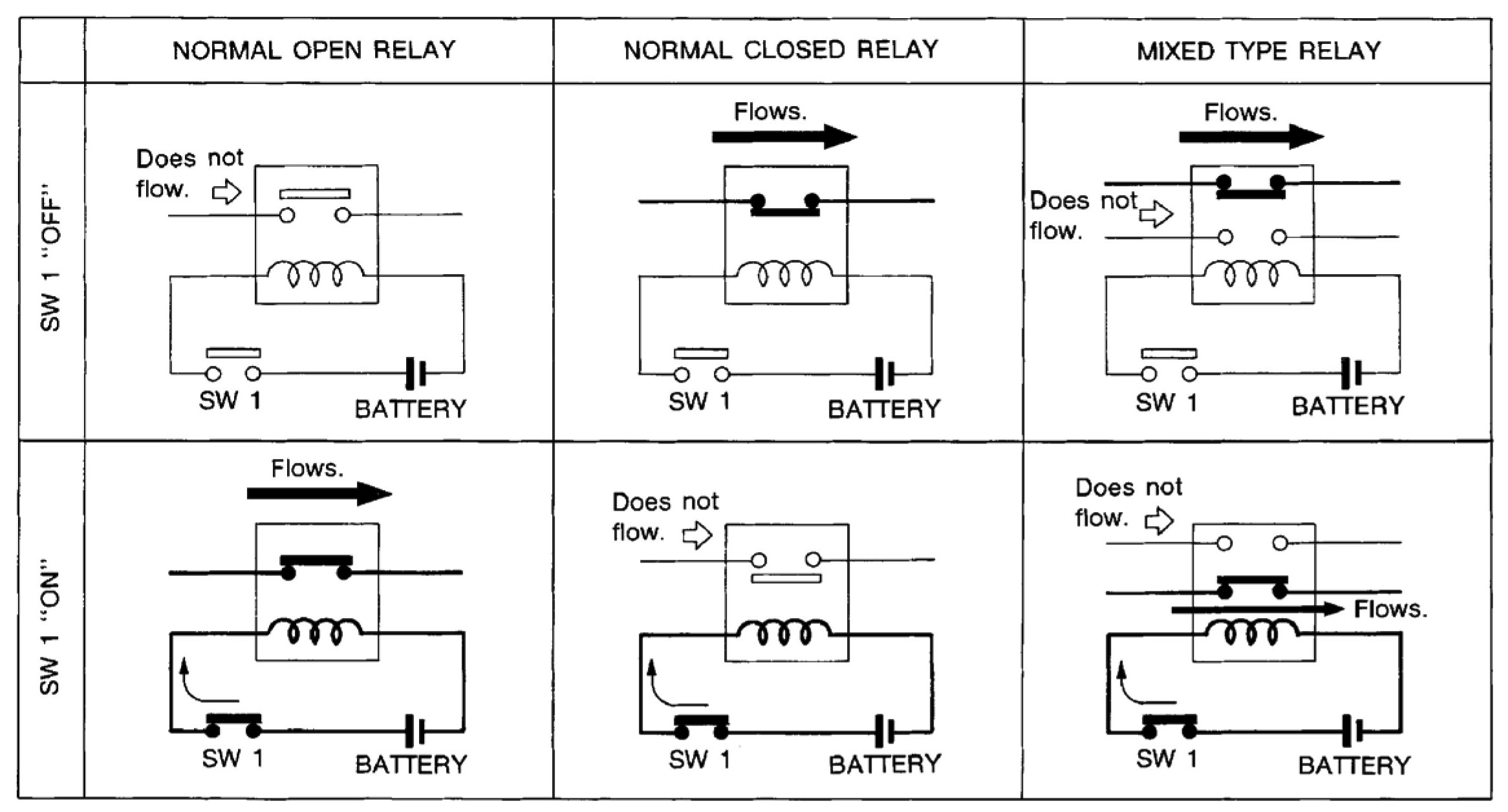

Normal Open, Normal Closed and Mixed Type Relays

Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.

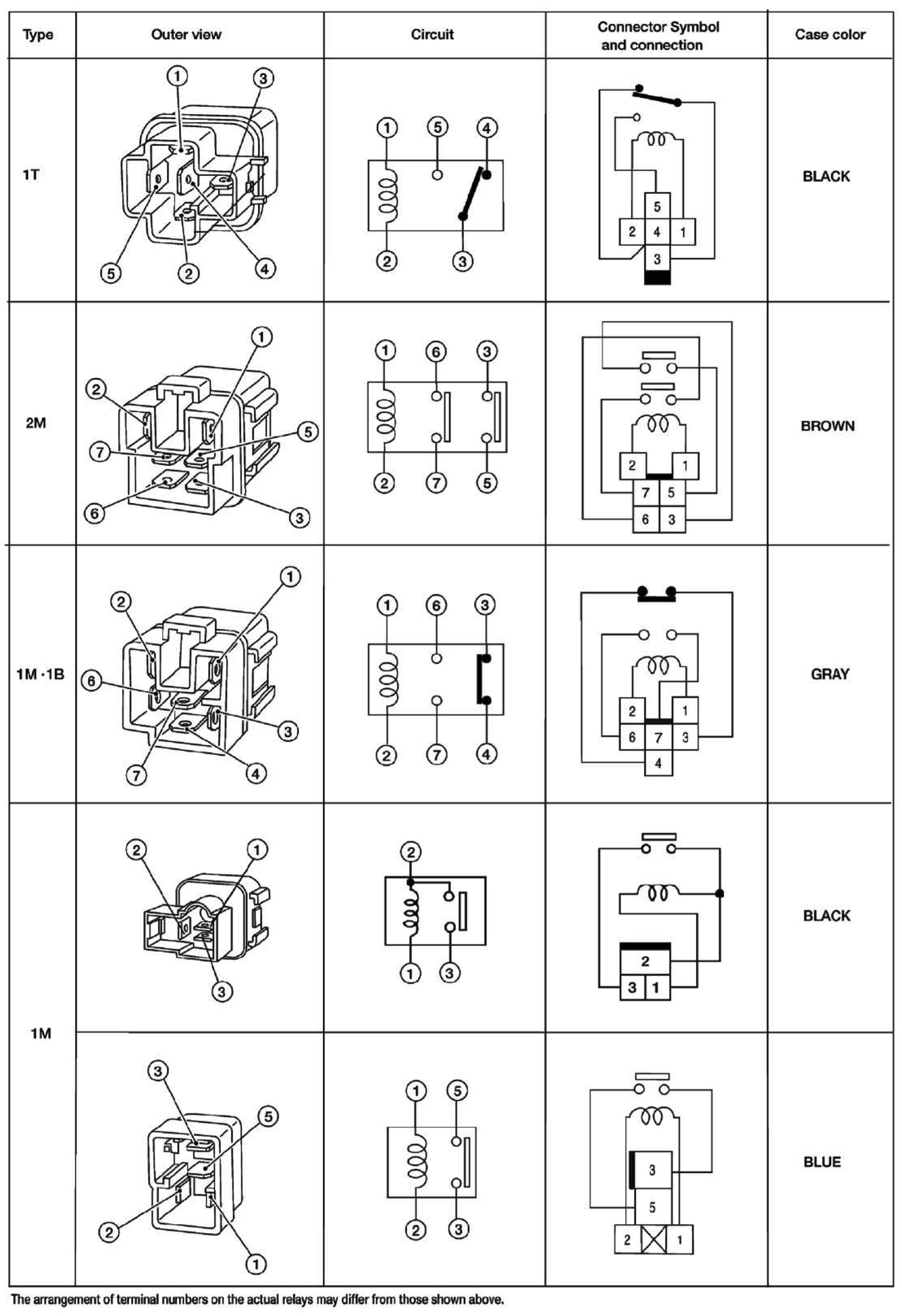

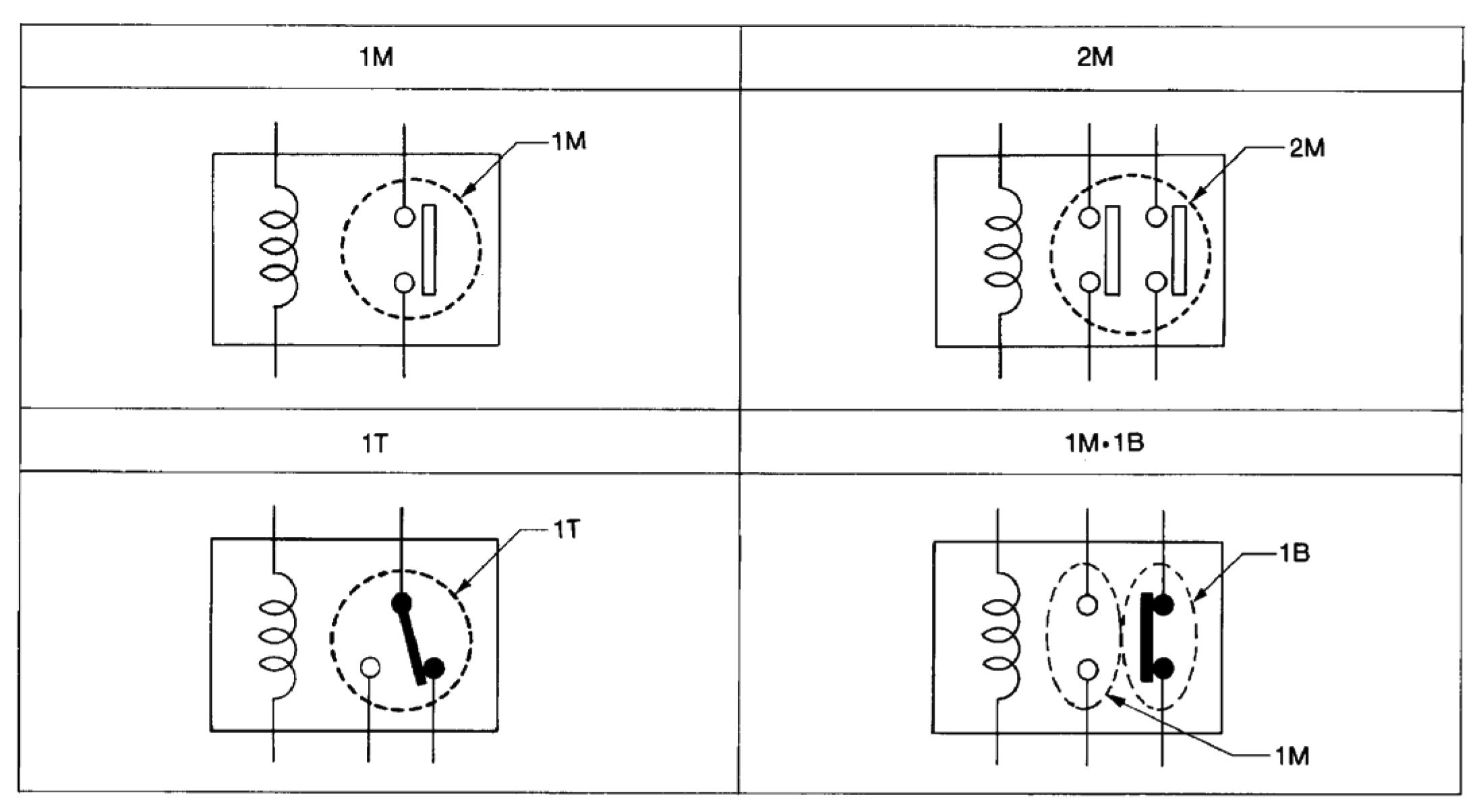

Type of Standardized Relays

1M .................... 1 Make 2M ......................2 Make
1T .................... 1 Transfer 1M .1B .................... 1 Make
1 Break
