Data List Mode

Data List Mode

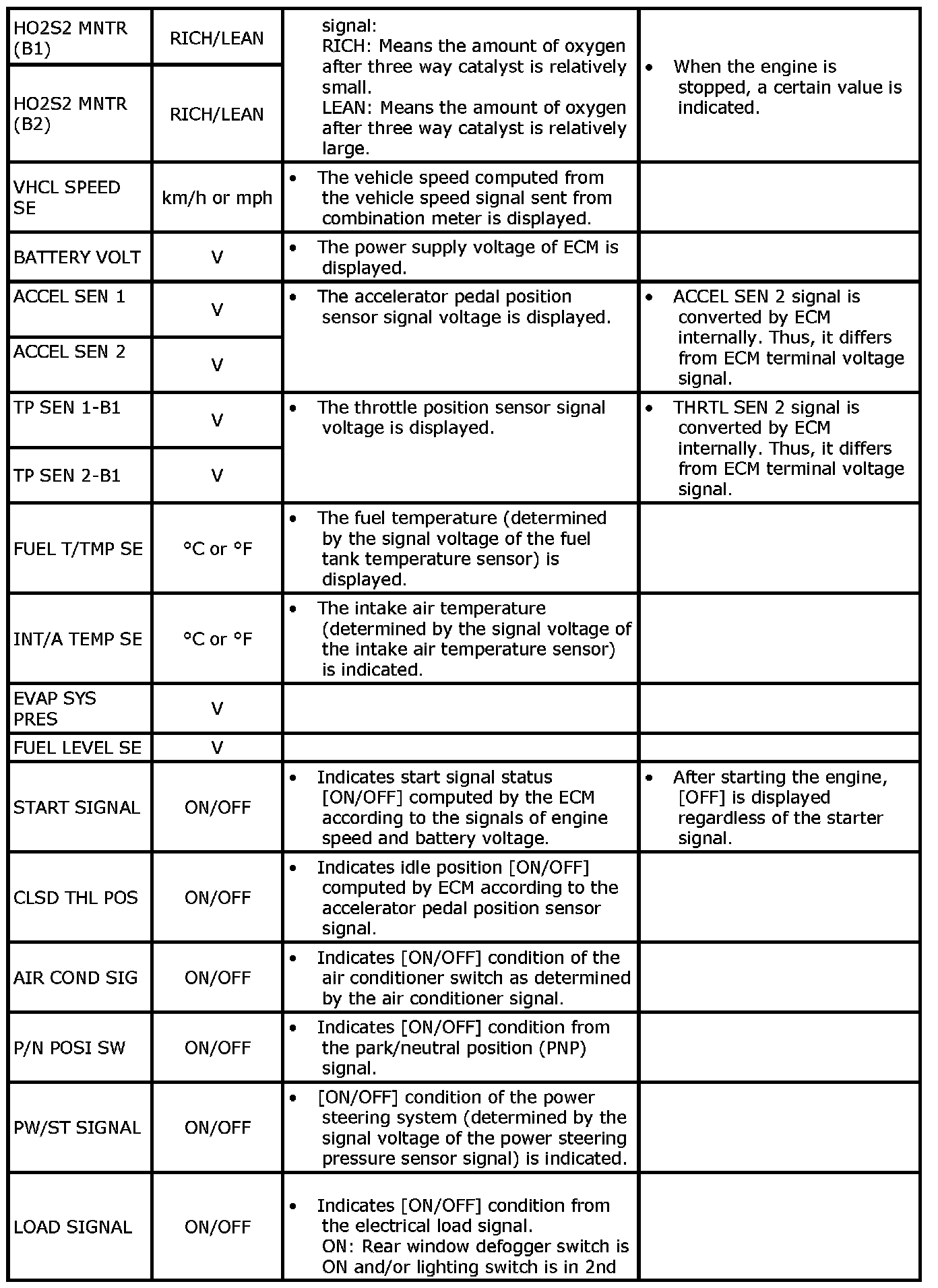

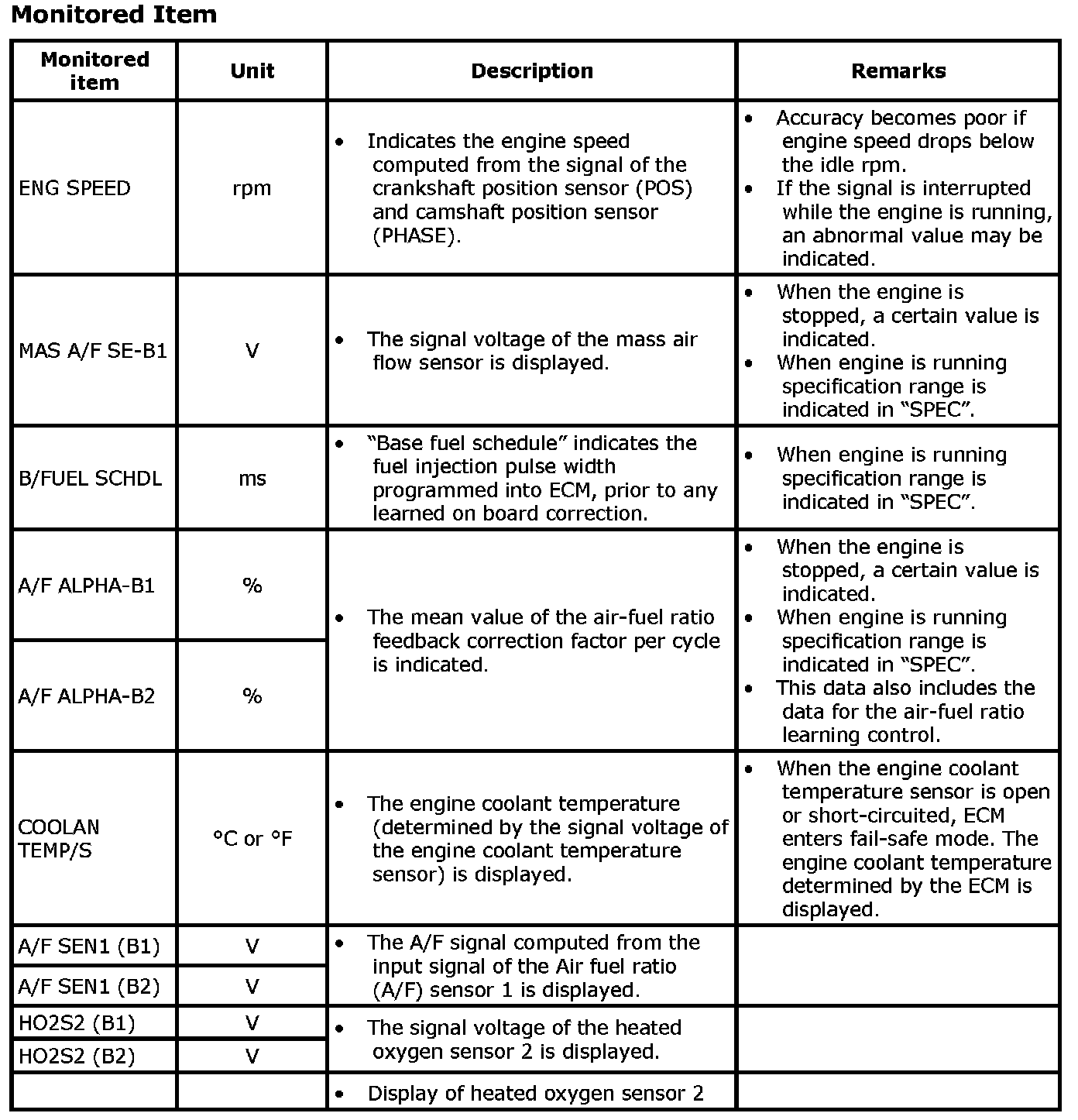

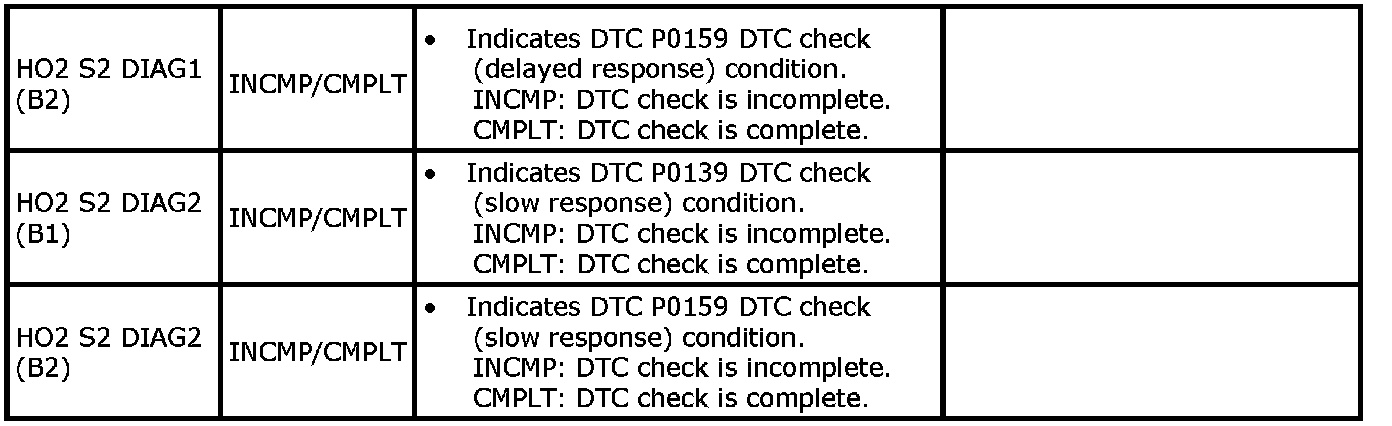

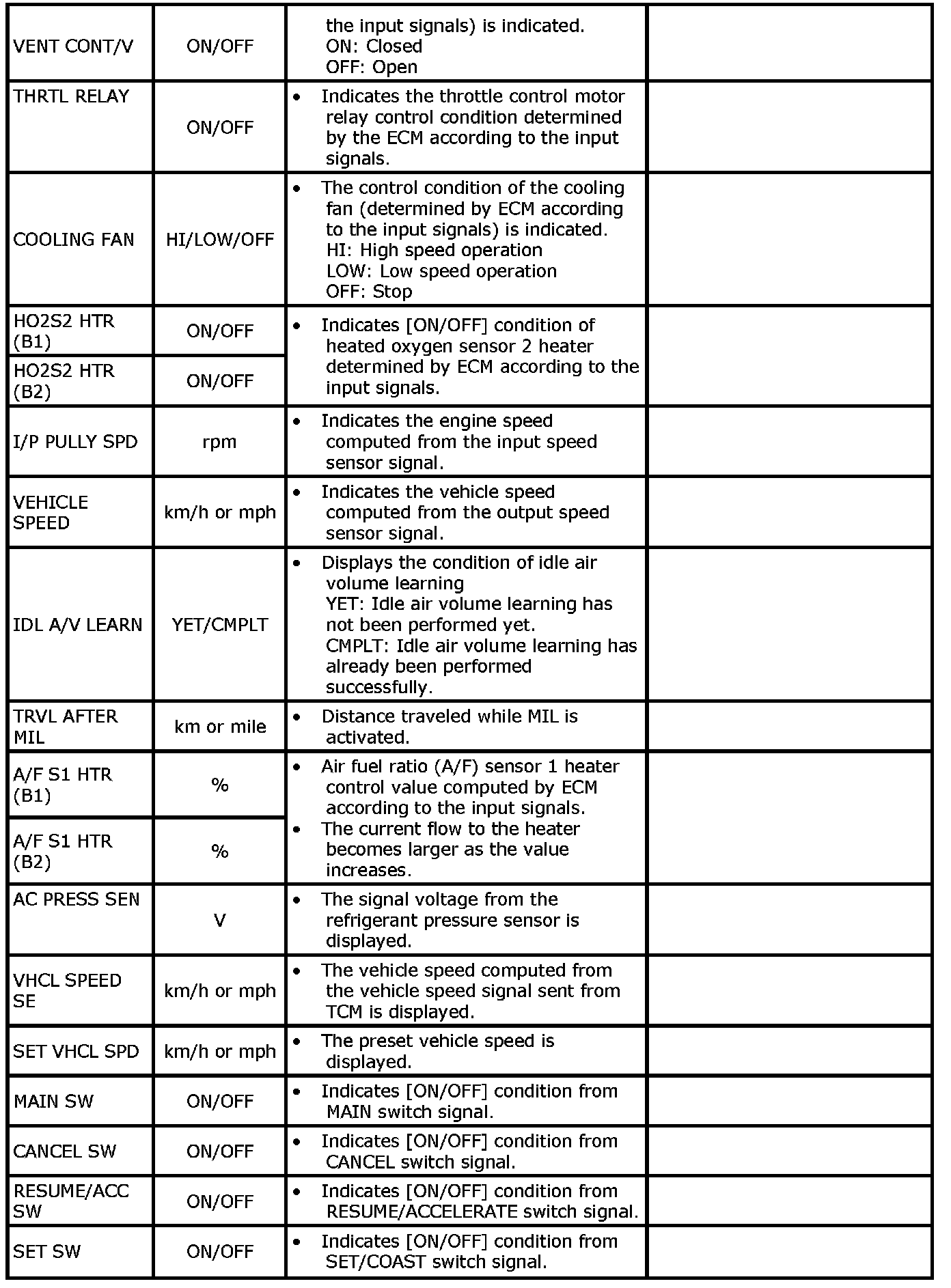

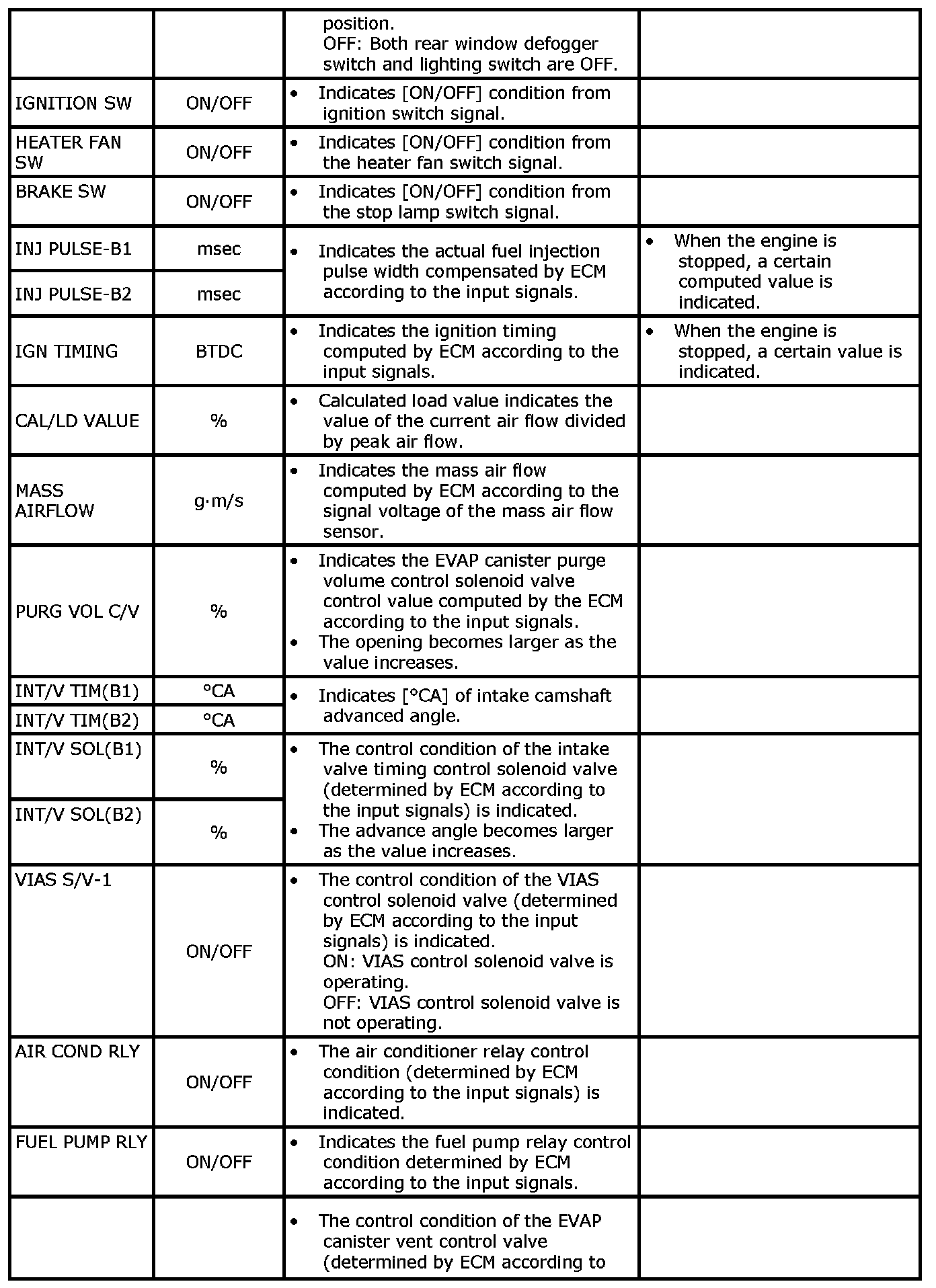

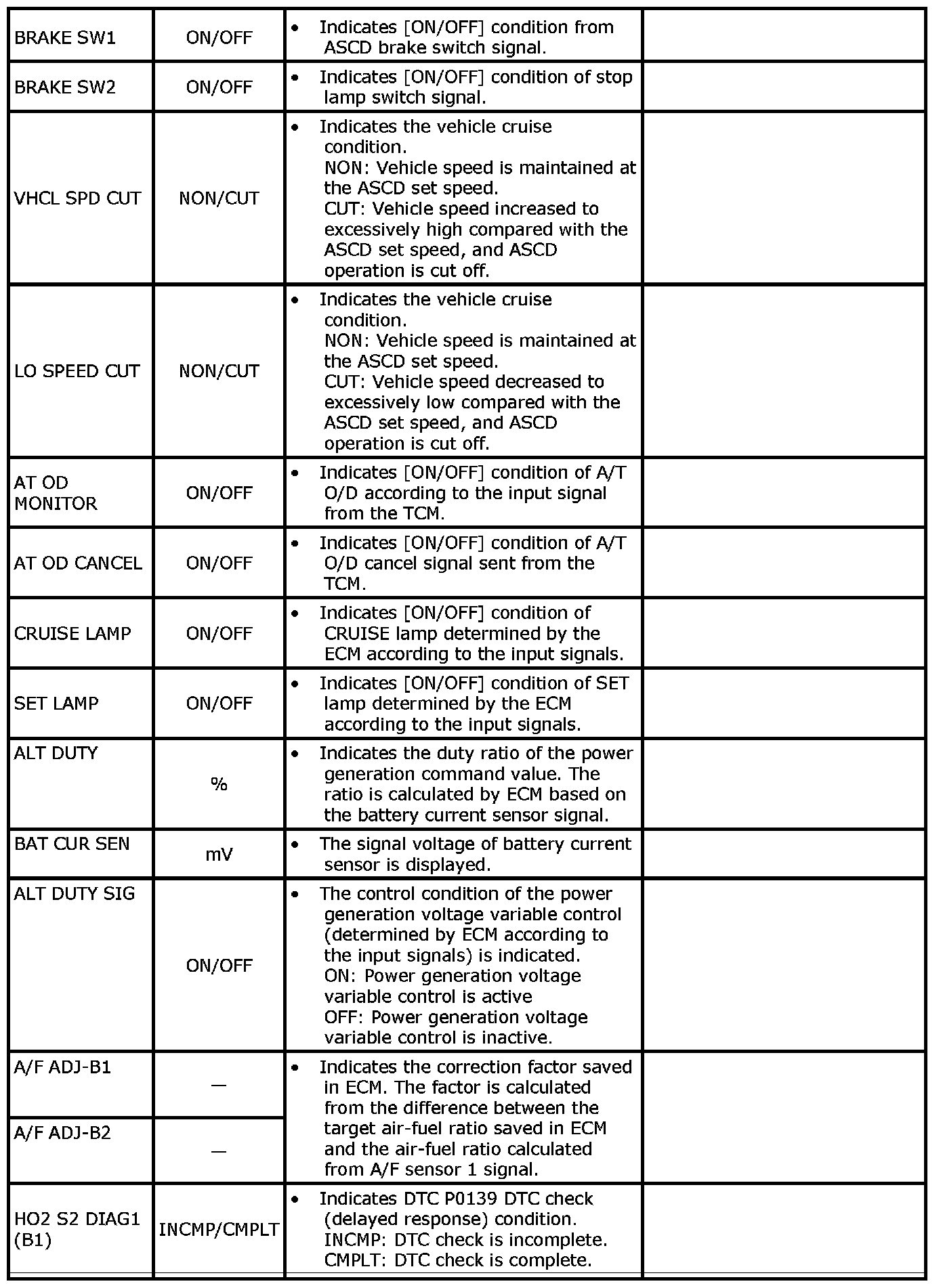

Monitored Item





















NOTE: Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
