Utility Mode

Utility Mode

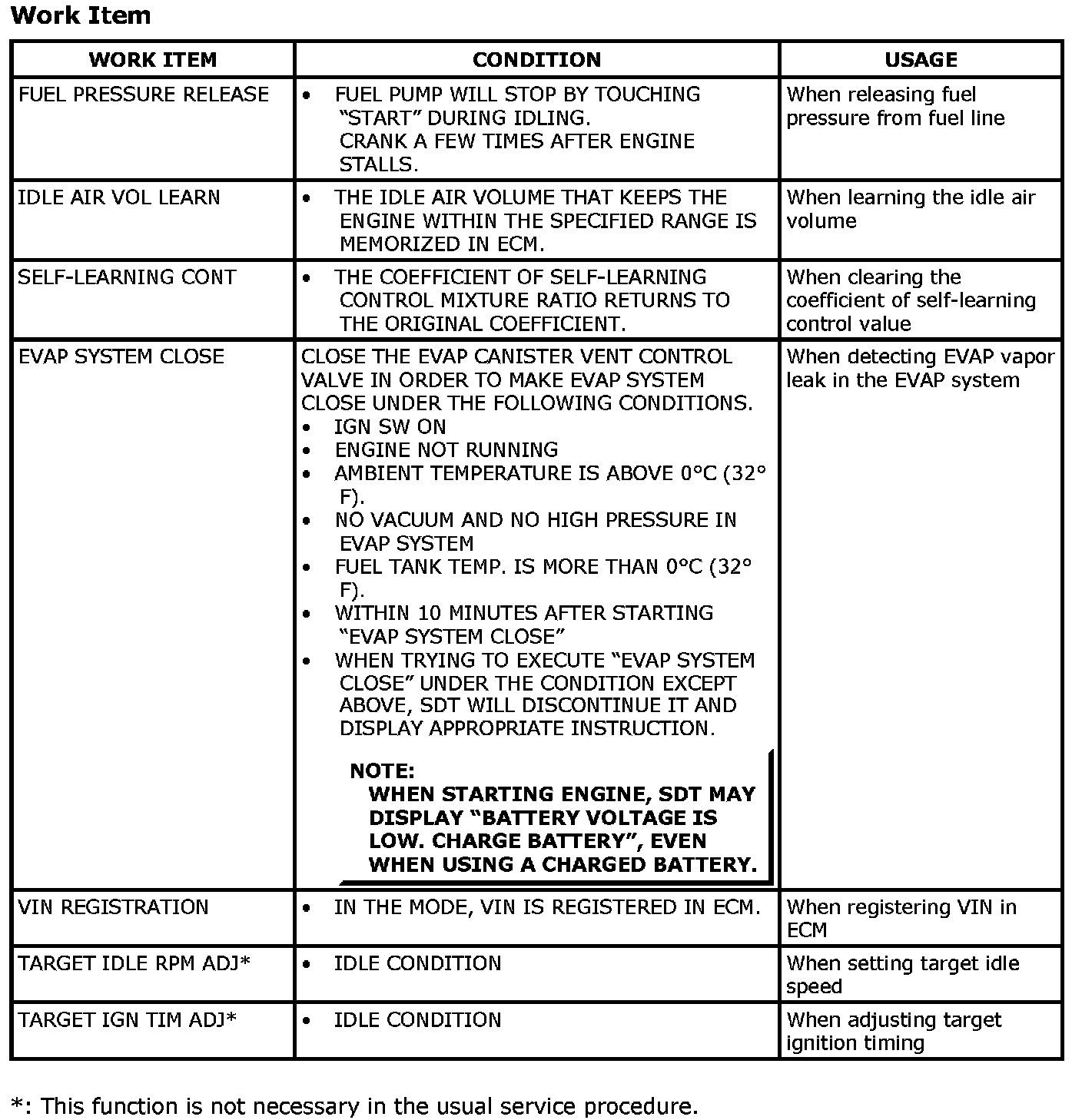

Utility (Readiness Test / DTC Work Support) Mode

Readiness Test Mode
For details, refer to [Emission-related Diagnostic Information]. Emission-Related Diagnostic Information

PERMANENT DTC STATUS Mode
For details, refer to [Emission-related Diagnostic Information]. Emission-Related Diagnostic Information

NOTE: This mode is not used in regions that permanent DTCs are not regulated by law.
