4WD Shift Switch And Indicator Lamp: Notes

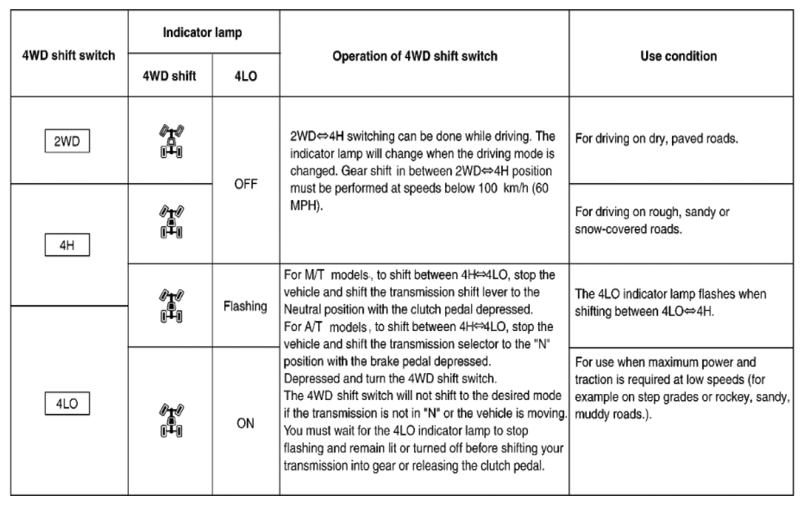

Fig 1: 4WD Shift Switch And Indicator Lamp Specification Chart
G06444730Courtesy of SUZUKI OF AMERICA CORP.
