Engine Basic Inspection

Engine Basic Inspection

This check is very important for troubleshooting when ECM has detected no DTC and no abnormality has been found in Visual Inspection:J24B. Visual Inspection

Follow the flow carefully.

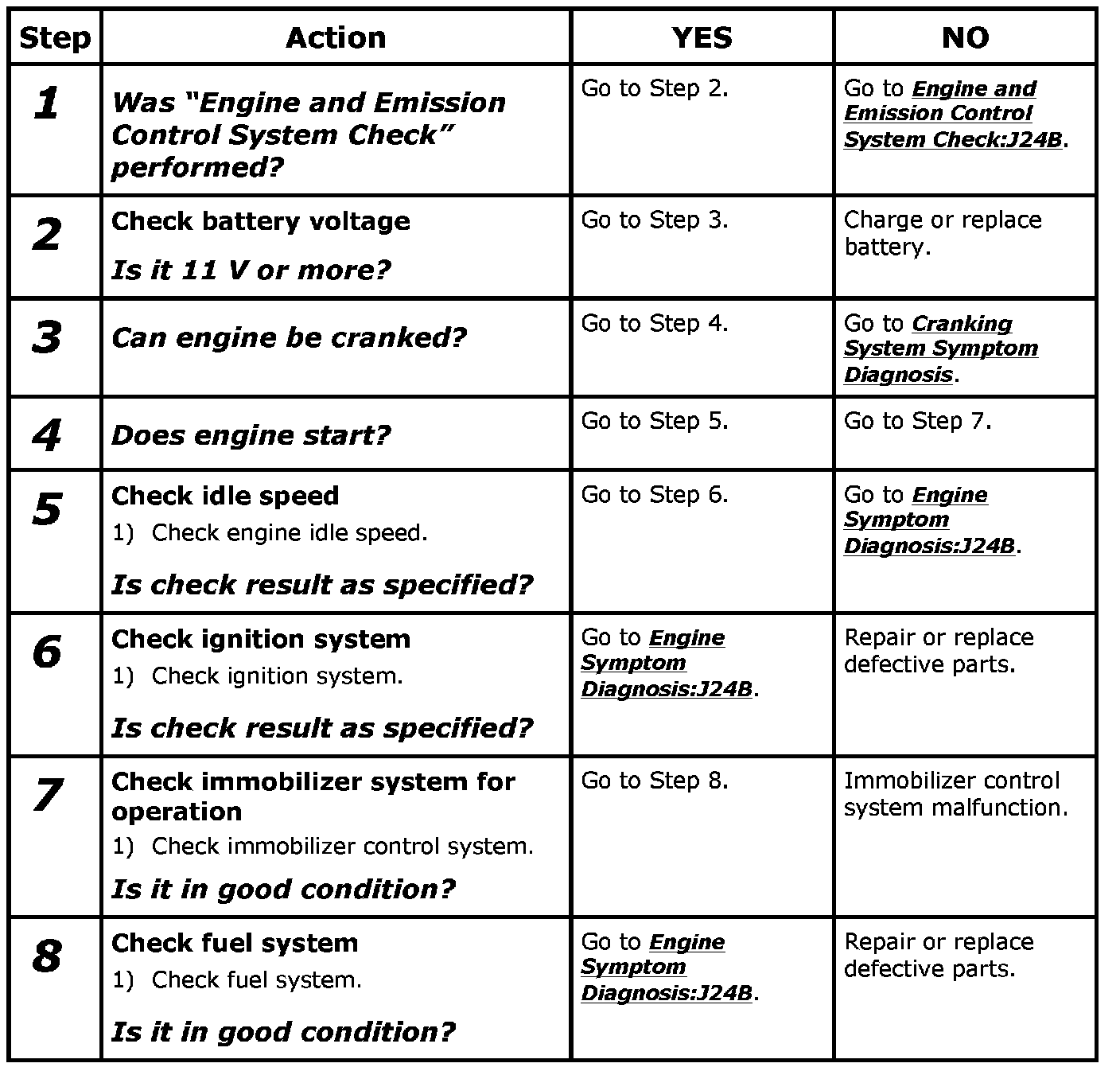

Step 1-8:
