Axle Shaft Assembly

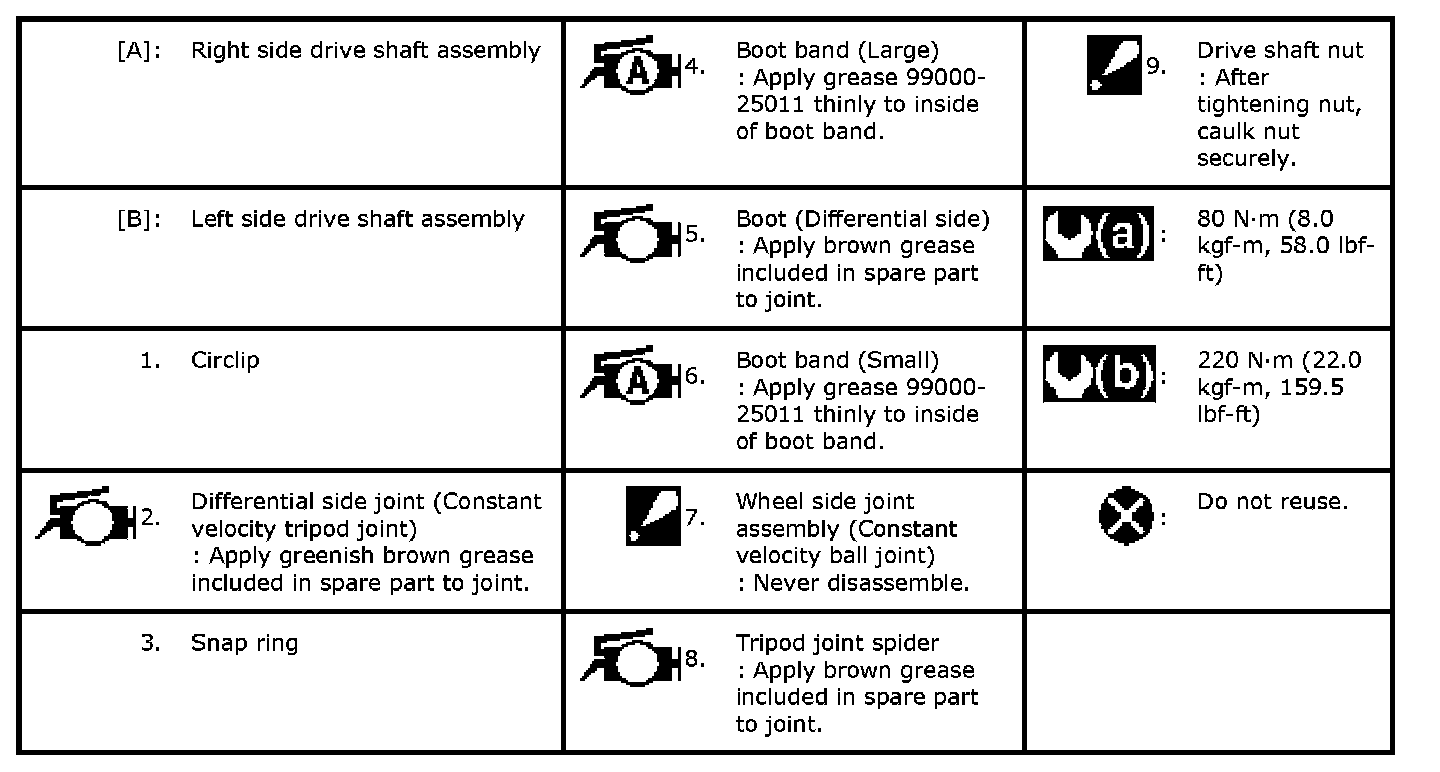

Tightening Torque Specifications

NOTE:
The specified tightening torque is also described in the following.
Rear Drive Shaft Components:Rear

Reference:
For the tightening torque of fastener not specified in this section, refer to Fastener Information.

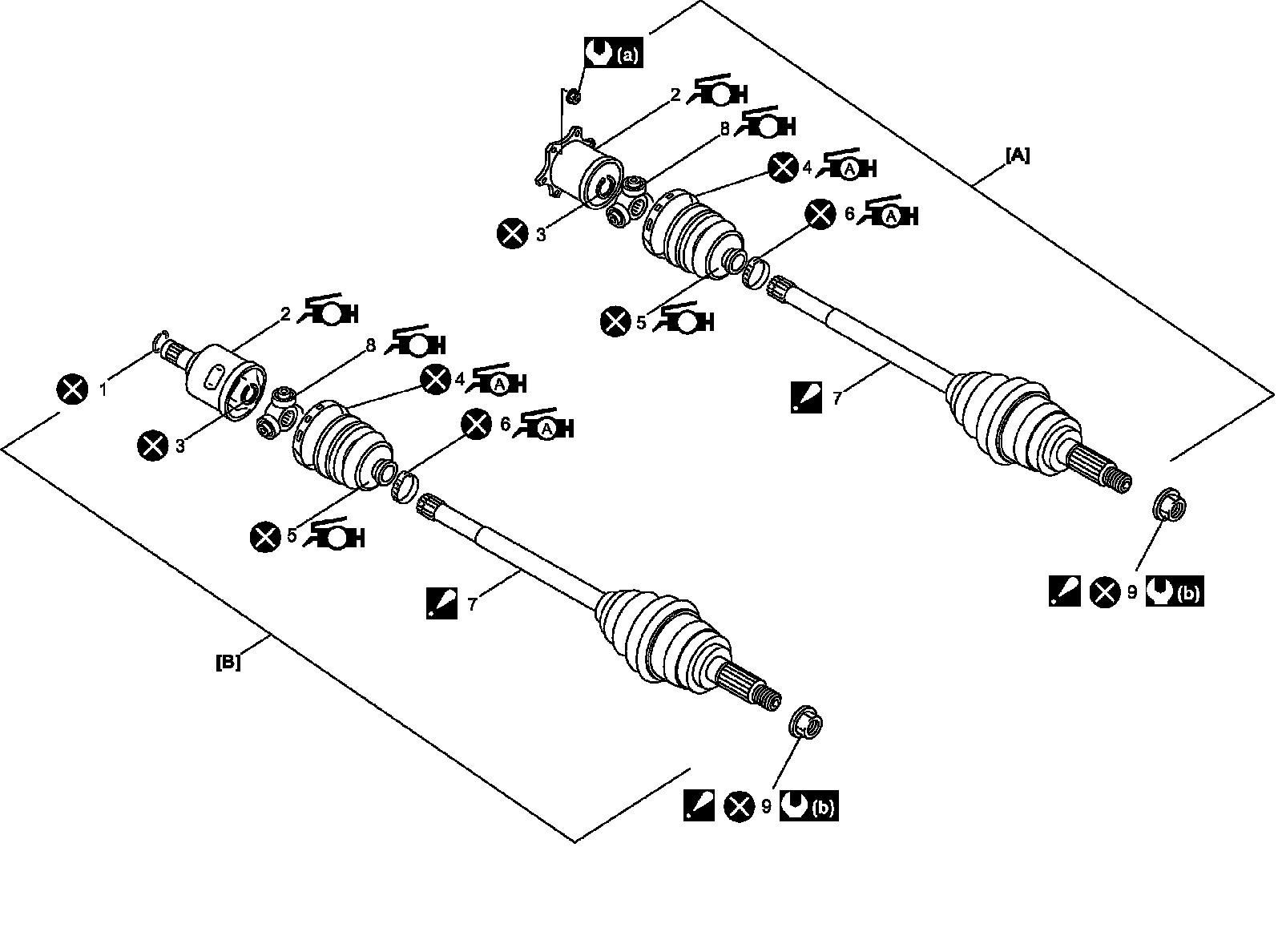

Rear Drive Shaft Components
