Front

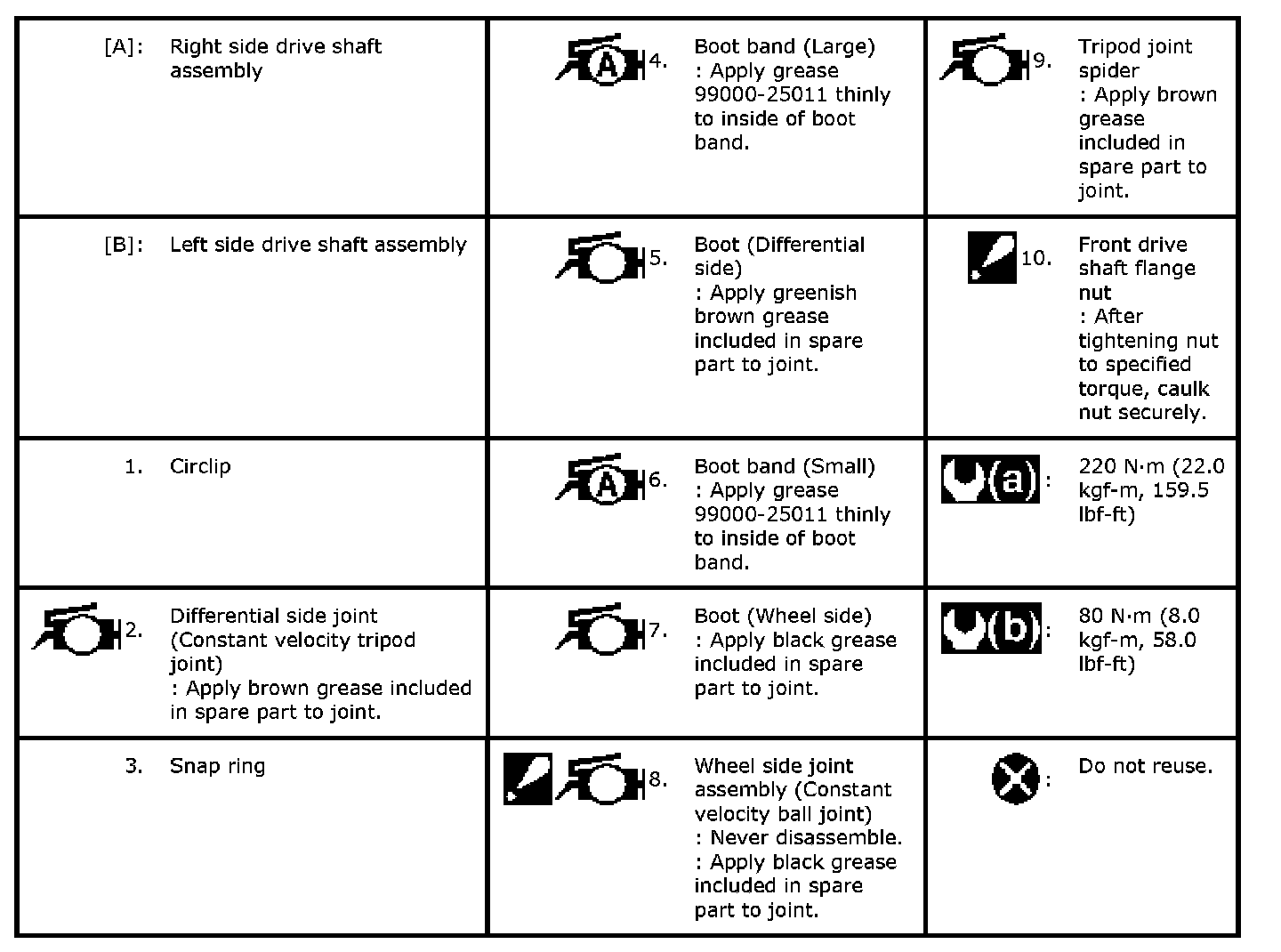

Tightening Torque Specifications

NOTE:
The specified tightening torque is also described in the following. Front Drive Shaft Components:Front

Reference:
For the tightening torque of fastener not specified in this section, refer to Fastener Information.

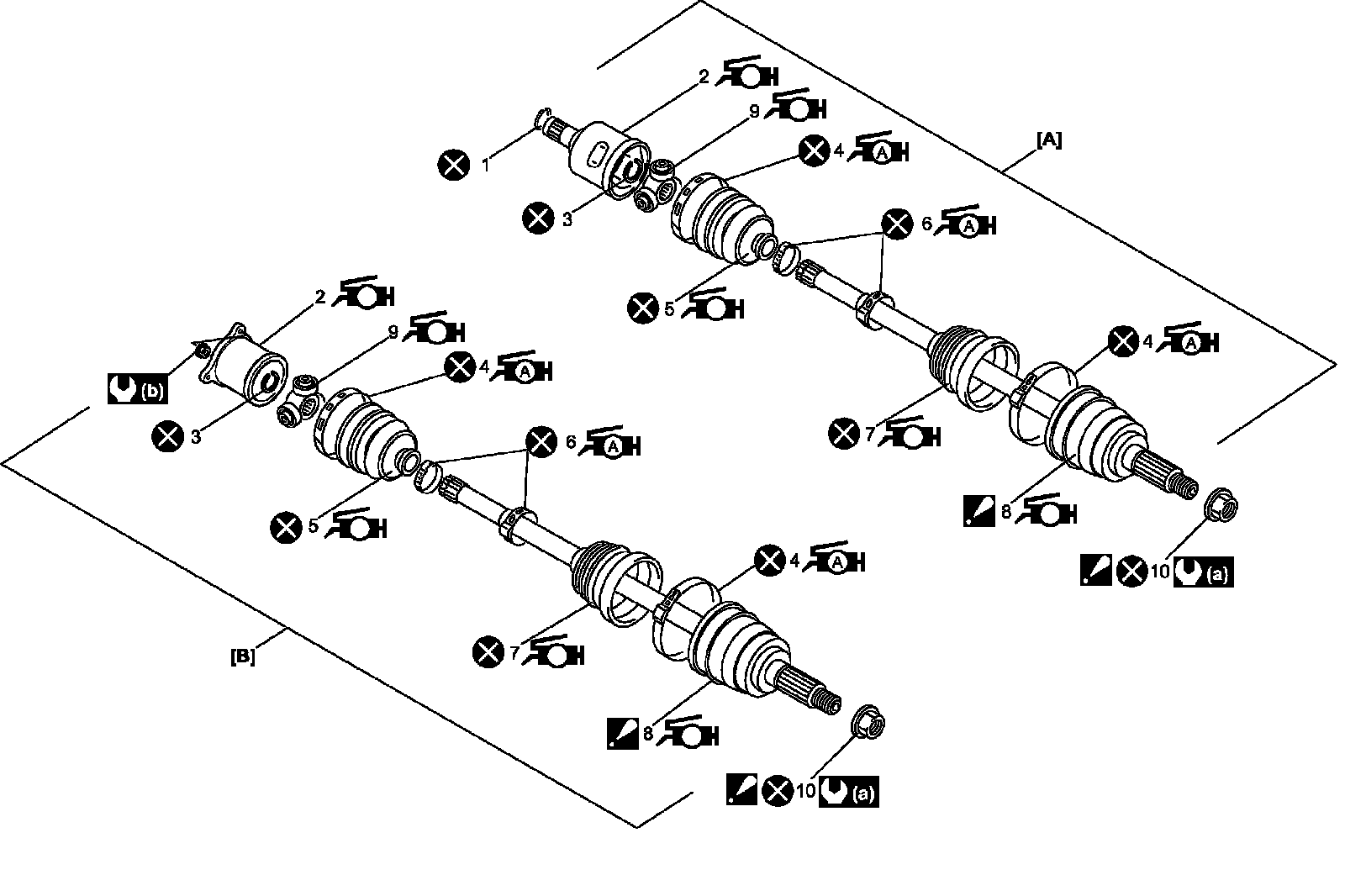

Front Drive Shaft Components
