Engine Control Module (ECM) Removal and Installation: Removal

  1. Disconnect negative cable from battery.
  2. Turn lock lever (1) to arrow direction until it stops and then disconnect connectors from ECM.
  3. Remove ECM and cover from bracket by removing their mounting bolts (2).

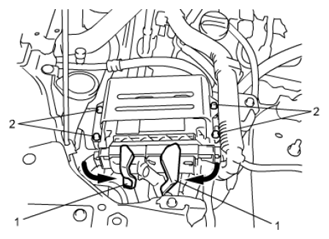

    Fig 1: Turning Lock Lever
    G06492638Courtesy of SUZUKI OF AMERICA CORP.
