Keyless Starting System

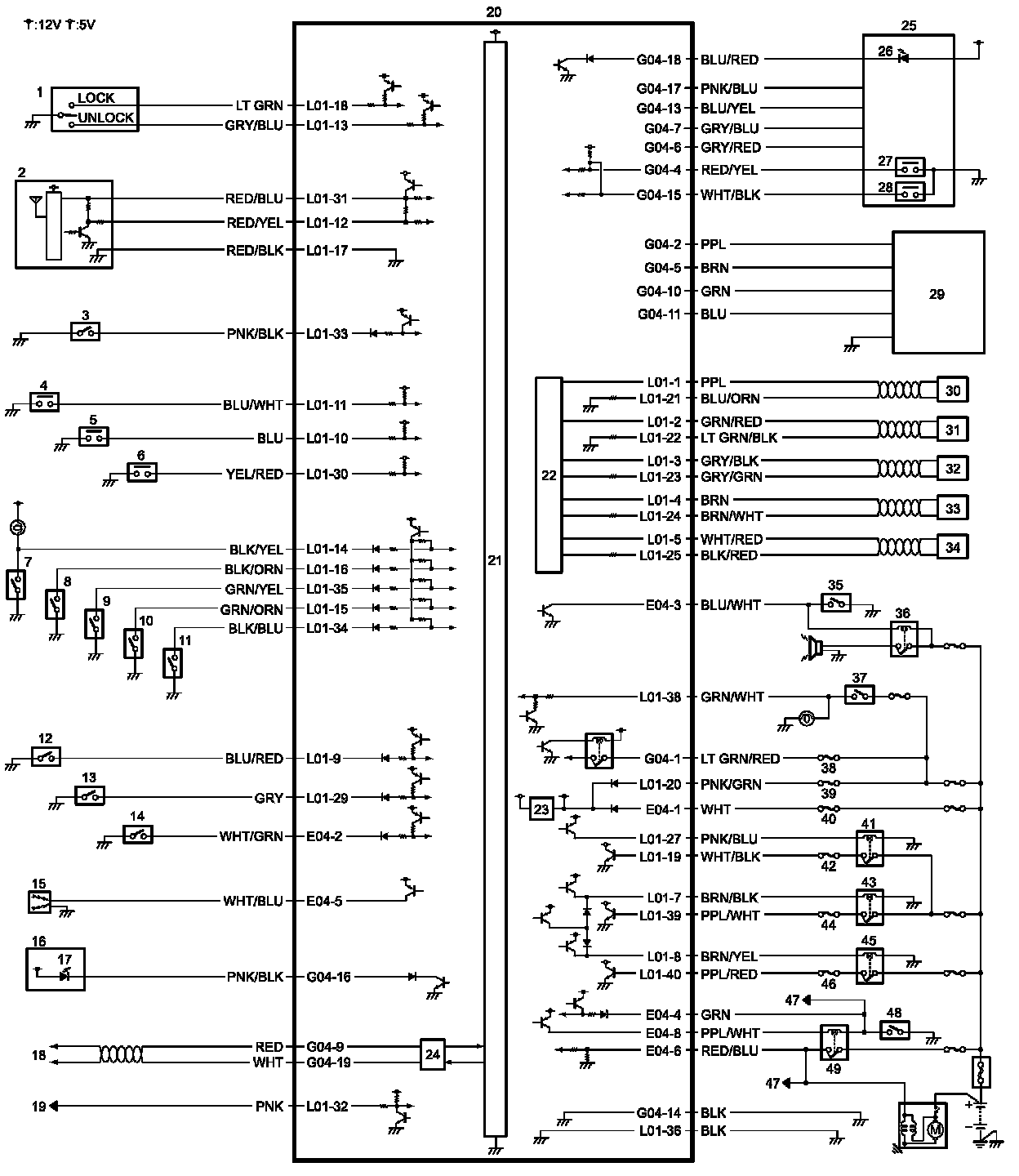

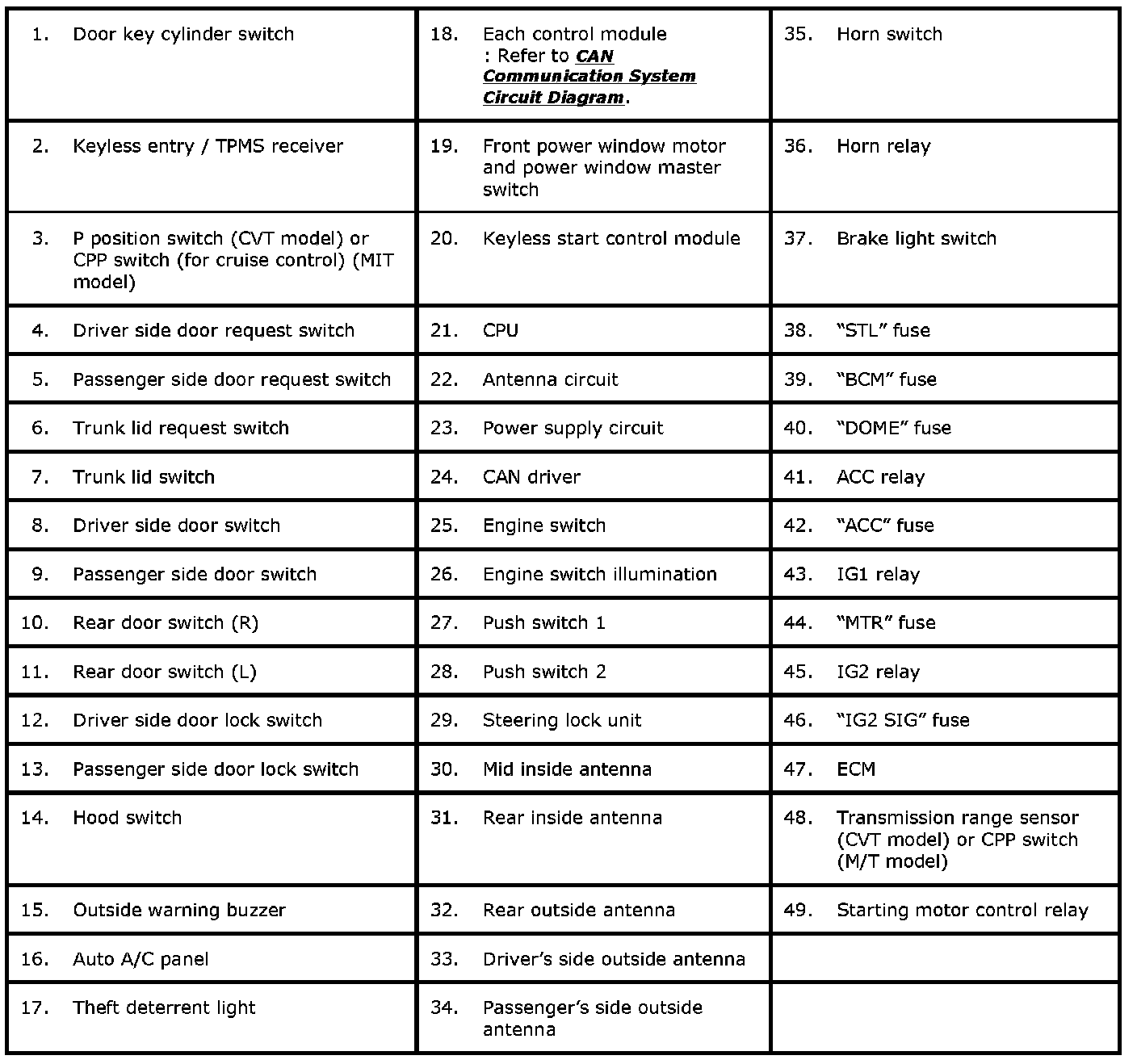

Keyless Start System Electric Wiring Circuit Diagram


Keyless Start System Electric Wiring Circuit Diagram:
