Engine and Emission Control System Flow Diagram

Engine and Emission Control System Flow Diagram

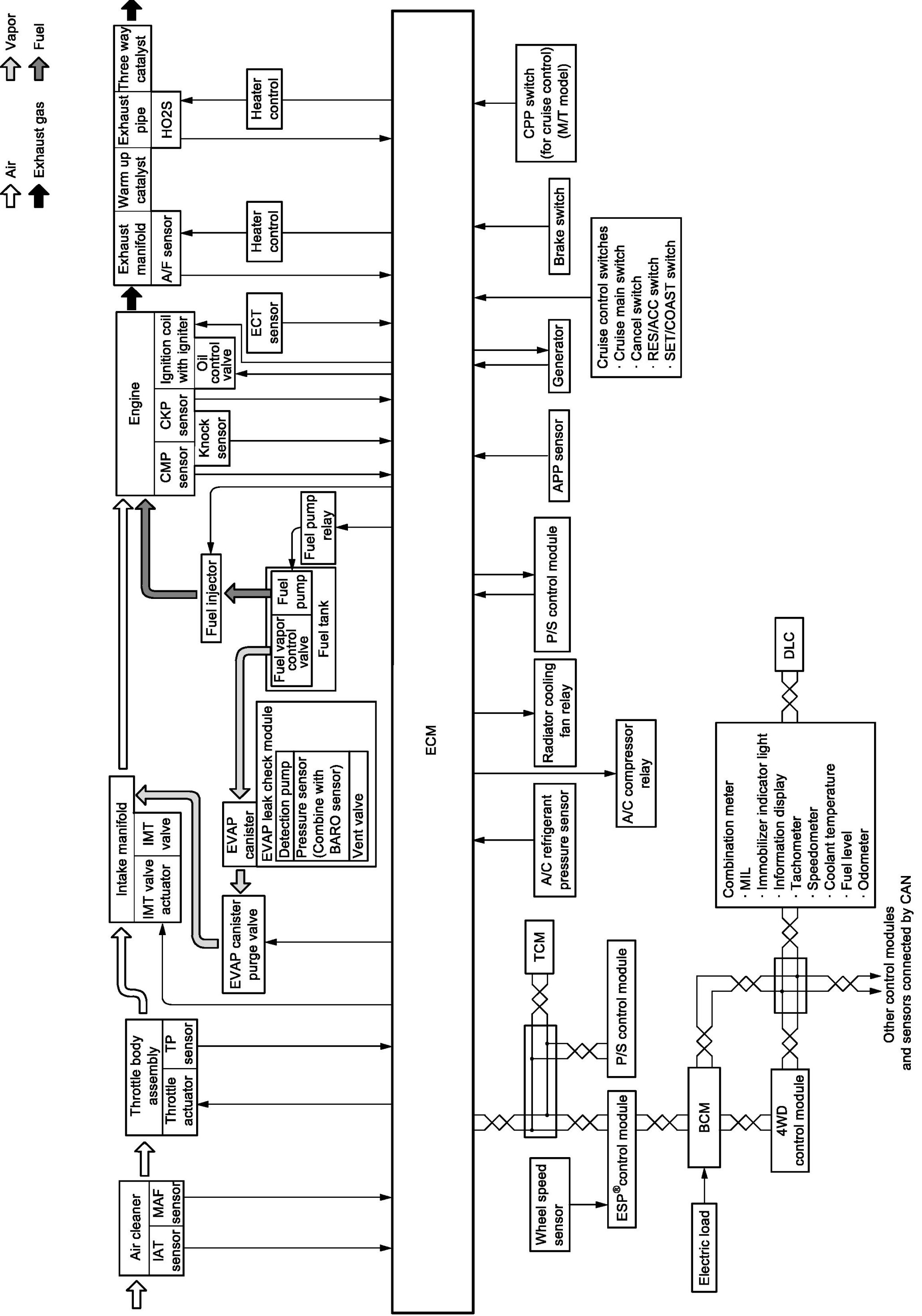

Engine And Emission Control System Flow Diagram:
