Main Relay (Computer/Fuel System)
>>
Locations
>>
Individual Circuit Fuse Box No. 1, Power Integration (In Relay Box No. 1)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

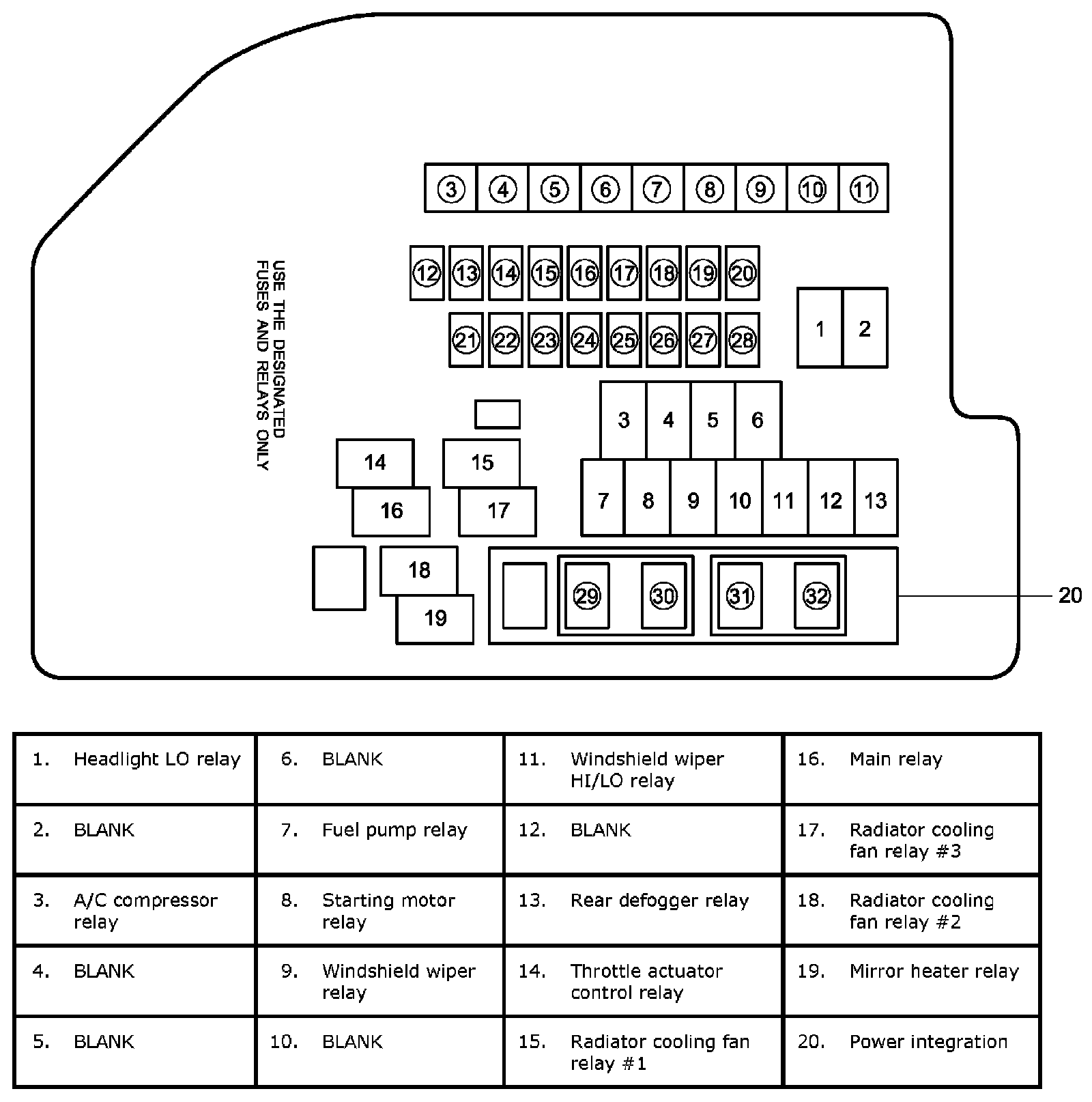

Individual Circuit Fuse Box No. 1, Power Integration (In Relay Box No. 1)
Individual Circuit Fuse Box No. 1, Power Integration (In Relay Box No. 1)
Fuse Box No. 1:
