Seat Belt Systems

Tightening Torque Specifications

NOTE:
The specified tightening torque is described in the following.

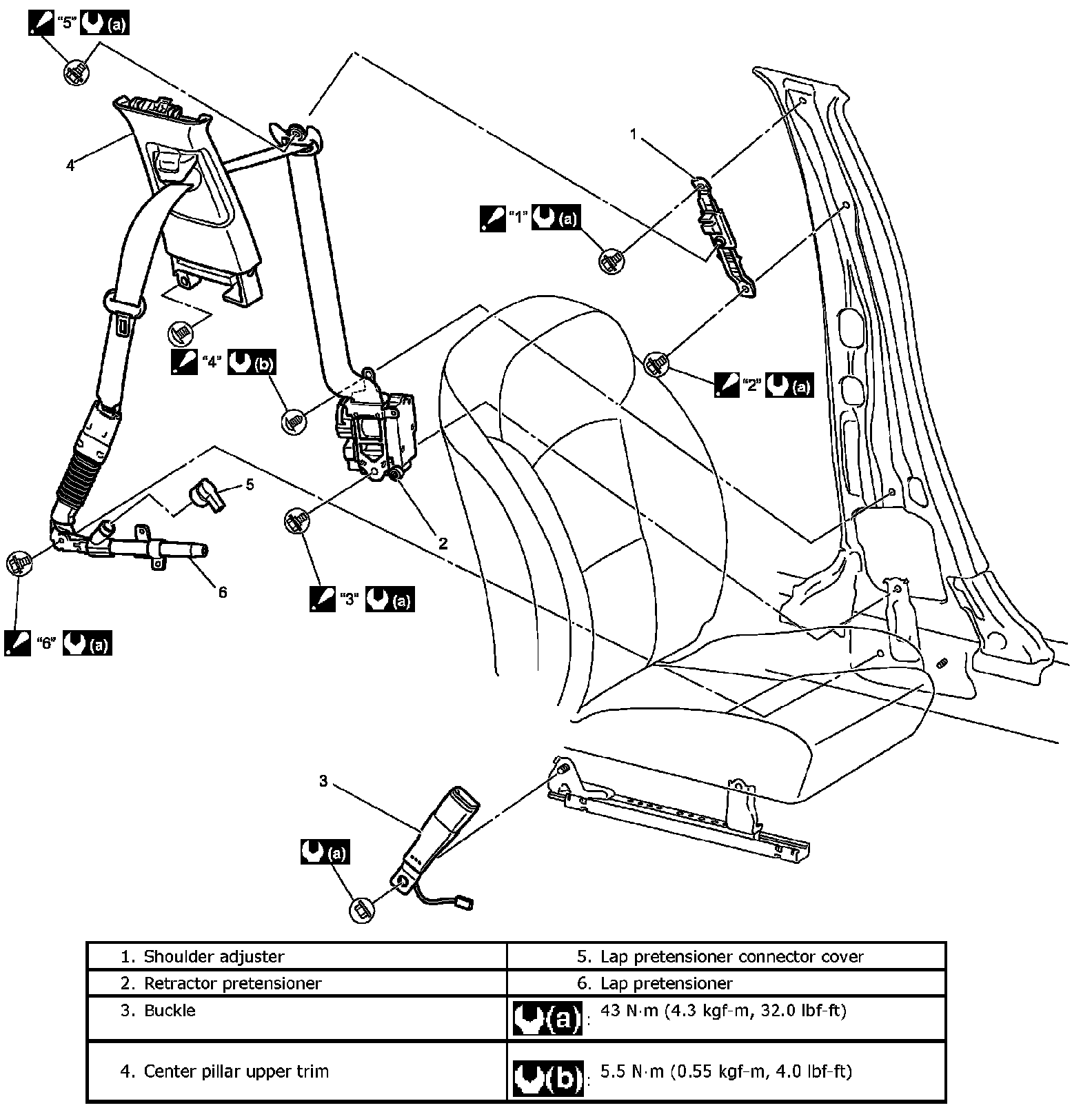

Front Seat Belt Components

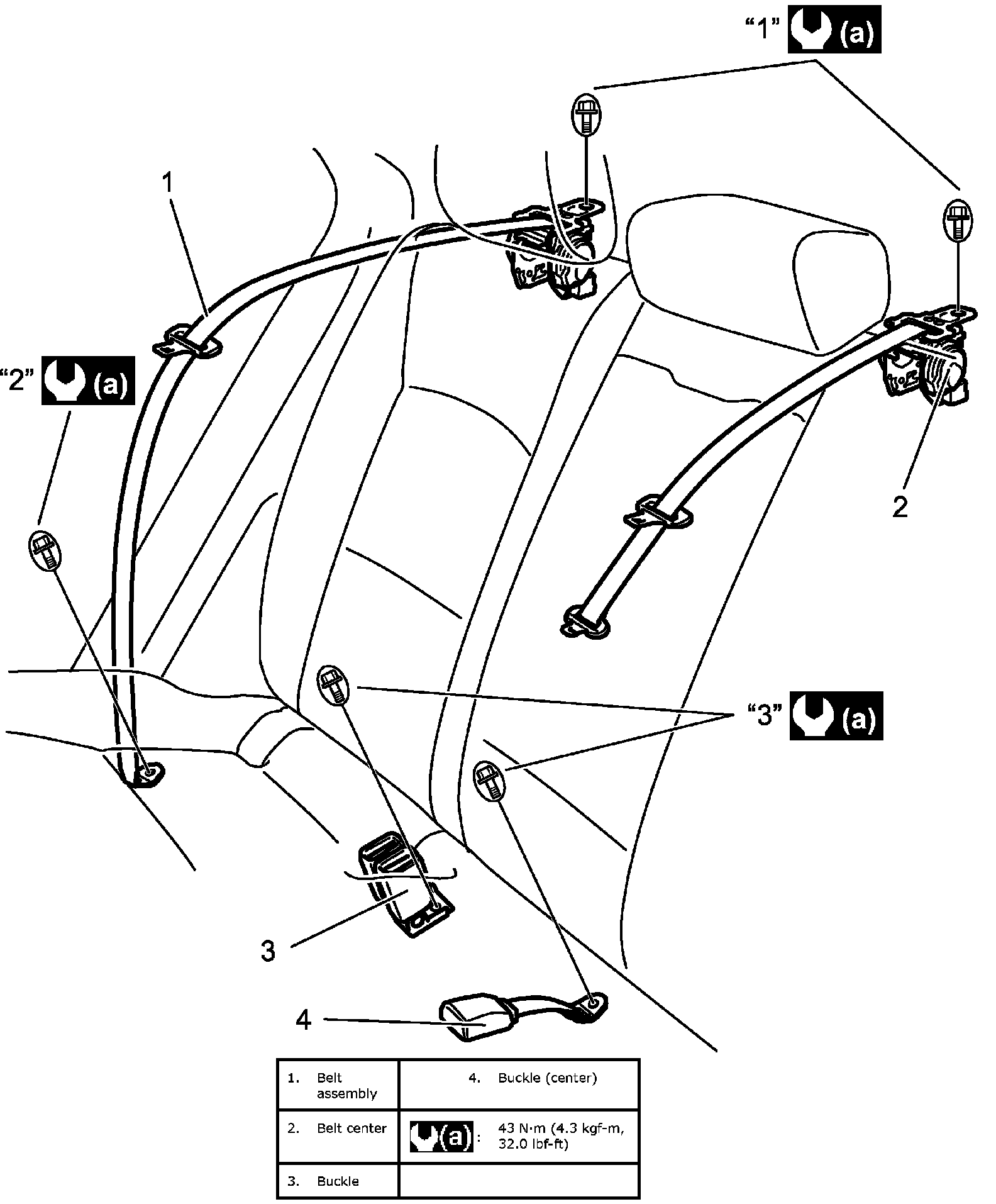

Rear Seat Belt Components
