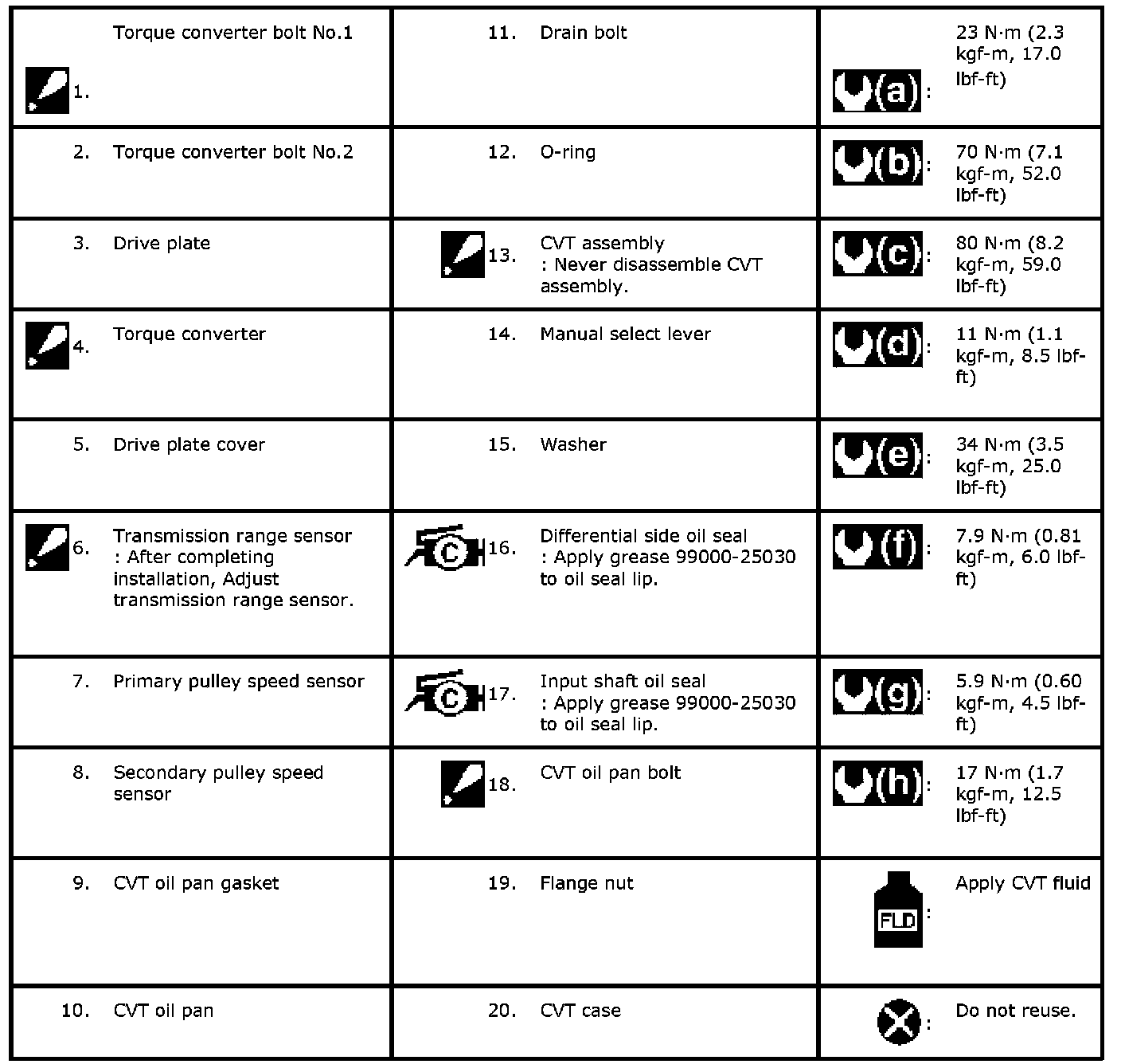

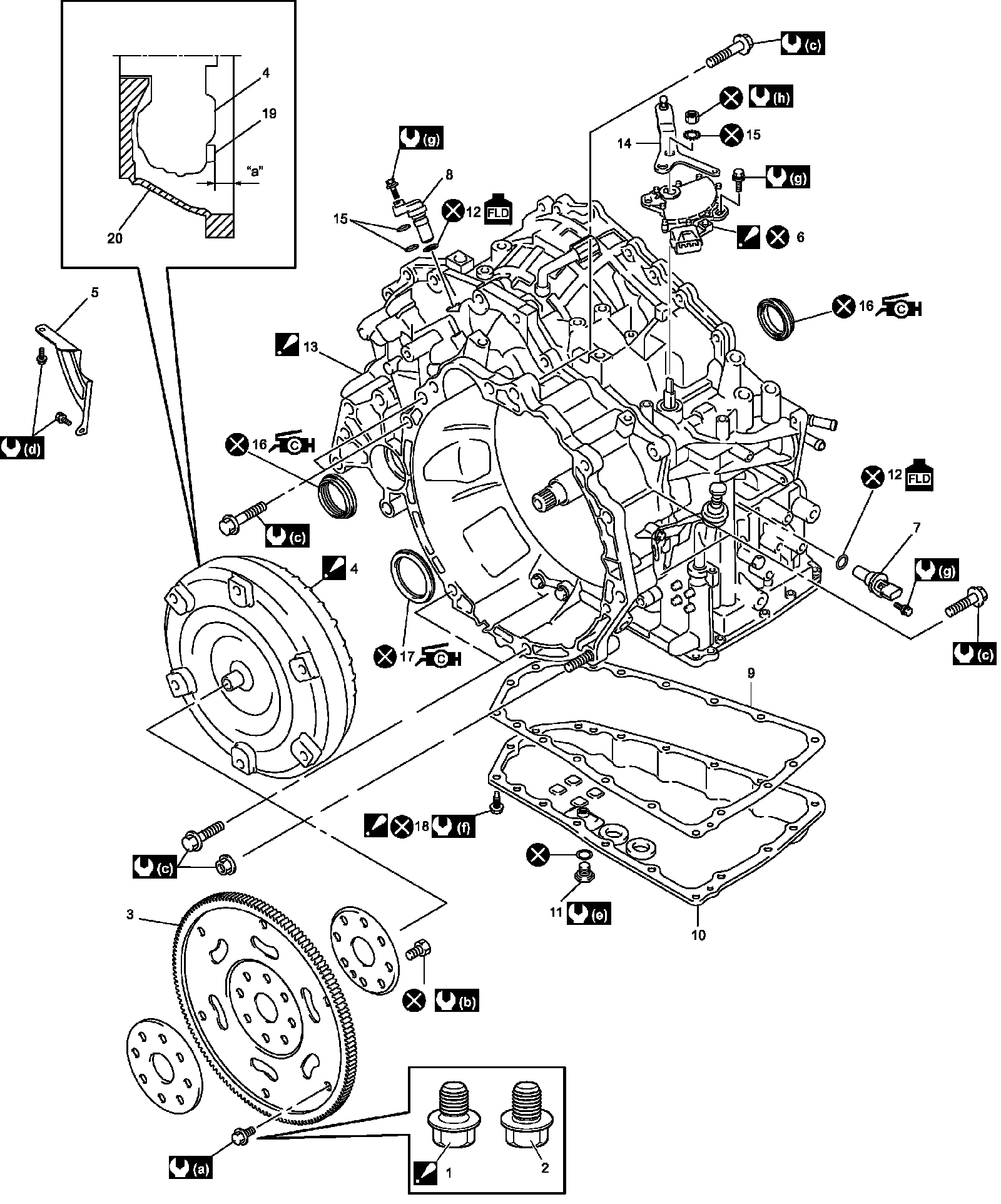

CVT Assembly Components

CVT Assembly Components

CAUTION:
Check that distance "a" is more than 17.0 mm (0.669 in.) when installing.
