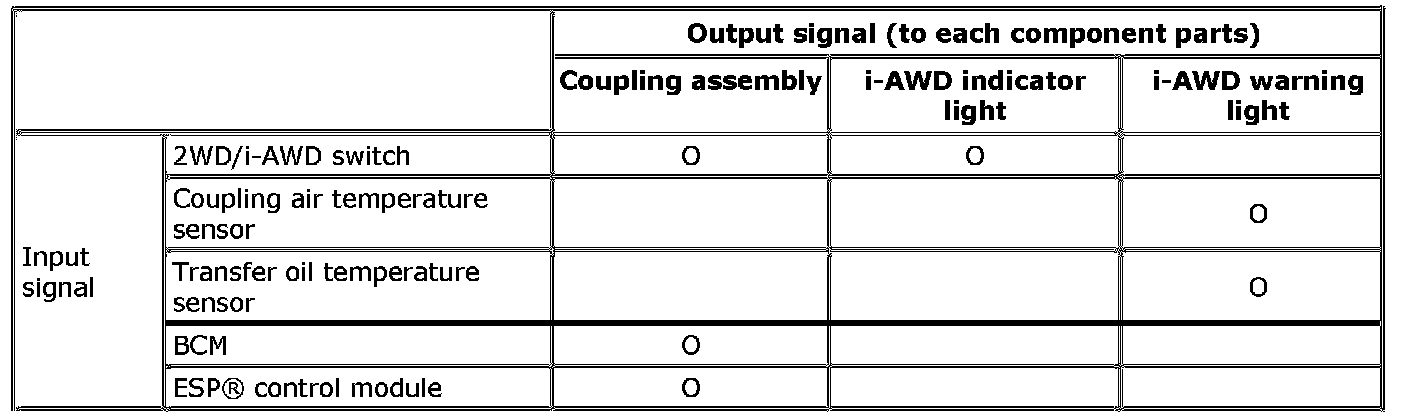

4WD Control Module Input / Output Signal Table

4WD Control Module Input / Output Signal Table
4WD control module outputs the following signals to coupling assembly, indicator, warning light, according to the 2WD/i-AWD switch operation.
