Hatchback Model

Floor L: Floor Harness, Coupling Harness, Seat Sensor (R) Wire, Seat Sensor (L) Wire / Q: Side Curtain-Air Bag Wire, Side-Air Bag (Driver Side) Harness, Side-Air Bag (Passenger Side) Harness / R: Fuel Pump Wire (Hatchback Model)

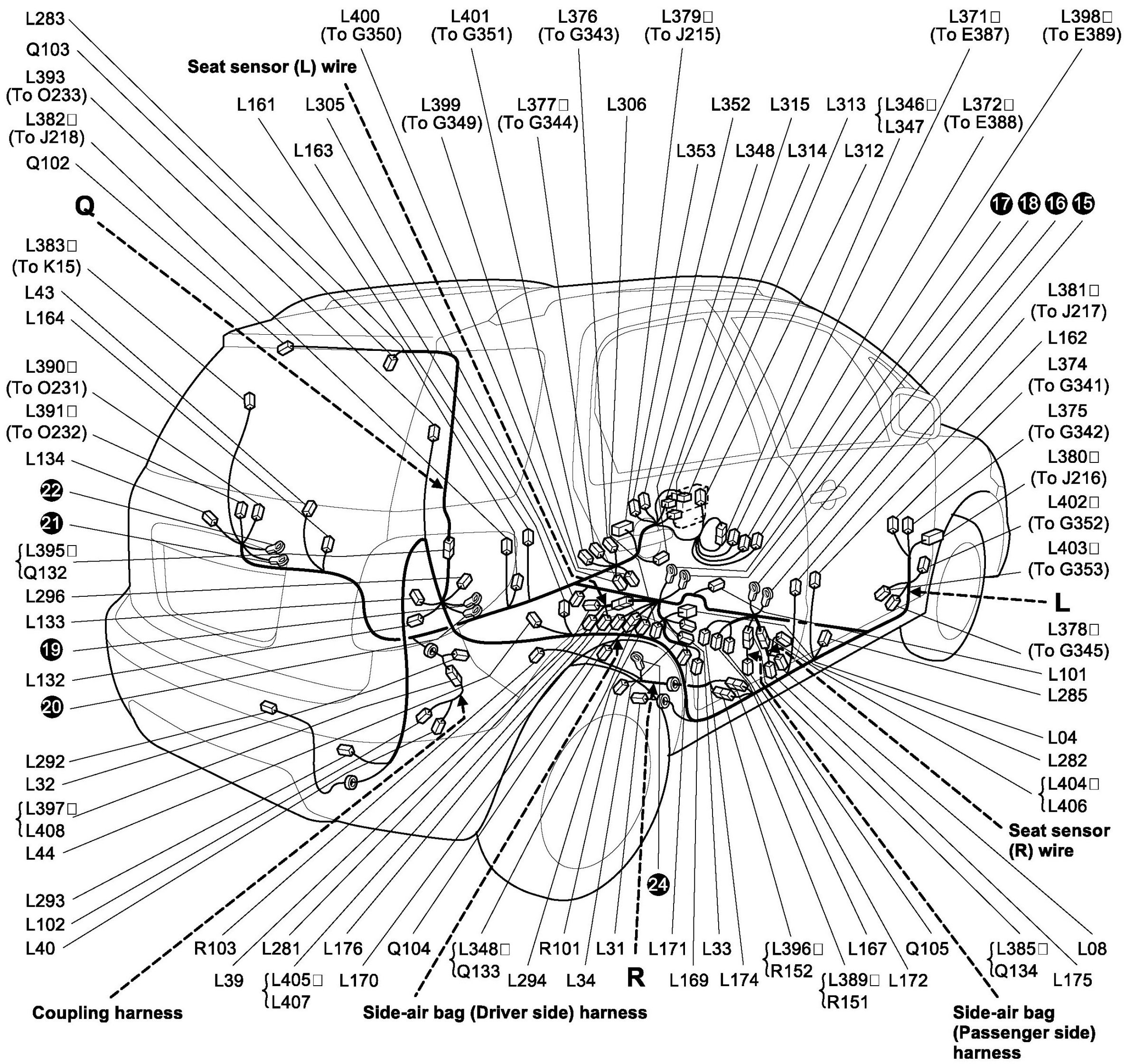

L: Floor Harness, Coupling Harnes, Seat Sensor (R) Wire, Seat Sensor (L) Wire / Q: Side Curtain-Air Bag Wire, Side-Air Bag (Driver Side) Harness, Side-Air Bag (Passenger Side) Harness / R: Fuel Pump Wire (Hatchback Model):

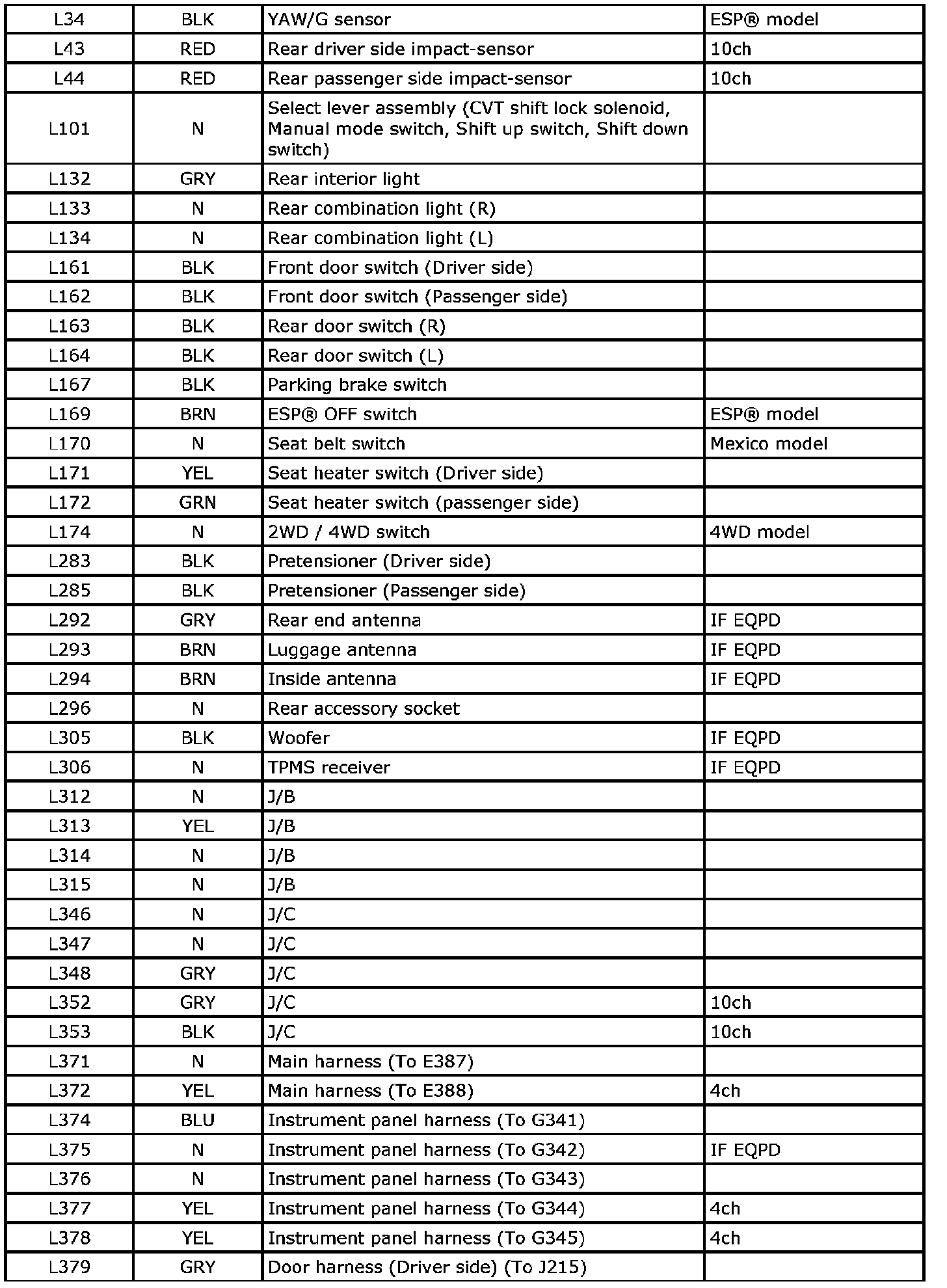

L: Floor Harness Index (Part 1):




L: Floor Harness Index (Part 2):

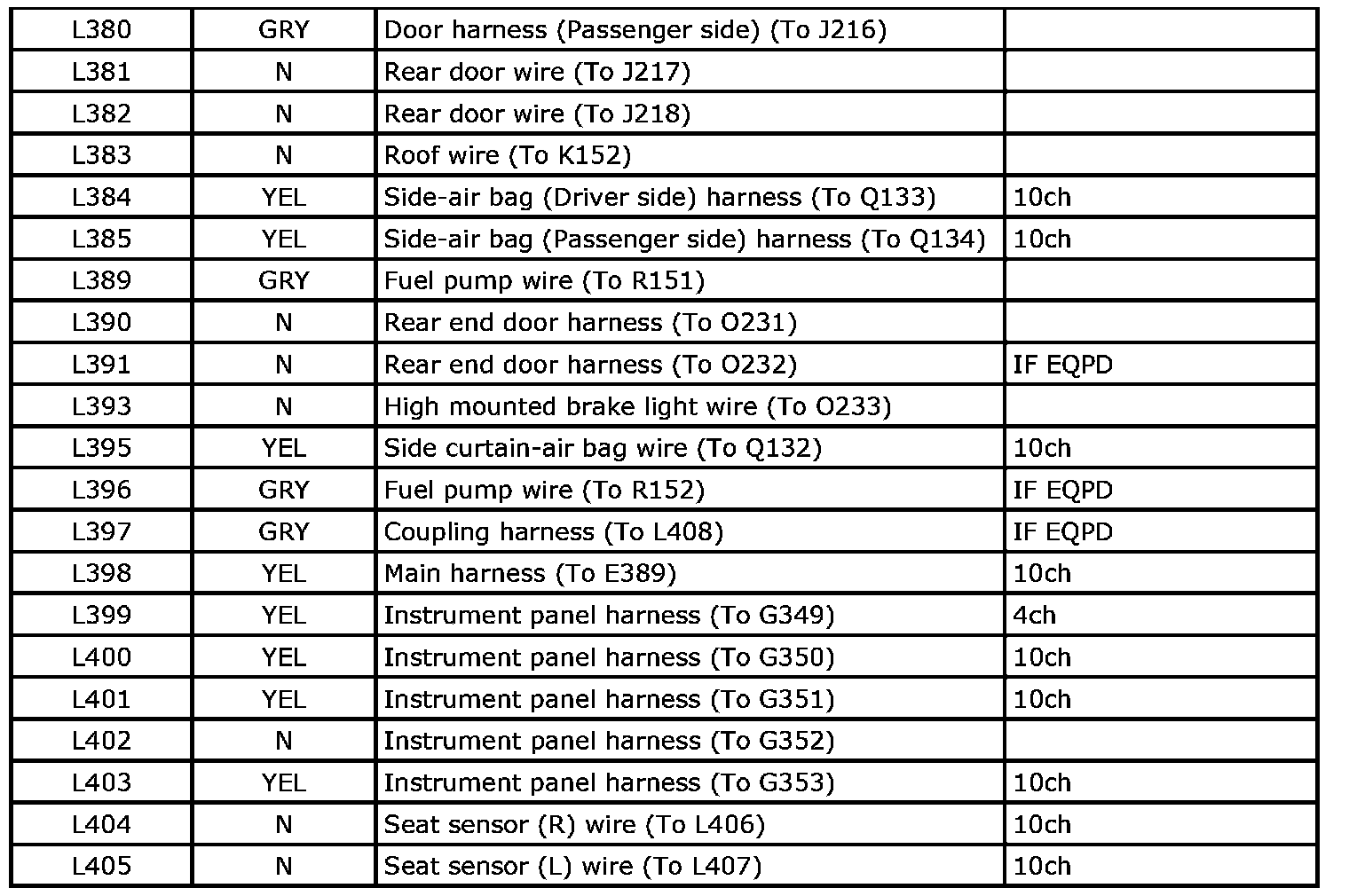

L: Floor Harness Index (Part 3):




L: Seat Sensor (R) Wire Index:




L: Seat Sensor (L) Wire Index:
