Electronic Shift Control System Component Location

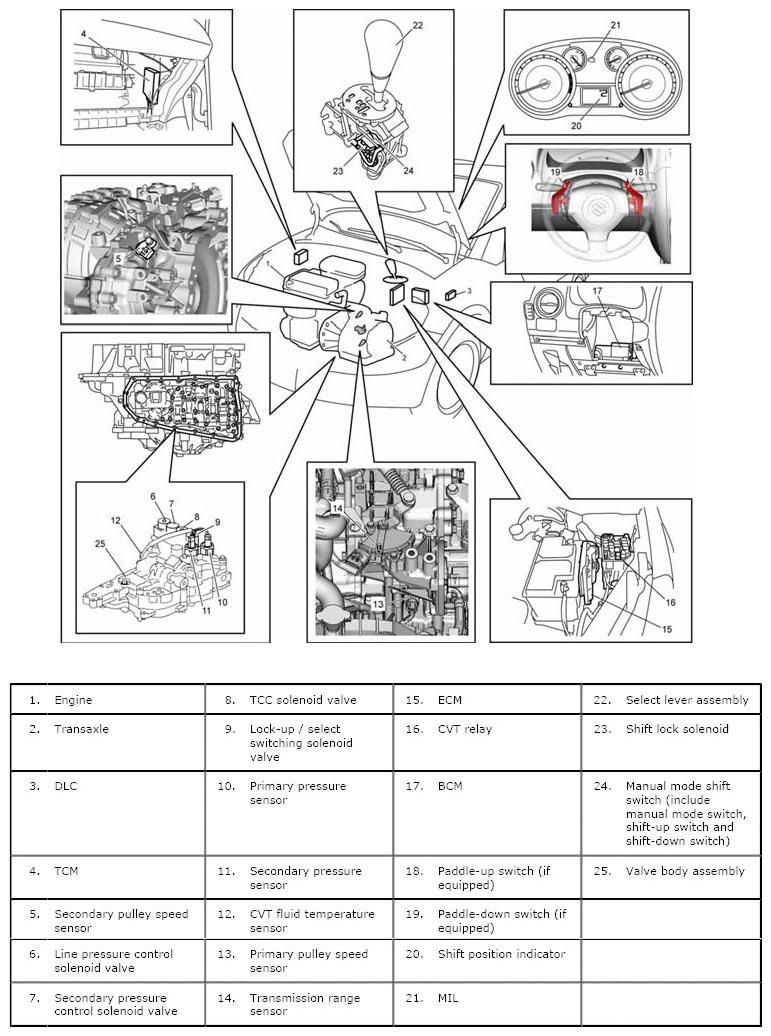

Fig 1: Identifying Electronic Shift Control System Component Location
G06866730Courtesy of SUZUKI OF AMERICA CORP.
