CVT Assembly Components

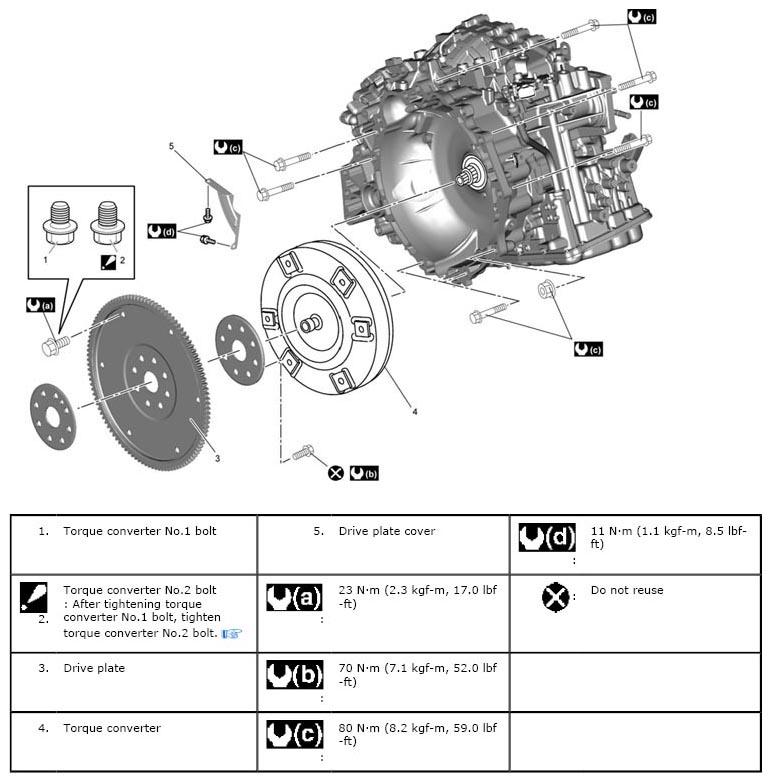

Fig 1: Identifying CVT Assembly Components (1 Of 2)
G06866813Courtesy of SUZUKI OF AMERICA CORP.

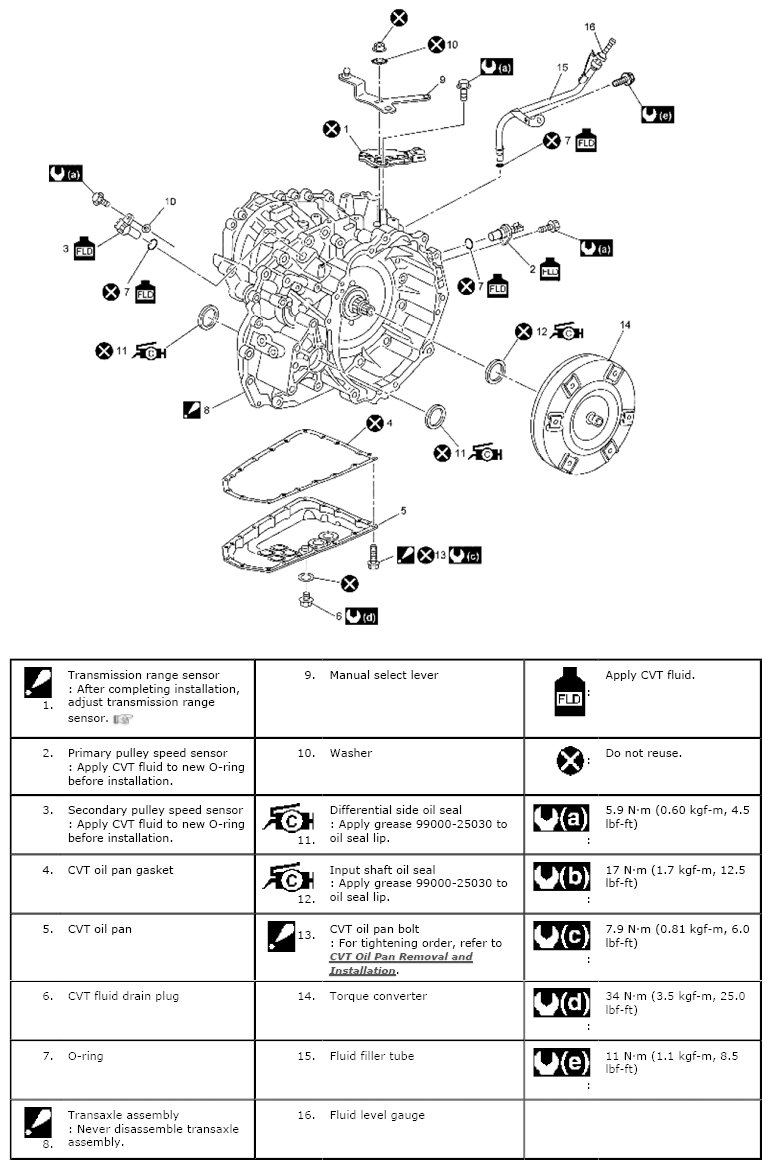

Fig 2: Identifying CVT Assembly Components (2 Of 2)
G06866814Courtesy of SUZUKI OF AMERICA CORP.
