Front Door Window Components

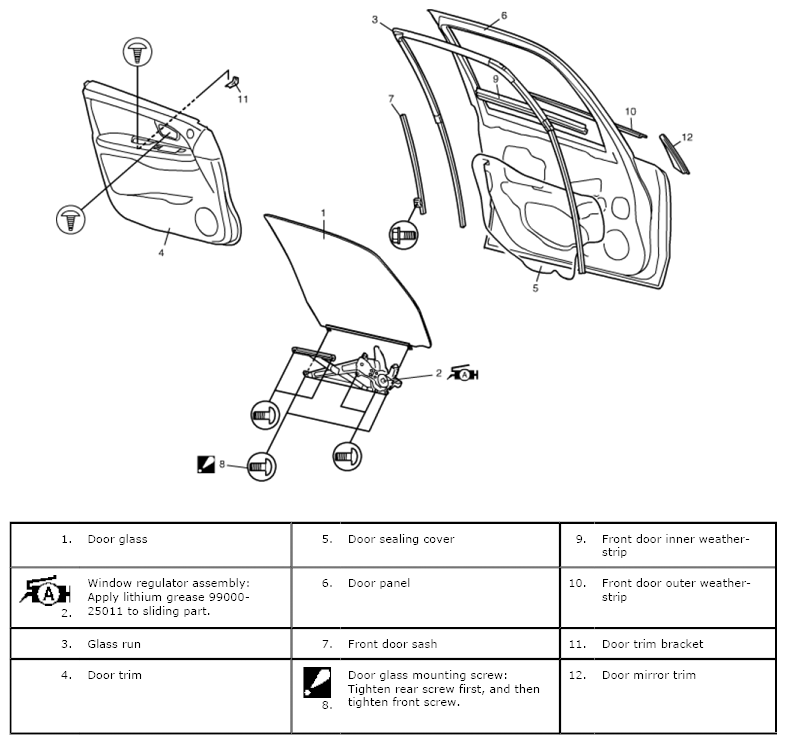

Fig 1: Identifying Front Door Window Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
