Hazard Warning Switch Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

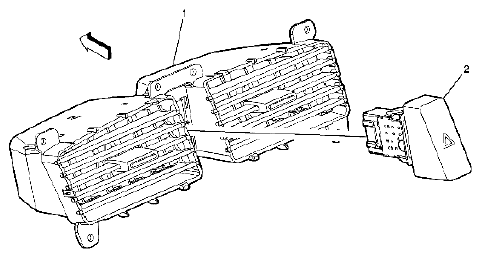

Fig 1: Identifying Instrument Panel Center Air Outlet Assembly & Hazard Warning Switch

Courtesy of SUZUKI OF AMERICA CORP.

HAZARD WARNING SWITCH REPLACEMENT REFERENCE

Callout	Component Name
1	Instrument Panel Center Air Outlet Assembly Refer to INSTRUMENT PANEL CENTER AIR OUTLET REPLACEMENT .
2	Hazard Warning Switch Tip: Squeeze tabs together and remove through front of the instrument panel center air outlet.
