Front Part

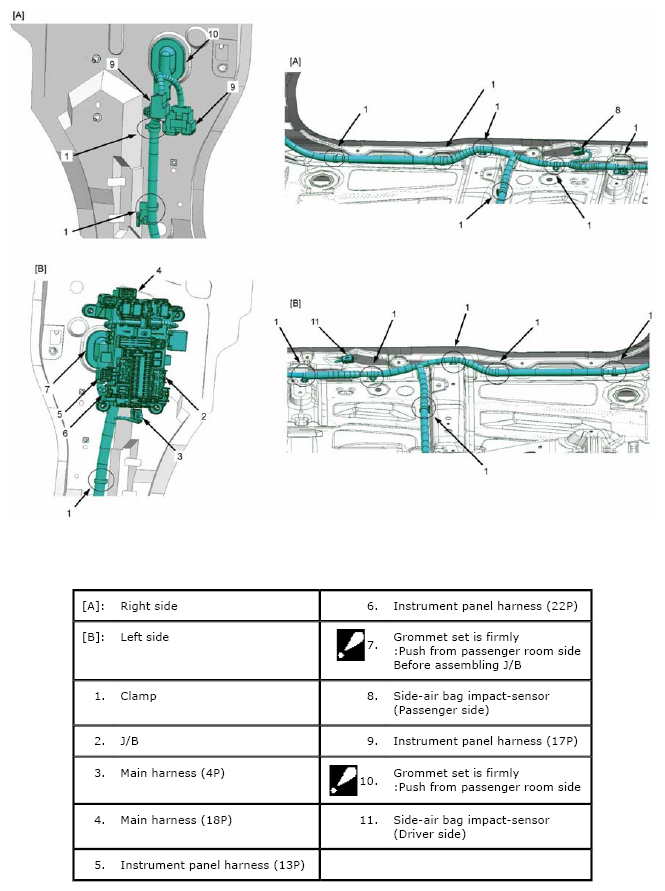

Fig 1: Instrument Panel Harness (Dash Side Panel) With Torque Specifications
G06499751Courtesy of SUZUKI OF AMERICA CORP.

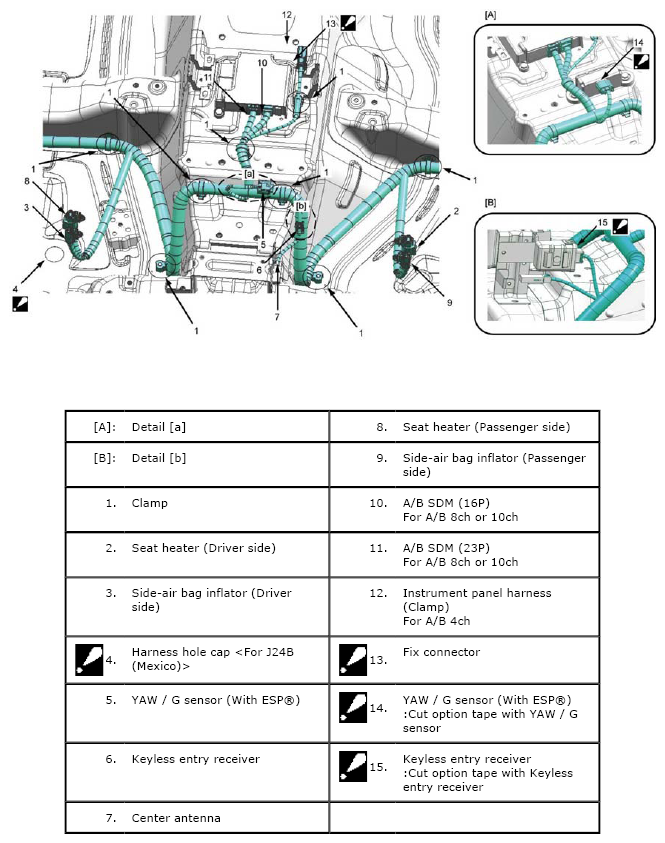

Fig 2: Identifying Floor Harness - Center
G06499752Courtesy of SUZUKI OF AMERICA CORP.
