Engine Compartment

Engine Compartment

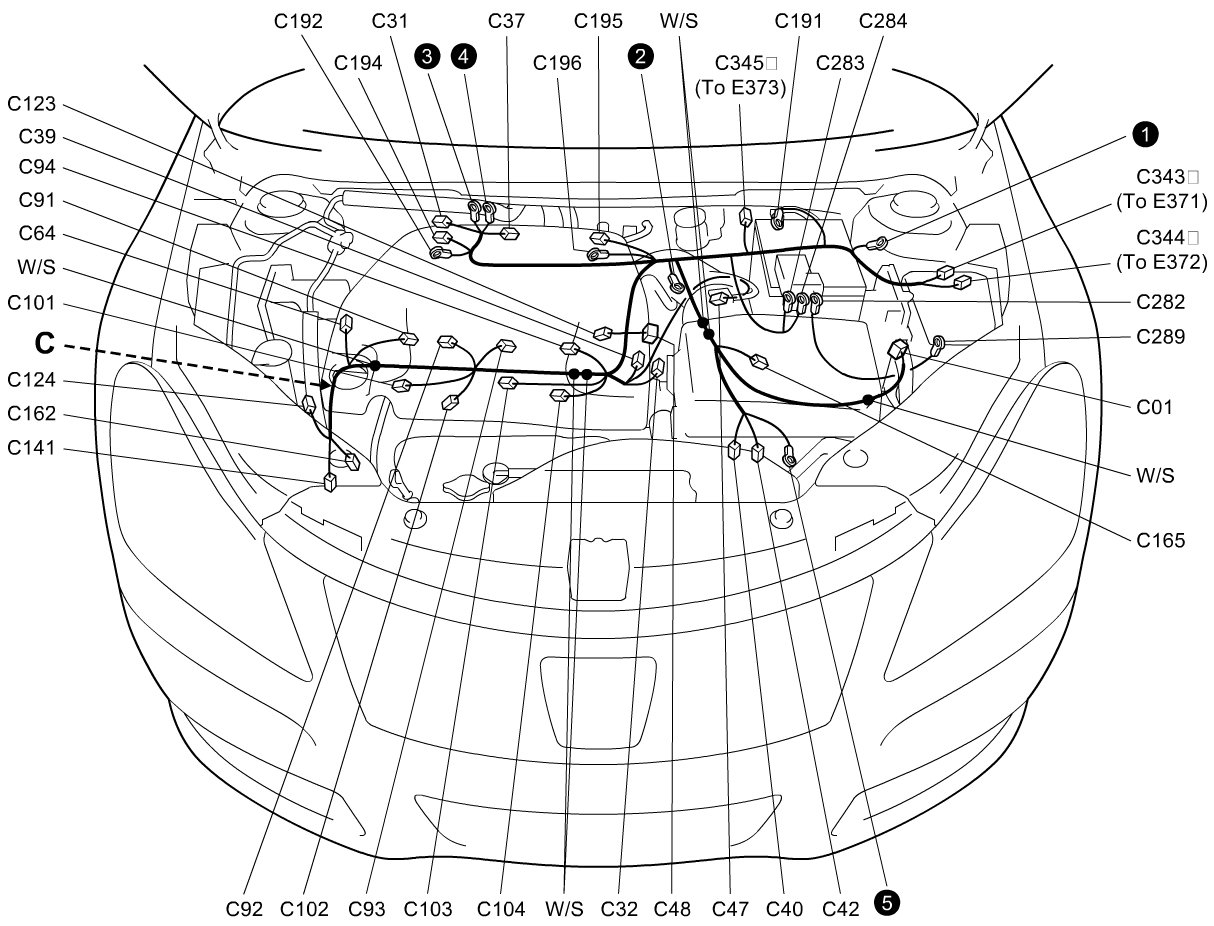

C: Engine Harness (M/T Model)

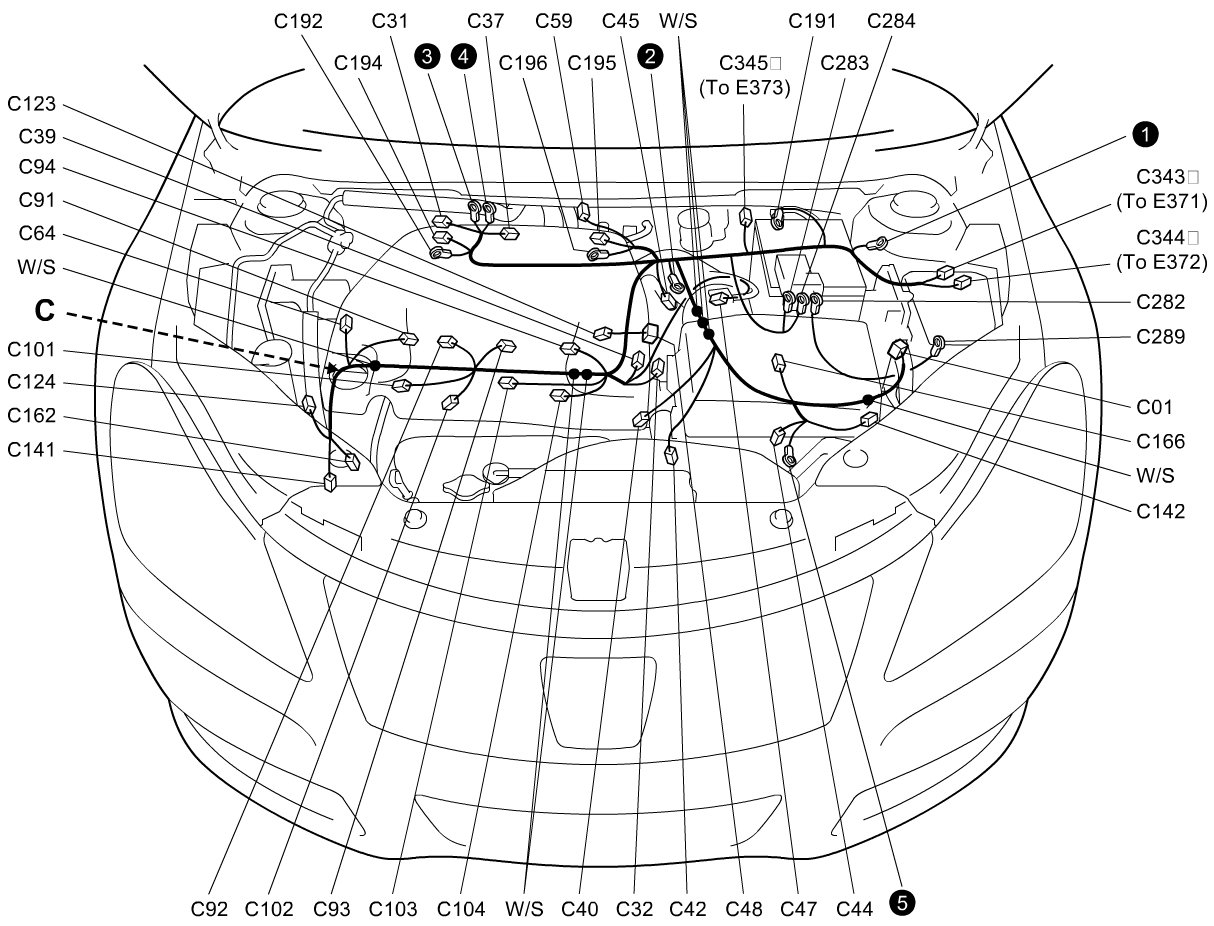

C: Engine Harness (CVT Model)

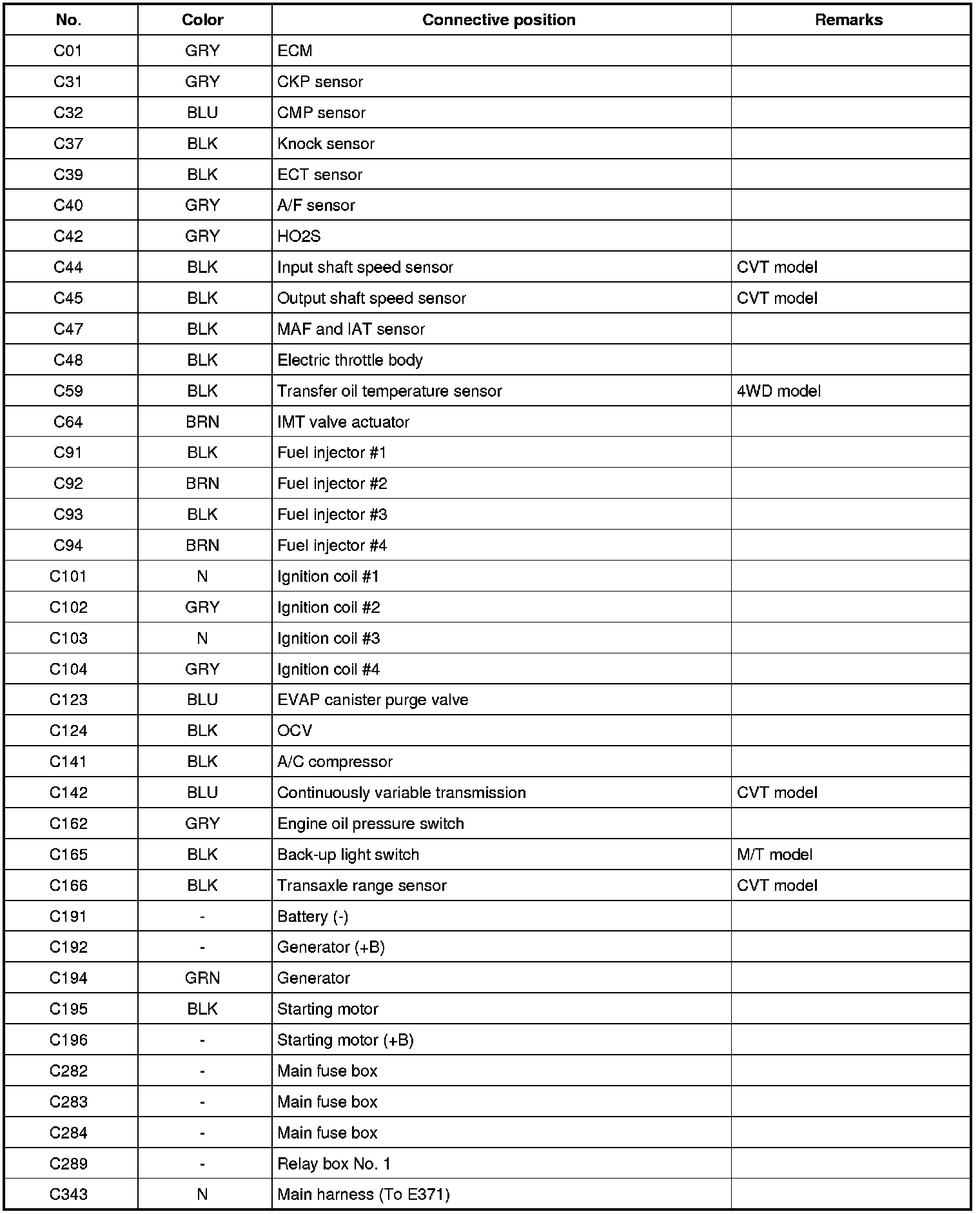

C: Engine Harness

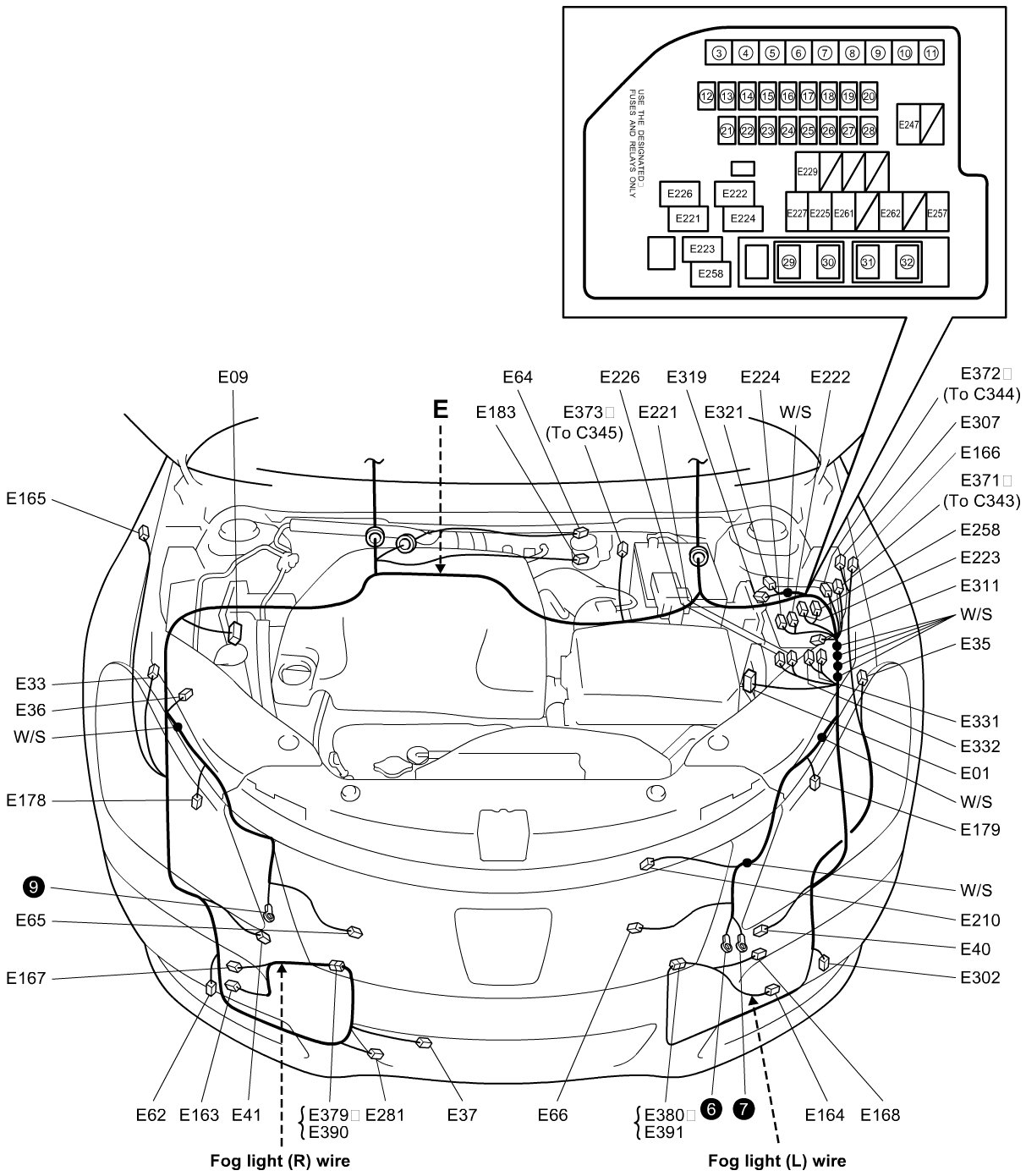

E: Main Harness, Fog Light Wire

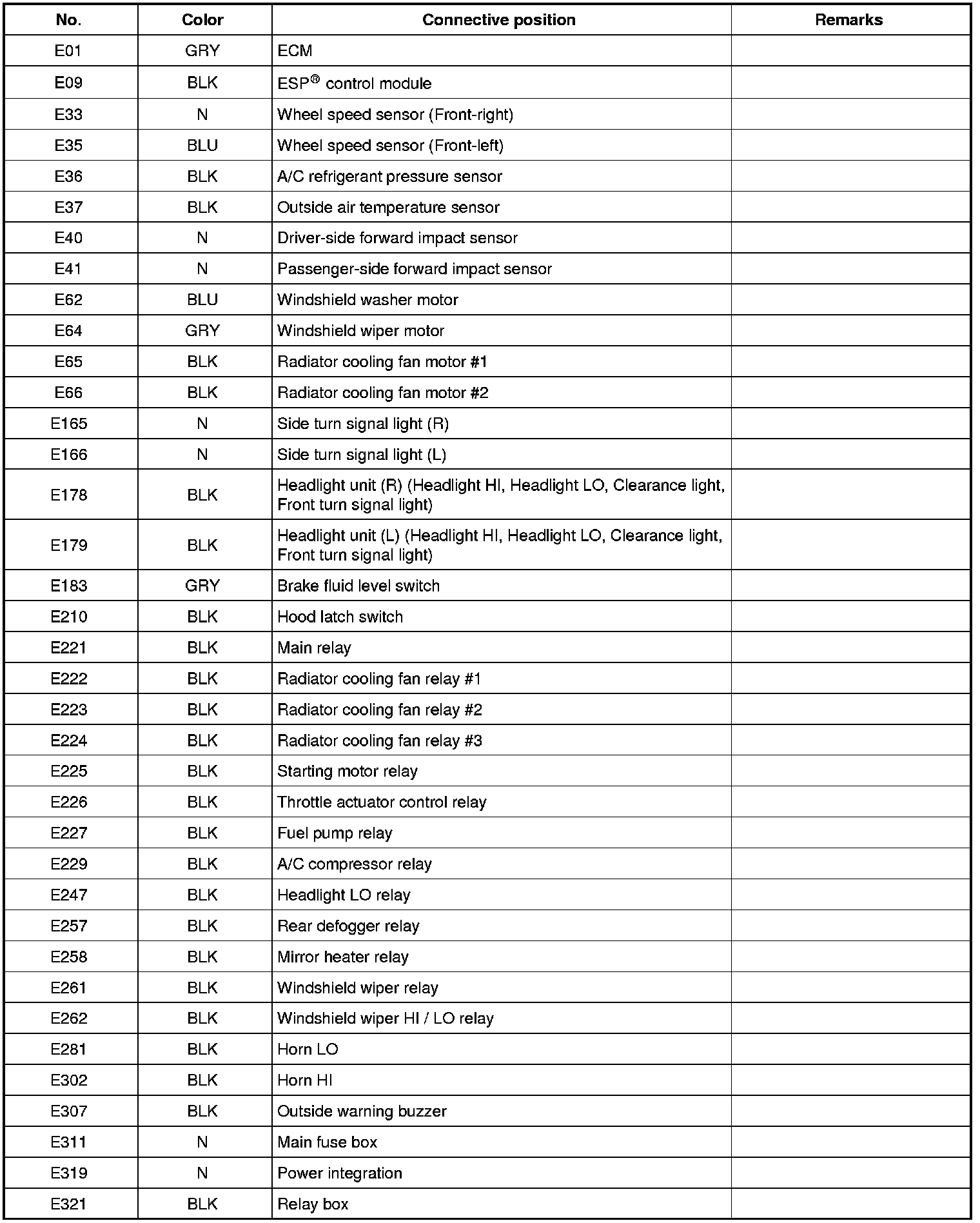

E: Main Harness

E: Fog Light (R) Wire

E: Fog Light (L) Wire
