Transmission Control Module (TCM) Wiring Diagram

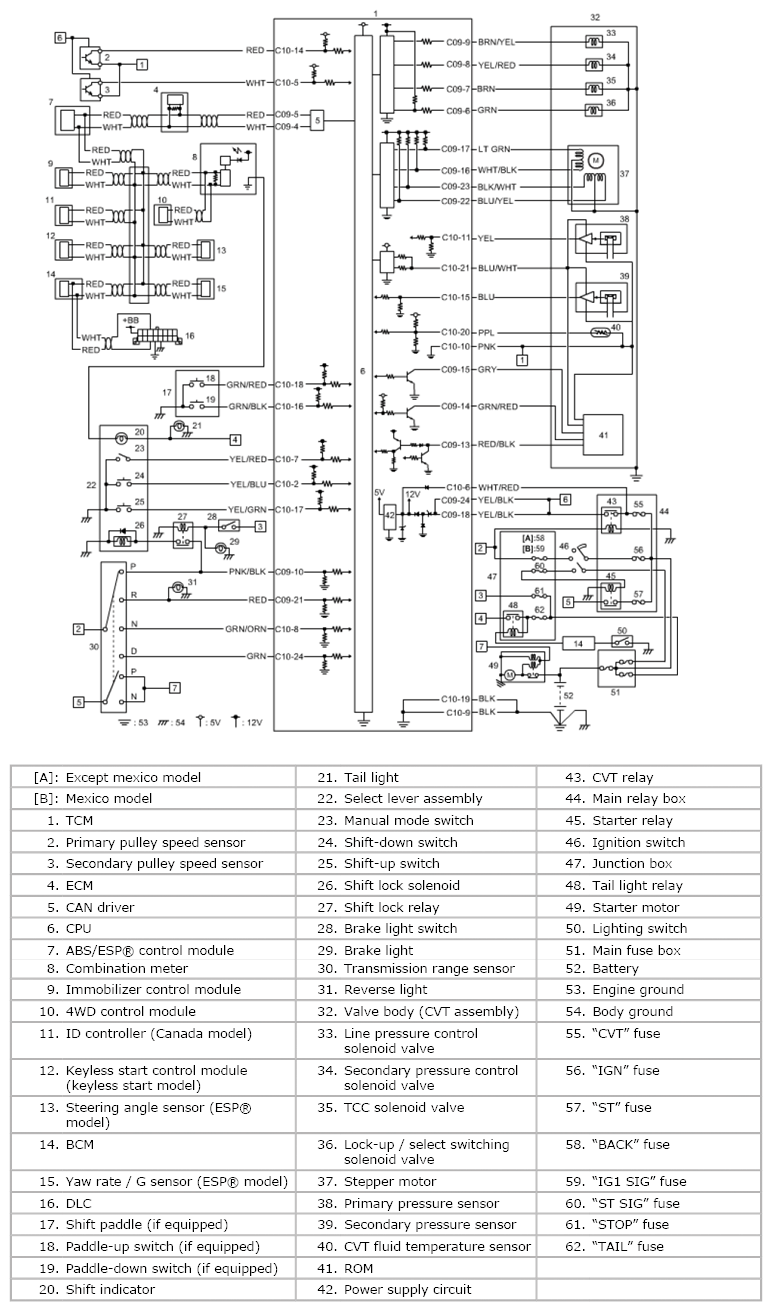

Fig 1: Transmission Control Module (TCM) Wiring Diagram
G06866728Courtesy of SUZUKI OF AMERICA CORP.
