Catalyst System Layout

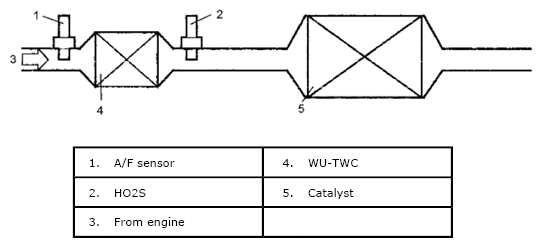

The system has A/F sensor and HO2S located upstream and downstream of WU-TWC as shown in figure.

Fig 1: Identifying Catalyst System Layout
G06866598Courtesy of SUZUKI OF AMERICA CORP.
