Engine Control System Circuit Diagram: Notes

NOTE: For identification of each cylinder, refer to PRECAUTIONS FOR IDENTIFICATION OF CYLINDER .

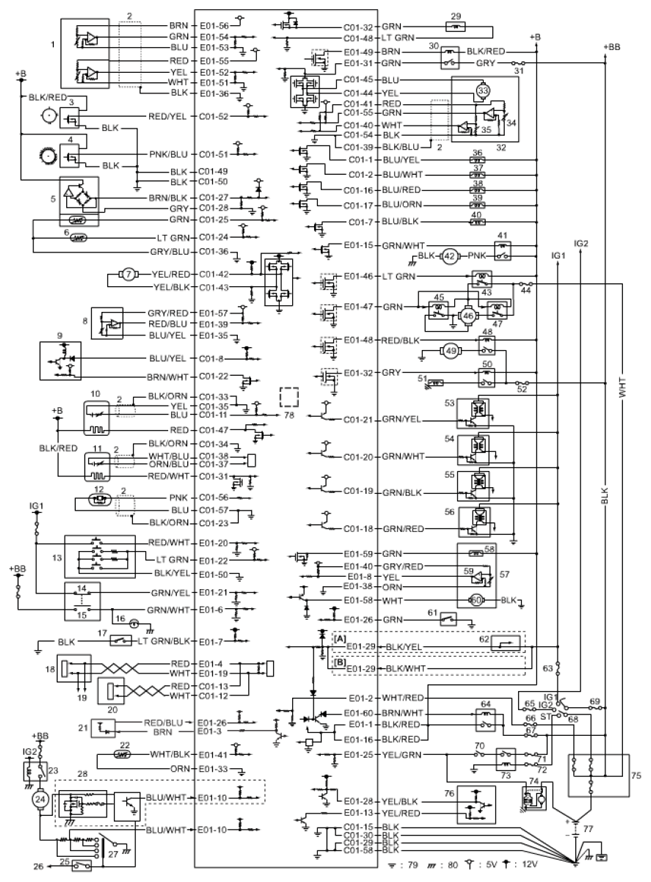

Fig 1: Engine Control System Circuit Diagram (1 Of 2)
G06866606Courtesy of SUZUKI OF AMERICA CORP.
Fig 2: Engine Control System Circuit Diagram (2 Of 2)
G06866607Courtesy of SUZUKI OF AMERICA CORP.
