Variable Valve Timing Solenoid: Service and Repair

Intake Valve Timing Control: Intake Valve Timing Control Solenoid Valve

Removal

1) Disconnect intake valve timing control solenoid valve connector.
2) Remove intake valve timing control solenoid valve bolt.

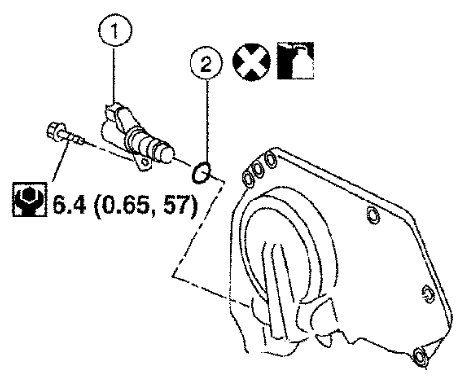

3) Remove intake valve timing control solenoid valve (1) and O-ring (2) from intake valve timing control solenoid valve cover.

CAUTION:
Do not reuse O-ring.





Installation

Installation is in the reverse order of removal.

CAUTION:

- Do not reuse O-rings.
- Lubricate the new O-ring for the intake valve timing control solenoid valve with clean engine oil before installing.
