Brake Pedal: Exploded View

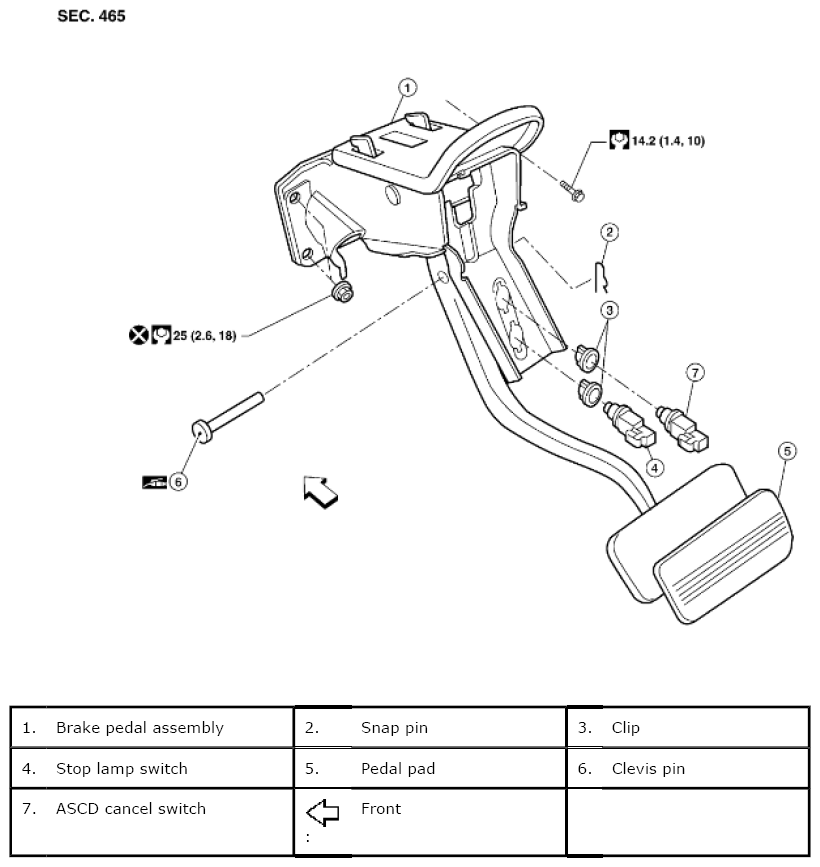

Fig 1: Exploded View Of Brake Pedal With Torque Specification

Courtesy of SUZUKI OF AMERICA CORP.

NOTE: The clevis pin may be installed from either direction.
