Front Seat Heater Control Module Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

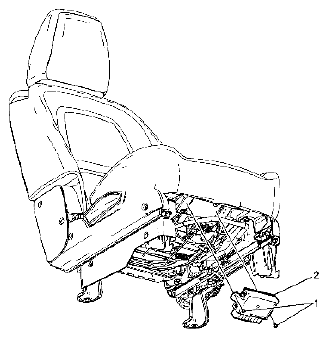

Fig 1: Identifying Front Seat Heater Control Module & Screws

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedure Remove the front passenger seat. Refer to FRONT SEAT REPLACEMENT - BUCKET .
1	Front Seat Heater Module Screw (Qty: 2) CAUTION: Refer to FASTENER NOTICE . Tightening torque 2 N.m (18 lb in)
2	Front Seat Heater Module Tip: Disconnect the electrical connector.
