Headlamp Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

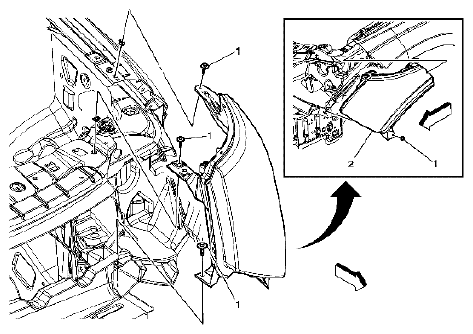

Fig 1: Identifying Headlamp Bolts

Courtesy of SUZUKI OF AMERICA CORP.

HEADLAMP REPLACEMENT REFERENCE

Callout	Component Name
Preliminary Procedures Open the hood. Remove the front bumper fascia. Refer to FRONT BUMPER FASCIA REPLACEMENT .
1	Headlamp Bolts (Qty: 4) CAUTION: Refer to FASTENER NOTICE . Tightening torque Tighten the bolts in the mandatory sequence as shown to 9 N.m (80 lb in) Tip: Access the lower outer bolt from inside the wheelhouse liner and disconnect the electrical connector.
