Theft Deterrent Module Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

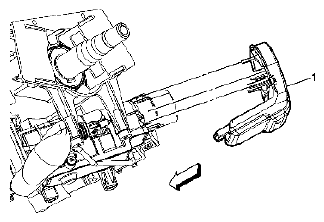

Fig 1: Theft Deterrent Module And Placement

Courtesy of SUZUKI OF AMERICA CORP.

THEFT DETERRENT MODULE REPLACEMENT REFERENCE

Callout	Component Name
Preliminary Procedure Disable the SIR. Refer to SIR DISABLING AND ENABLING . Remove the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT . Program the theft deterrent control module after replacement. Refer to CONTROL MODULE REFERENCES .
1	Module Assembly, Theft Deterrent Tip: Pull out away from ignition cylinder and disconnect the electrical connector.
