Wiper Arm Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

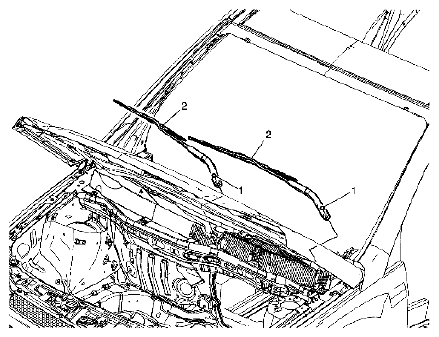

Fig 1: Identifying Windshield Wiper Arm Assembly

Courtesy of SUZUKI OF AMERICA CORP.

WIPER ARM TABLE

Callout	Component Name
Preliminary Procedure Open the hood in order to access the wiper arm assemblies.
1	Windshield Washer Wiper Arm Nut (Qty: 2) CAUTION: Refer to FASTENER NOTICE . Tightening torque 28 N.m (21 lb ft)
2	Windshield Washer Wiper Arm Assembly Position wiper blade assembly at the dot in lower portion of windshield blackout strip on driver side of vehicle. Position wiper blade assembly at the dot in windshield pillar portion of windshield blackout strip on passenger side of vehicle.
