Wipers/Washer Switch Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

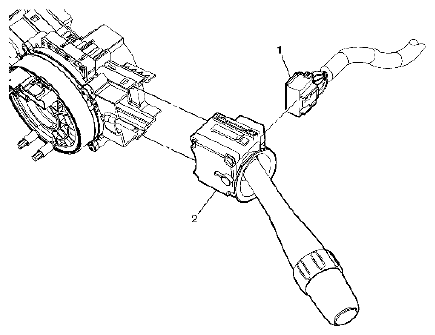

Fig 1: Identifying Wipers & Washer Switch Electrical Connector

Courtesy of SUZUKI OF AMERICA CORP.

WINDSHIELD, WIPERS AND WASHER PROCEDURES TABLE

Callout	Component Name
Preliminary Procedures Remove the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT .
1	Wipers/Washer Switch Electrical Connector
2	Wipers/Washer Switch Procedure Depress the locking tabs to remove the wipers/washer switch.
