Rear Differential Clutch Control Module Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

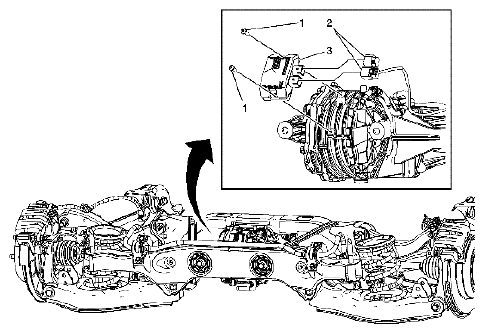

Fig 1: Identifying Rear Differential Clutch Control Assembly

Courtesy of SUZUKI OF AMERICA CORP.

PROCEDURE TABLE

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE . Remove the spare tire. Remove the muffler assembly. Refer to REMOVAL PROCEDURE . Remove the rear differential assembly. Refer to REMOVAL PROCEDURE .
1	Screws, Clutch Drum Control Module (Qty: 2). CAUTION: Refer to FASTENER NOTICE . Tightening torque Tighten screws 10 N.m (89 lb in).
2	Connectors, Clutch Drum Control Module.
3	Module, Clutch Drum Control. Procedure Differential Clutch Control Module Calibration. Refer to REAR DIFFERENTIAL CLUTCH CONTROL MODULE CALIBRATION .
