Amplifier Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

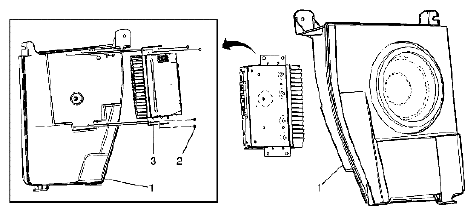

Fig 1: Identifying Radio Rear Compartment Speaker, Amplifier Assembly & Screws

Courtesy of SUZUKI OF AMERICA CORP.

AMPLIFIER REPLACEMENT REFERENCE

Callout	Component Name
Preliminary Procedures Remove the right rear quarter lower trim panel. Refer to REAR QUARTER LOWER TRIM PANEL REPLACEMENT .
1	Radio Rear Compartment Speaker Refer to RADIO REAR SPEAKER REPLACEMENT .
2	Amplifier Screw (Qty: 4) CAUTION: Refer to FASTENER NOTICE . Tightening torque 3 N.m (276 lb in)
3	Amplifier Assembly Procedure Disconnect the electrical connector.
