Radio Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

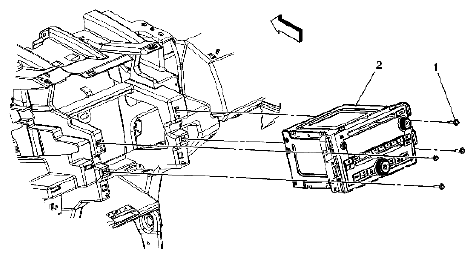

Fig 1: Identifying Radio Assembly & Screws

Courtesy of SUZUKI OF AMERICA CORP.

RADIO REPLACEMENT REFERENCE

Callout	Component Name
Preliminary Procedure Remove the instrument panel accessory trim plate. Refer to INSTRUMENT PANEL ACCESSORY TRIM PLATE REPLACEMENT .
1	Radio Screw (Qty: 4) Tightening torque 2 N.m (18 lb in)
2	Radio Assembly Disconnect the antenna and electrical connectors from the rear of the radio. Reprogram the radio after replacement. Refer to CONTROL MODULE REFERENCES .
