Steering Wheel Control Switch Assembly Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

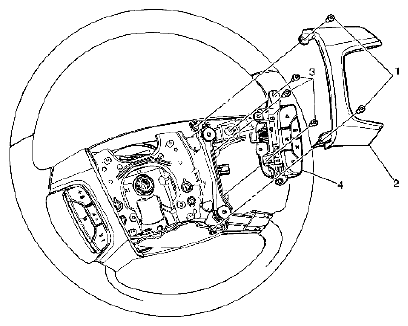

Fig 1: Identifying Steering Wheel Control Switch Assembly Components

Courtesy of SUZUKI OF AMERICA CORP.

STEERING WHEEL CONTROL SWITCH ASSEMBLY REPLACEMENT REFERENCE

Callout	Component Name
WARNING: Refer to SIR CAUTION . Preliminary ProcedureRemove the inflatable restraint steering wheel module. Refer to INFLATABLE RESTRAINT STEERING WHEEL MODULE REPLACEMENT .Tip: Right hand steering wheel control switch shown. Left hand similar.
1	Steering Wheel Trim Cover Bolt (Qty: 4)
2	Steering Wheel Trim Cover (Qty: 2)
3	Steering Wheel Control Switch Assembly Screw (Qty: 6) Tip: DO NOT over tighten the steering wheel control switch screws or damage to the switch(s) or steering wheel covers may occur.
4	Steering Wheel Control Switch Assembly (Qty: 2) Tip: Make sure the steering wheel control switch(s) are properly seated to the steering wheel shroud during installation.
