Auxiliary Blower Control Module Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

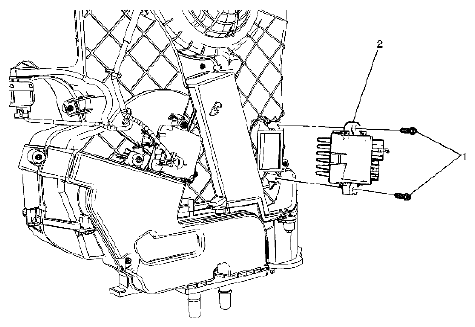

Fig 1: Identifying Blower Control Module & Screws

Courtesy of SUZUKI OF AMERICA CORP.

CALLOUT COMPONENT NAME TABLE

Callout	Component Name
Preliminary Procedure Remove the left rear trim panel. Refer to REAR QUARTER LOWER TRIM PANEL REPLACEMENT . Remove the auxiliary HVAC module mounting bolts (Qty 3). Refer to AUX. HVAC MODULE REPLACEMENT Reposition auxiliary HVAC module inward to gain access to the blower control module. Disconnect electrical connection. Tip: The blower control module is mounted on the outboard side of the module.
1	Blower control module screws (Qty 2). CAUTION: Refer to FASTENER NOTICE . Tightening torque 1.5 N.m (13 lb in)
2	Blower control module.
